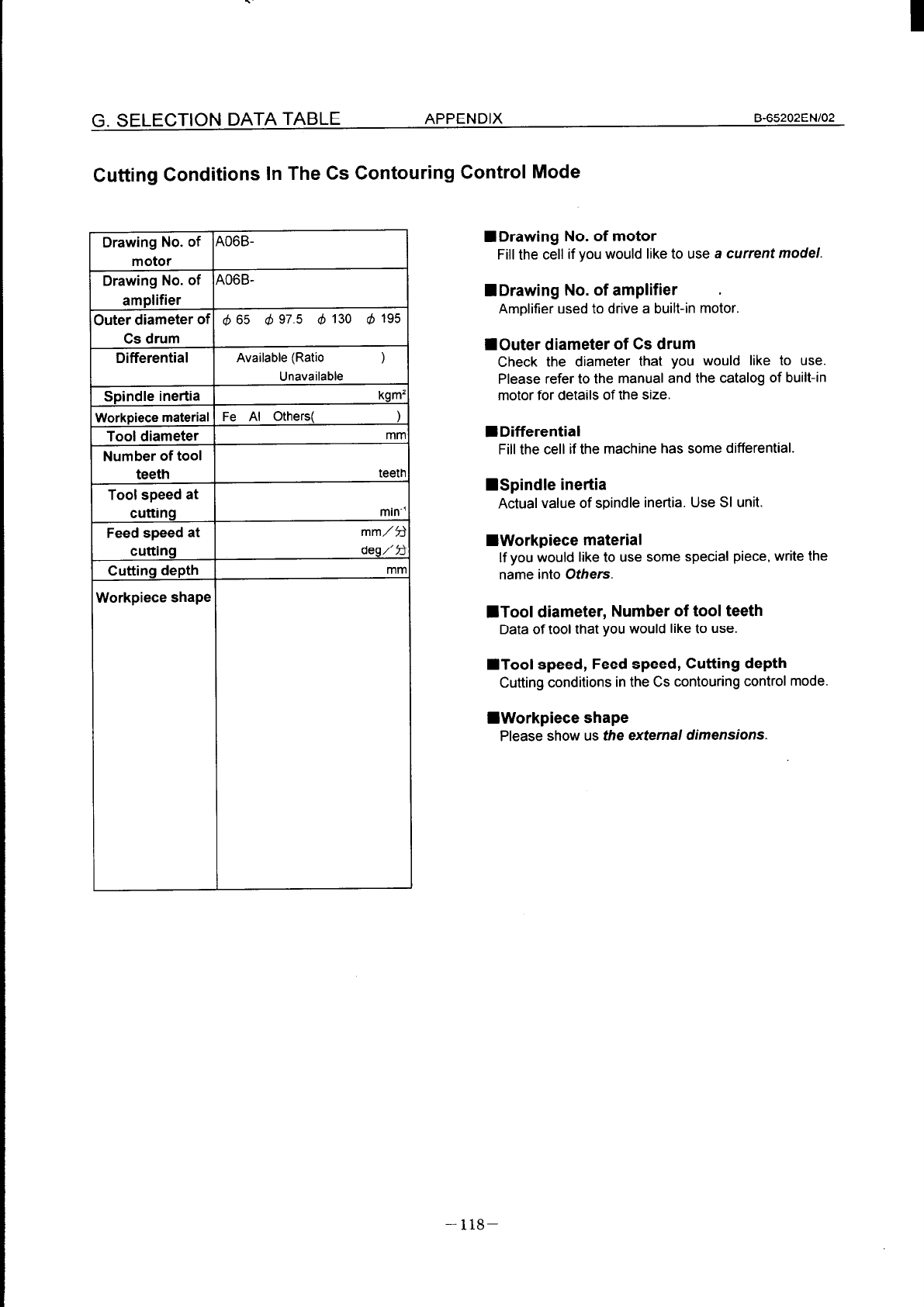

G. SELECTION DATA TABLE
B-65202EN102
Conditions Control Mode
No. of A06B-
motor
No. of A06B-
amplifier
luter diameter of d 65 & 97.5 d 130 d 195
Cs drum
Differential
Available (Ratio
1
Unavailable
Spindle inertia
kgm
Vorkpiece material Fe Al Others(
)
Tool diameter
mn
Number of tool
teeth
teetl
Tool speed at
cutting
min
Feed speed at
mm/5
cutting deg/%
Cutting depth
mn
Yorkpiece shape
n Drawing No. of motor
Fill the cell if you would like to use a current model.
HDrawing No. of amplifier
.
Amplifier used to drive a built-in motor.
MOuter diameter of Cs drum
Check the diameter that you would like to use.
Please refer to the manual and the catalog of built-in
motor for details of the size.
n Differential
Fill the cell if the machine has some differential.
n Spindle inertia
Actual value of spindle inertia. Use SI unit.
WWorkpiece material
If you would like to use some special piece, write the
name into Others.
n Tool diameter, Number of tool teeth
Data of tool that you would like to use.
n Tool speed, Feed speed, Cutting depth
Cutting conditions in the Cs contouring control mode.
HWorkpiece shape
Please show us the external dimensions.
