FANUC Series 16i/18i-TB Batch CNC Data Input/Output Function with a Memory Card Specifications Additional Manual Page 11

Additional Manual
Dec.09,02 T.Nakazato
EDIT
Apprv.DESIG.
11
／
12
DATE DESIG.
DESCRIPTION
DATE
FANUC Series 16i
/
18i-TB
Batch CNC data input/output function
with a memory card
Ａ
-76509
TITLE
DRAW.NO.
SHEET
２．５
Outputting custom macro common variables
All custom macro common variables can be output using the ALL IO screen in one operation.
But input can not be executed about custom macro common variables.
The file is registrated for the path-1 as the name is MACROVAR.DAT. And the name for the
path-2 is MACROVAR.P-2, the name for the path-3 is MACROVAR.P-3. The names can not
be changed.
２．５．１ Output operation of
custom macro common variables

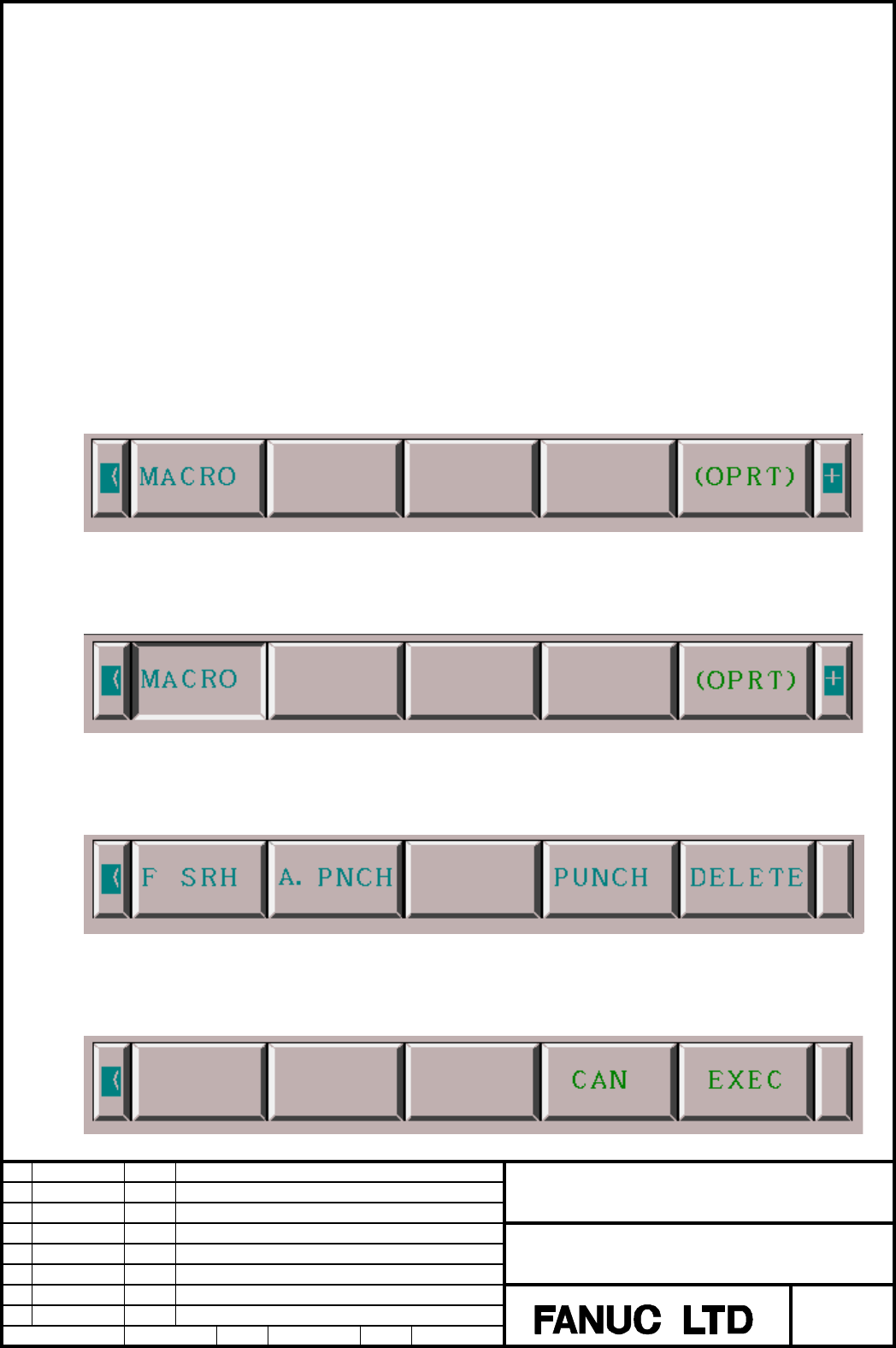

１
Press soft key [+] on the screen of section 3.1 6.
２ After pressing soft key [+] , the following soft keys are displayed, then press soft key
[MACRO]
３ After pressing soft key [MACRO] , the following soft keys are displayed, then press soft key
[(OPRT)].
４ After pressing soft key [(OPRT)] , the following soft keys are displayed, then press soft key
[A.PNCH].
５ After pressing soft key [A.PNCH] , the following soft keys are displayed, then press soft key
[EXEC]
