FANUC Series 16i/18i Additional Manual Page 22
Additional Manual
13283 Distance and direction from the rotation center of the real rotary axis (C) to
the machine origin point of hypothetical axis (X) (Xc)
[Data type] 2 word
[Unit of data]
increment system IS-B IS-C Unit
Millimeter machine 0.001 0.0001 Mm
Inch machine 0.0001 0.00001 Inch
[Valid data range] -99999999 to +99999999
This parameter is set the distance between rotation center of real rotary axis C and
the machine origin point of hypothetical axis X, and the direction from the rotation
center of real rotary axis C to the machine origin point of hypothetical axis X for
establishing the machine origin point of hypothetical axis X.
If the machine origin point exists on the left side against the rotation center, the minus
value should be set.
If the machine origin point exists on right side against the rotation center, the plus
value should be set.

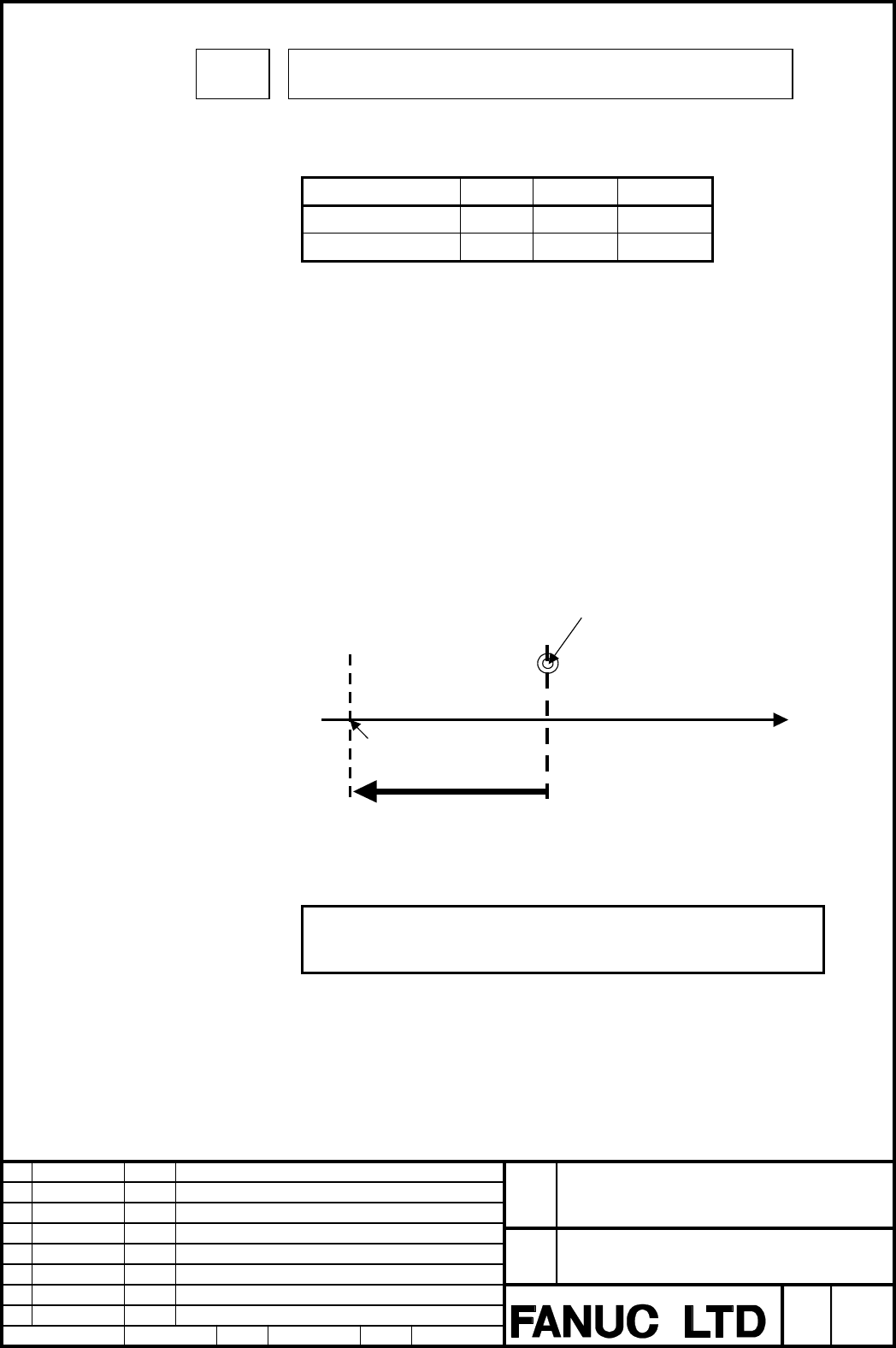

Xc in the following figure is set into this parameter.
Hypothetical machine coordinate of X
Machine origin point of X
Rotation center
Xc
(Xc is set into pamaraeter No.13283.
In this case , Xc value is minus value)
NOTE
When this parameter is changed, the power must be turned off.
A-79306E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i /18i –MB, 18i-MB5
Hypothetical linear axis control
Specifications
Dec.11.2003
T.Horie H.Kouzai
22
/25
02
Jan.30.2004
N.Aizawa
A
dd or Change at 2) part H.Kouzai
A
dd or Change at 3) part H.Kouzai
N.Aizawa
Dec.20.2004
03
