FANUC Series 30i/31i-A Specifications of Path Table Operation Workpiece Coordinate Command Additional Manual Page 15
Additional Manual
A-90078E
*ABSM<Gn006#2>=0
Manual absolute on
2.0
4.0
6.0
0.0

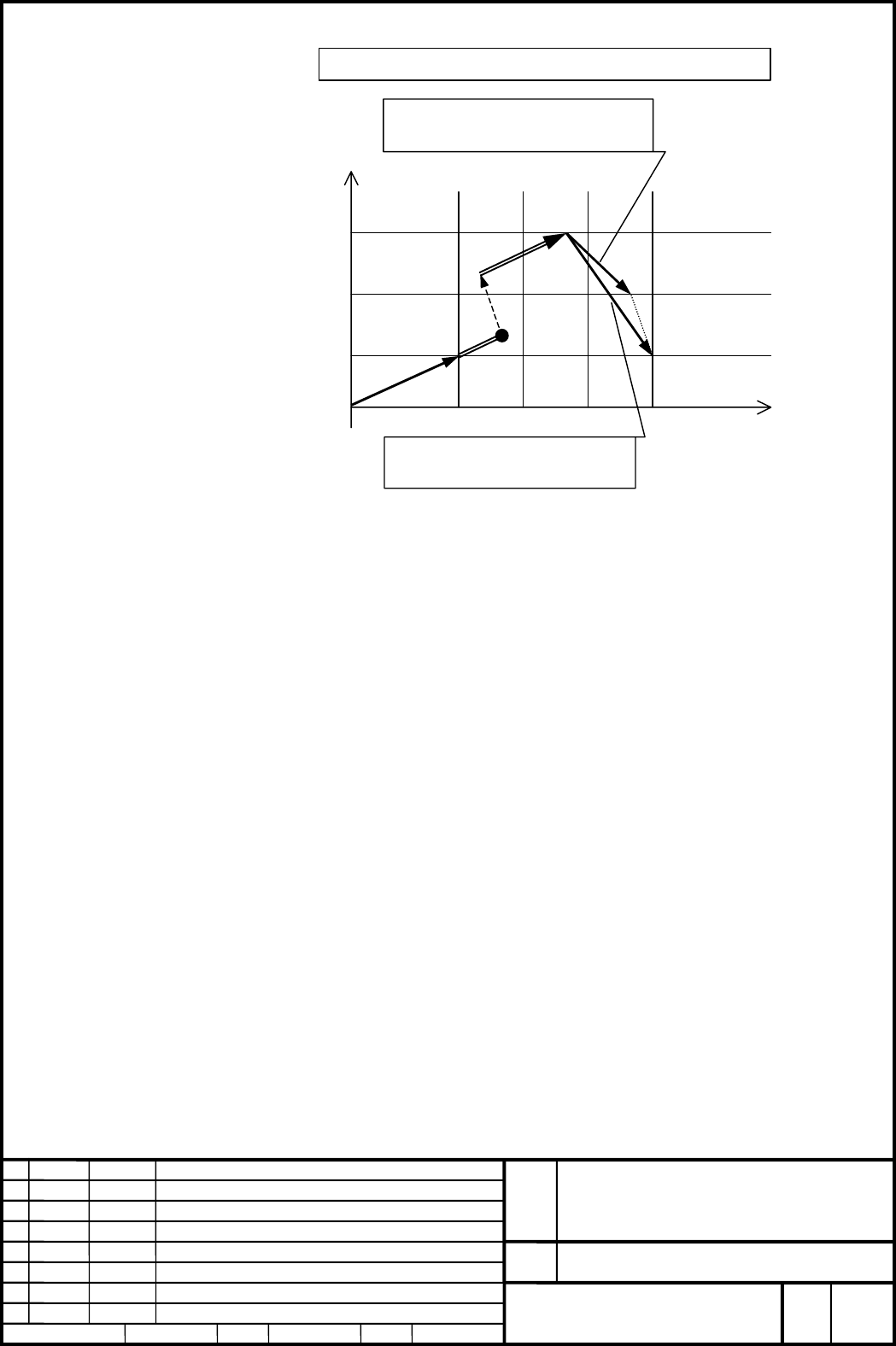

Manual operation interrupts during Path Table Operation block:
X
Z
*ABSM<Gn006#2>=1
Manual absolute off
2.0 4.03.0 5.0
The axis returns to the programmed path at the first absolute command block
after the path table operation.
Machine lock
In case that parameter PCA (No.11104#0) is 1, Path Table Operation can
execute when all-axis machine lock signal MLK<Gn044#1> or each-axis
machine lock signals MLK1 to MLK8<Gn108> are set to "1".
In case that parameter PCA (No.11104#0) is 0, Path Table Operation in all
paths (heads) stop when all-axis machine lock signal MLK<Gn044#1> or one
of each-axis machine lock signals MLK1 to MLK8<Gn108> is set to "1".
Interlock
When one axes controlled by the path table operation becomes interlock
condition, the Path Table Operation in all paths (heads) stop.
Inch input /
mm input
P/S alarm No.452(dist_alm_no=34) occurs if the input unit at executing Path
Table Operation was different from the input unit at converting Path Table
program.
Sheet
Title
Draw
No.
FANUC Series 30i/31i
Specifications of Path Table Operation
Workpiece coordinate command
FANUC LTD
15/17
Ed. Date Design Description
Date Jun.06.’5 Desig. T.Watanabe Apprv. Y.Takeuchi
