9. CONNECTION TO FANUC I/O Link

131

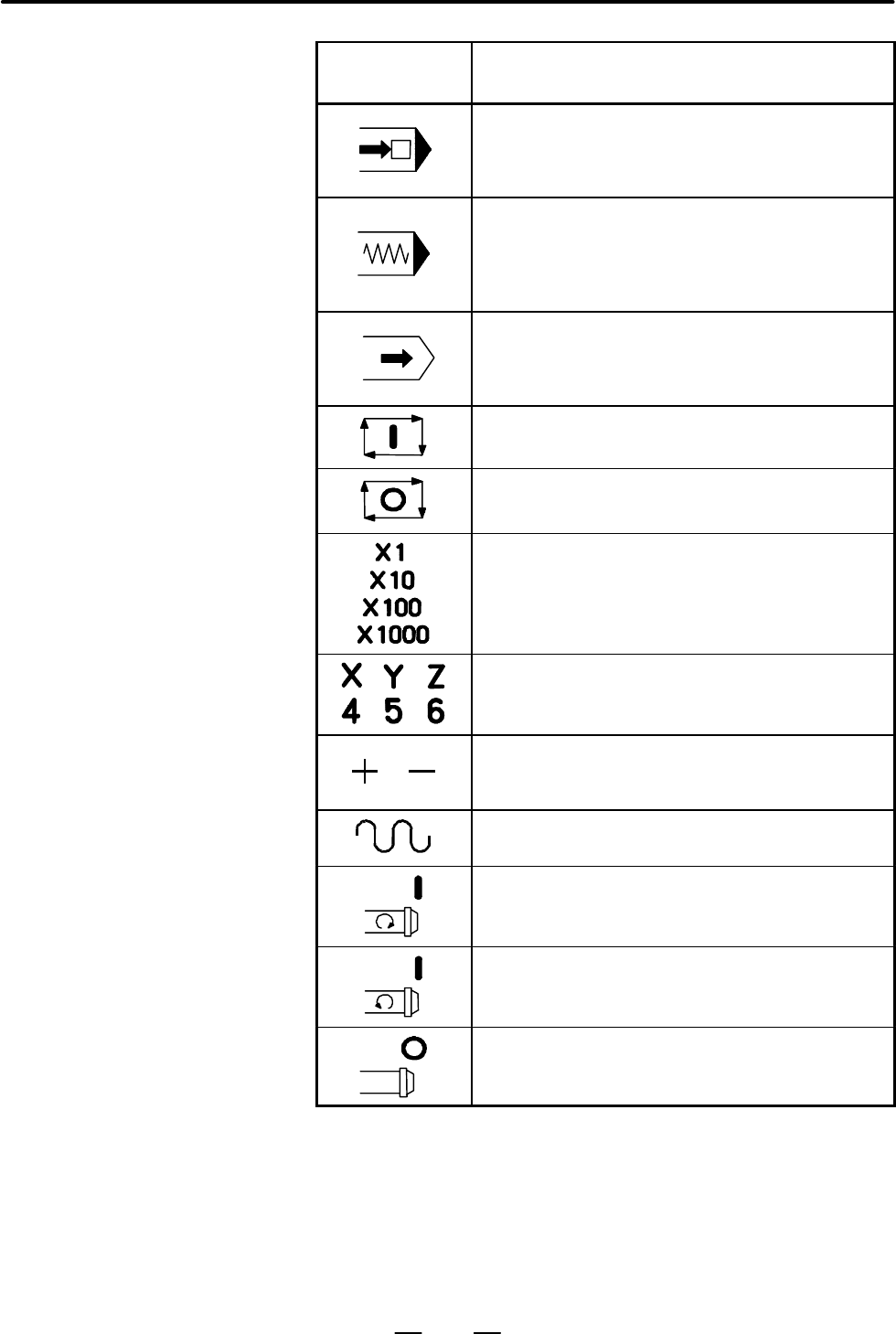

Symbol

indication

Meaning of key

Program restart; A program may be restart at a block by

specifying the sequence number of the block, after au-

tomatic operation is stopped because of a broken tool

or for holidays.

Dryrun; Sets the axis feedrate to the jog feedrate

instead of a programmed feedrate when automatic op-

eration is performed by setting this button to on. This

function is used to check only the movement of the tool

when no workpiece is mounted.

Machine lock; Updates only position display on the

screen without making any axis movement, when auto-

matic operation is performed by setting this button to on.

This function is used to check a program.

Cycle start; Start automatic operation.

Cycle stop; Stops automatic operation.

Manual handle feed magnification:

Magnification for manual handle feed.

Magnified by 1, 10, 100, 1000.

Manual feed axis selection; Axes are selected, when

these buttons are set to on in the jog feed mode or step

feed mode.

Manual feed operation; Performs movement along se-

lected axes when these buttons are set on in the jog

feed mode or step feed mode.

Traverse; Performs jog feed at rapid traverse rate when

this button is set to on.

Positive spindle rotation direction; Rotates the spindle

motor in the positive direction.

Negative spindle rotation direction; Rotates the spindle

motor in the negative direction.

Spindle stop; Stops the spindle motor rotation.
