Series 0i - Model A Connection manual (Hardware) Page 179

Connection manual (Hardware)

Page of 276

/ 276

B–63503EN/02

9. CONNECTION TO FANUC I/O Link

167

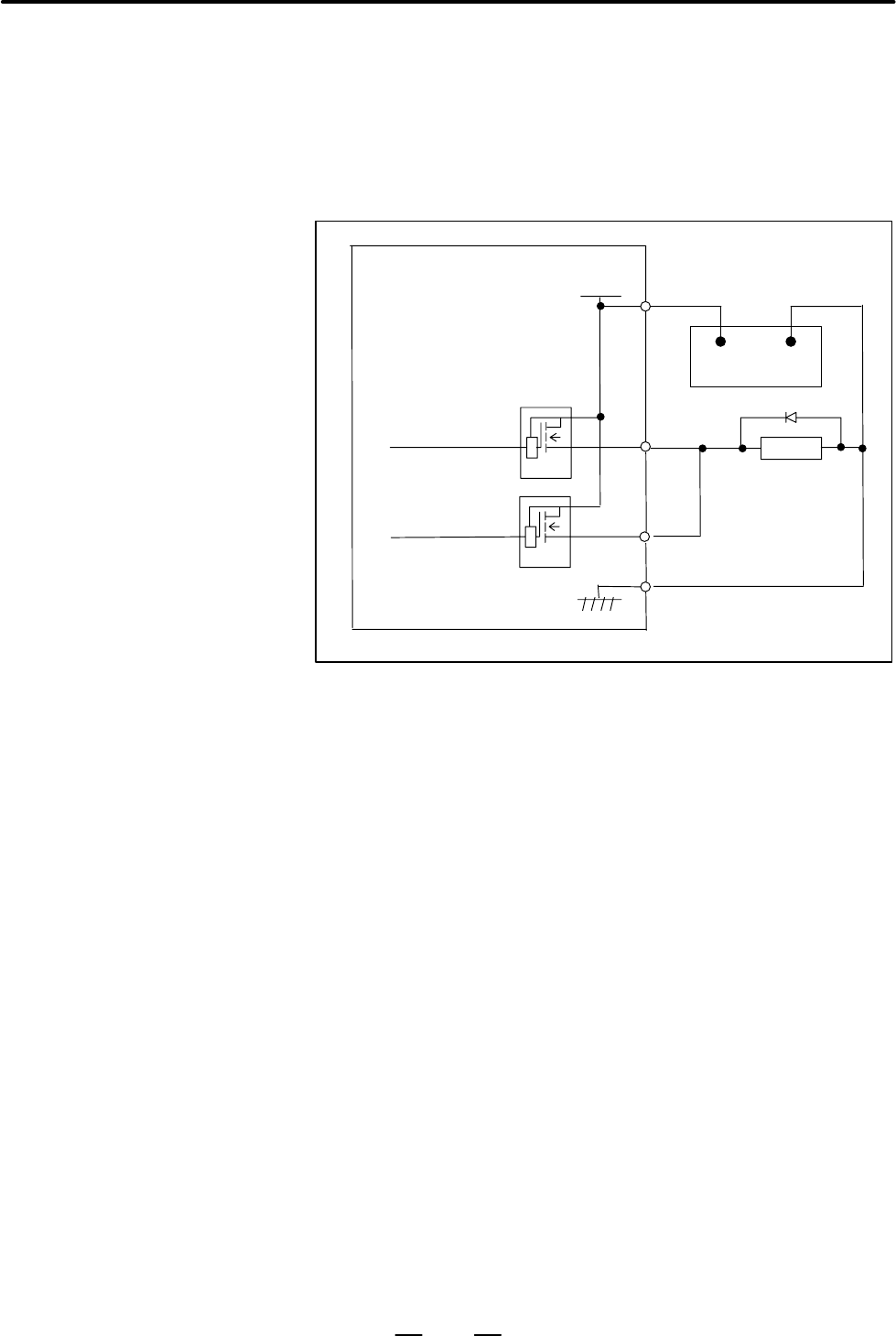

The DO load current can be doubled by connecting two DO points in

parallel and turning them on and off simultaneously in sequence, as

shown in the figure below. The maximum load current per DI point is 200

mA. Connecting two DO points in parallel and turning them on at the

same time produces a current of 400 mA. Note that, however, when two

DO points are connected in parallel, the leakage current also doubles

when they are off (max. 40 mA).

DOCOM

CE56(A24, B24, A25, B25)

CE57(A24, B24, A25, B25)

+24V 0V

+24 stabilized

power supply

Relay

The DO driver of the I/O module is capable of detecting an overcurrent

and measuring its own temperature. If an accident, such as the connecting

of the cable to ground, causes an abnormal increase in the load current or

in the driver temperature, a protection circuit, which is provided for each

DO driver (1 byte), is activated and keeps the DO signal for the relevant

1 byte in the OFF state until the cause of the problem is eliminated. Even

if this occurs, the CNC and I/O module continue operating. The DI

address (Xm+15) identifies the DO driver which has detected the alarm.

The following table shows the correspondence between the DI address

(Xm+15) bits and the DO addresses. Bit value “1” indicates that the

corresponding DO driver has detected an alarm. The contents of the

Xm+15 area can be checked by using the DGN screen of the CNC or by

performing alarm processing for the area in advance by using Ladder.

This helps alarm detection and recovery.

Parallel DO (output

signal) connection

DO (output signal) alarm

detection
