Series 0i - Model A Connection manual (Hardware) Page 26

Connection manual (Hardware)
B–63503EN/02
3. INSTALLATION
14
Group ActionSignal line
Cable between the CNC and servo
amplifier
Bind the cables in group C sepa-
rately from group A, or cover
Cable for position and velocity
feedback
group C with an electromagnet-
ic shield.
Separate group C as far from
Cable between the CNC and
spindle amplifier
Group B as possible.
Be sure to perfrom shield pro-
Cable for the position coder
cessing in Subsec. 3.5.5.
C
Cable for the manual pulse gener-
ator
Cable between the CNC and the
CRT/MDI
RS–232–C and RS–422 interface
cable
Cable for the battery
Other cables to be covered with the
shield
NOTE
1 The groups must be 10 cm or more apart from one another
when binding the cables in each group.
2 The electromagnetic shield refers to shielding between
groups with grounded steel plates.

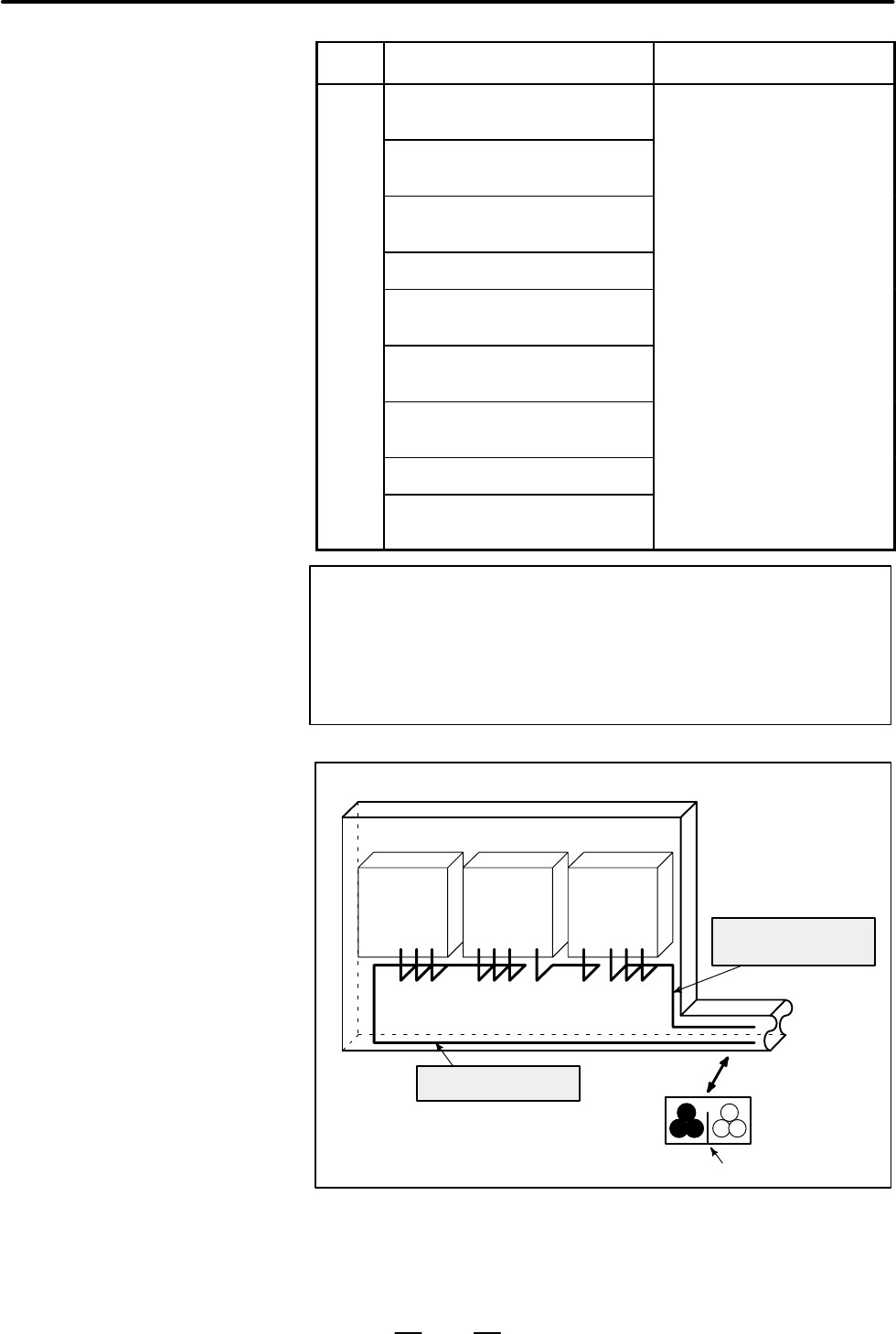

Cable of group B, C
Cable of group A
Cabinet
Spindle
amp.
Servo
amp.
Control
unit
Duct
To operator’s
panel,
motor, etc.
Section
Group A Group B, C
Cover
