Series 16i/160i-LB Descriptions Page 43

Descriptions
B-63662EN/01 8.LASER OUTPUT CONTROL
- 37 -

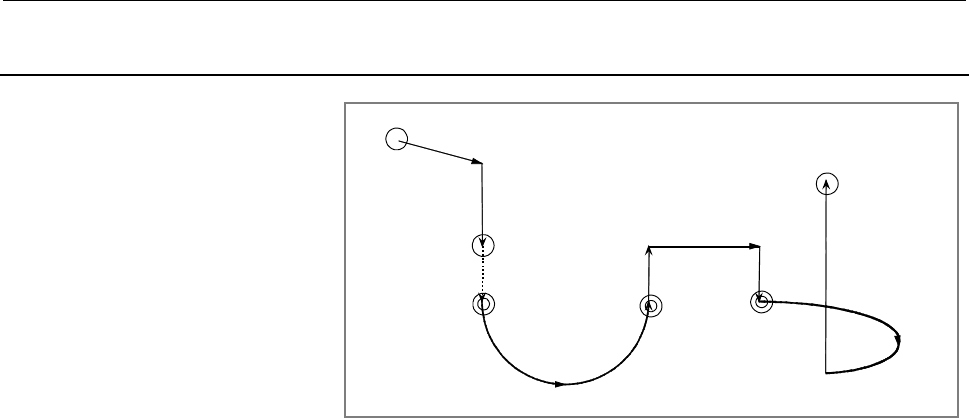

8.1.8 Laser Machining Program Example
S
a1
a2
a3
a5
b1
E
b3
b2a4
G00X_ Y_ ; : Positioning at a1 from S
G00Z_ ; : Positioning at a2
G13Pxxxx ; : Start tracing control.
Approach a3. When approach
is completed, the next block is
executed.
G32Px Txxx Rxxx ; : Open the shutter, and activate
the assist gas.
G24SxxxxPxxxxQxxxRxxxxx ; : Piercing
G03X_ Y_ R_ SxxxxPxxxxQxxx ; : Cut the workpiece up to a4.
G14 ; : Stop tracing control.
G00Z_ ; : Positioning at a5
G00X_ Y_ ; : Positioning at b1
G13 ; : Start tracing control.
Approach b2.
G24Rxxxxx ; : Piercing
G02X_ Y_ R_ F_ SxxxxPxxxxQxxx ; : Cut the workpiece up to b3.
G32P0 ; : Close the shutter, and stop the
assist gas.
G14 ; : Stop tracing control.
G00Z_ ; M02 ; : Positioning at E
