8.CONNECTION PANEL SPECIFICATION B-63753EN/01
- 16 -
8 CONNECTION PANEL
In the case of detachable connection, connection panel is necessary
for connection/disconnection to/from cabinet. Connection panel is
prepared by MTB.
There are connector for connecting the handy machine operator’s
panel and detachable connection switch on the connection panel.

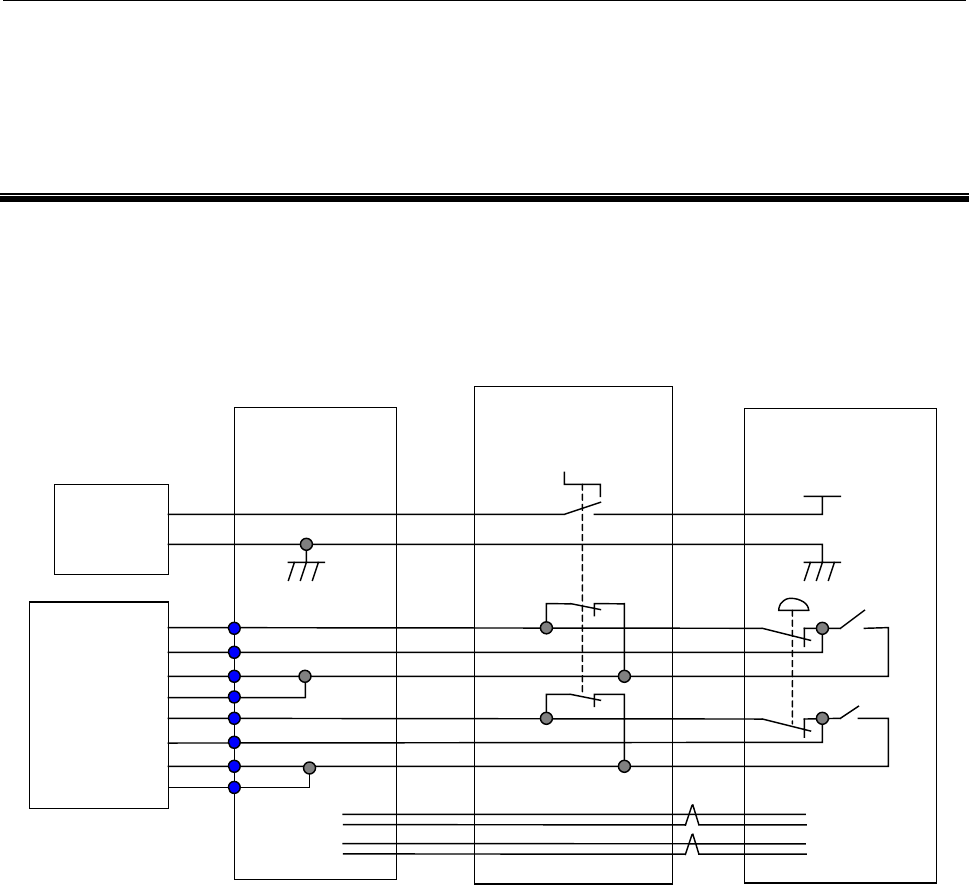

Handy machine
operator’s panel
24VDC
Power
Interface unit
Connection panel
Detachable
connection switch
24V
Emergency
stop circuit
Serial
signal
Serial
signal
1) Detachable connection switch
One A contact and two B contacts are necessary for detachable
connection switch. The switch must have a key. It is necessary
that the switch position cannot be changed without this key.
When the switch is off position,
• 24VDC power is not supplied to handy machine operator’s
panel.(Operation is not possible.)
• Emergency stop circuit on handy machine operator’s panel
is not available, because emergency stop line is bypassed on
the connection panel.
When the switch is on position,
• 24VDC power is supplied to handy machine operator’s
panel.(Operation is possible.)
• Emergency stop circuit on handy machine operator’s panel
is available, because emergency stop line is opened on the
connection panel.
