Handy Machine Operator Supplement to Manual Page 38

Supplement to Manual
11.FANUC STANDARD KEY SHEET A SPECIFICATION B-63753EN/01
- 30 -

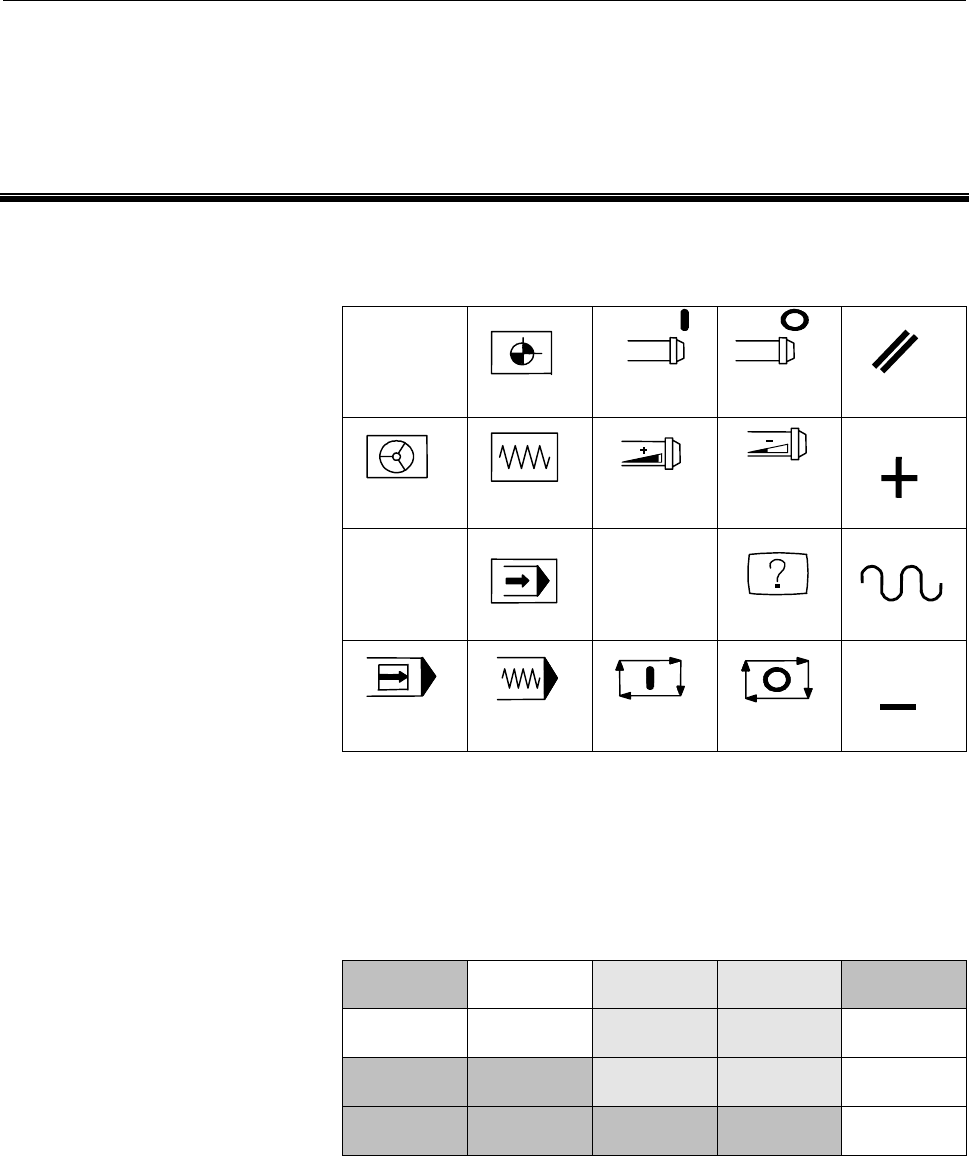

11 FANUC STANDARD KEY SHEET A
FANUC standard key sheet A is as follows. This key sheet is put on
the standard unit.
XYZ
456
REF
SPINDL
START
SPINDL
STOP RESET
HANDLE JOG
SPINDL
INC
SPINDL
DEC
×n
MEM
F1
FUNC
TION MESSAG RAPID
SINGLE
BLOCK
DRY
RUN
CYCLE
START
FEED
HOLD
When using this key sheet, memory operation “MEM”, manual handle
feed “HANDLE”, manual continuous feed “JOG” and manual
reference position return “REF” are possible. We suppose that the
following operation and display is done by PMC ladder program.
1) Memory operation
The keys to use are shaded in the following figure.
XYZ
456
REF
SPINDL
START
SPINDL
STOP
RESET
HANDLE JOG
SPINDL
INC
SPINDL
DEC
+
×n MEM
FUNC
TION
MESSAG RAPID
SINGLE
BLOCK
DRY
RUN
CYCLE
START
FEED
HOLD
-
• When the “MEM” key is pushed, mode is changed to MEM
operation mode.
• When the “CYCLE START” key is pushed, automatic
operation is started.
• When the “FEED HOLD” key is pushed, automatic
operation is stopped.
