Handy Machine Operator Supplement to Manual Page 48

Supplement to Manual
1.DETAILS CONNECTION (KEEPING AT ALL TIMES) CONNECTION B-63753EN/01
- 40 -

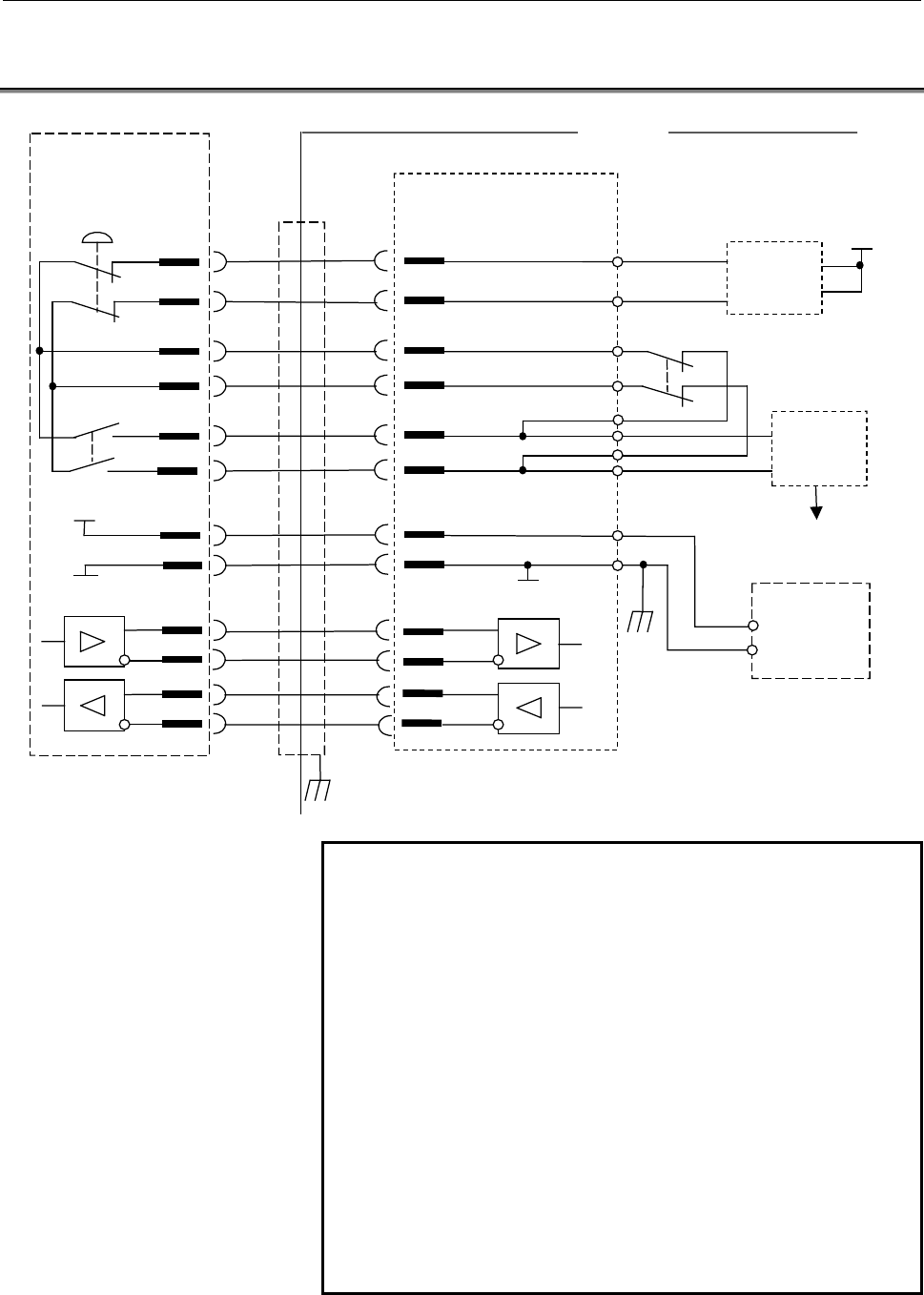

1.1 TOTAL CONNECTION
TNB(5)
TNB(2)
0V
24V
ESPI1
Shield
CA74(2)
CA74(4)
CA74(17)
CA74(12)
Emergency stop button
CA74(11)
Handy machine
operator’s panel
CA74(14)
CA74(13)
CA74(3)
CA74(1)
24V
To CNC and servo
amplifier
Interface unit
Note 1
ESPI1
SOUT
*SOUT
SIN
*SIN
Cabinet
CA74(18)
Enabling switch
ESPI2
EN1
EN2
ESPO1
ESPO2
Lower step
emergency
stop circuit
Upper step
emergency
stop circuit
CA74(19,20)
CA74(10)
24V
24V
0V
External 24VDC
p
ower su
pp
l
y
24V
0V
ESPI2
EN1
ESPO1
EN2
ESPO21
JD47(5)
JD47(6)
JD47(17)
JD47(19)
JD47(7)
JD47(8)
JD47(10)
JD47(12,14)
SIN
*SIN
SOUT
*SOUT
JD47(1)
JD47(2)
JD47(3)
JD47(4)
TNB(8)
TNB(4)
TNB(7)
TNB(3)
TNB(6)
TNB(1)
TNB(24V)
TNB(0V)
0V
0V
NOTE
1 This switch must be opened in automatically, when
the operator exposes himself to danger, example
the observation working in the protection cover of
cutting part, and the working in the fence for danger
area. So, the enable switch must be hold at the
middle position avoiding the emergency stop. When
the operator does not expose himself to danger, this
switch is closed. So he does not have to hold the
enable switch at the middle position.
And this switch may be the switch for the detection
of fusing and attaching on the main operator’s
panel. When there is the switch, the protection
cover and the fence does not have to open for the
testing of fusing and attaching of enable switch.
2 The details connection of JD1A, JD1B (I/O Link) of
interface unit is eliminated.
