1. Outline
This specification describes the interface between CNC and PC for executing
animation on Personal Computer (Hereafter, we call it PC). This animated function is
an application software of PC, and executed by graphic command from CNC via
CNC-PC interface area.

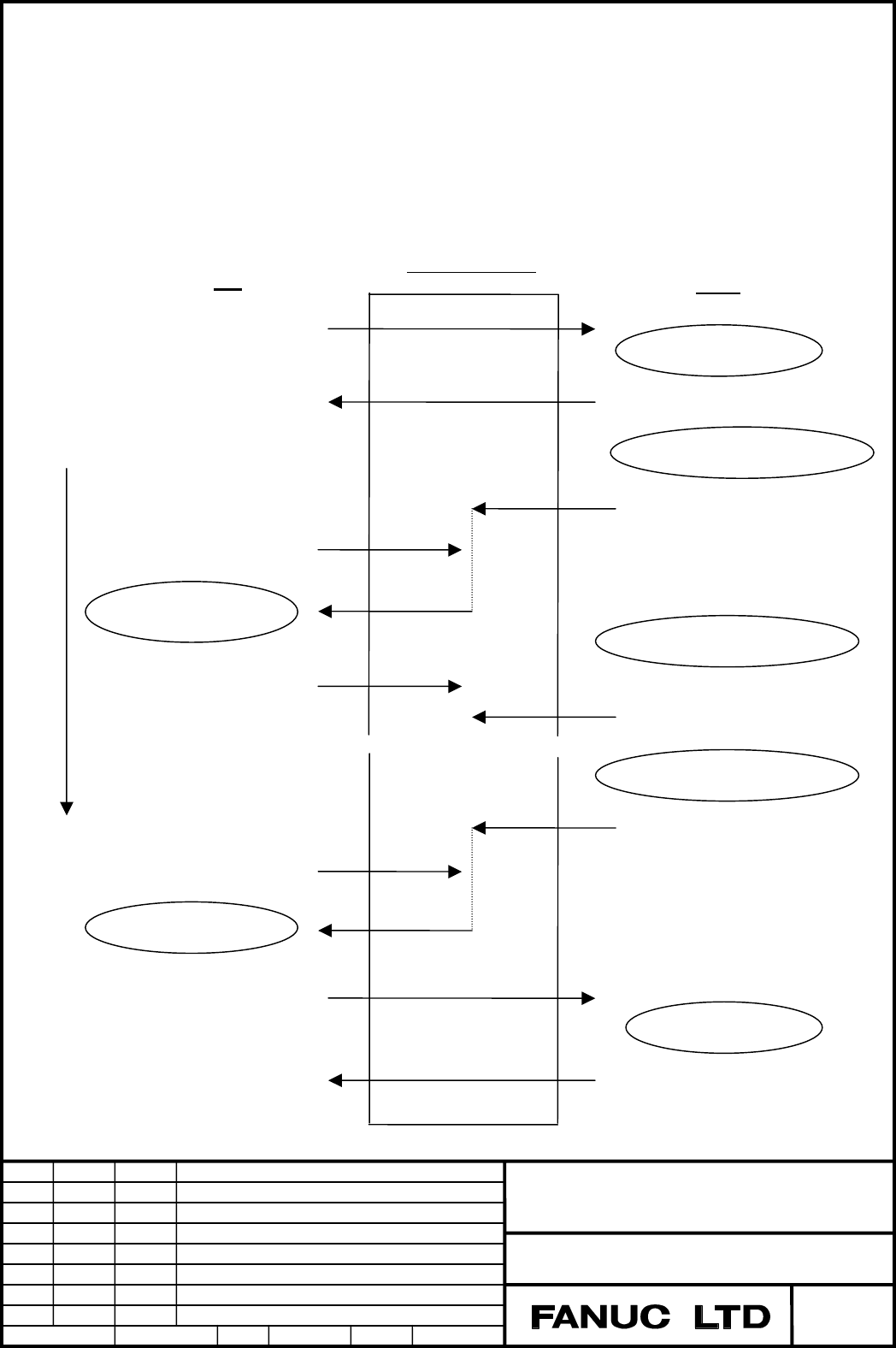

2. Process flow
PC
CNC
Check animation start
“cnc_startdyngrph”
Check animation stop
“cnc_stopdyngrph”
Watch cancel flag
“cnc_rdgrphcanflg”
Graphic commands read
“cnc_rdgrphcmd”
Graphic command read
“cnc_rdgrphcmd”
Read pointer update
“cnc_wrgrphcmdptr”
Graphic commands
read / draw
Instruction receive status
Instruction receive status
Execute start process
Execute end process
Graphic commands output
G
Graphic command I/F
raphic commands output
Generate Graphic commands
Data Window I/F
Data Window I/F
Graphic command I/F
Graphic command I/F
Graphic command I/F
Data Window I/F
Data Window I/F
Animation end code (BFh) output
Data Window I/F
Data Window I/F
Data Window I/F
“BF” code read
～ ～
Generate Graphic commands
Generate Graphic commands
Interface Area
EDIT DATE DSGN DESCRIPTION
RELEASE
DSGN RECOG
TITLE
DRAWING No.
Sheet
2/14
Specifications of
CNC-PC Graphic Interface
A-61184E
970702
Murata
02
03
04
971117
971216
980116
Murata
Murata
Samukawa
Samukawa
Samukawa
The parts of ② are added.
FC command is added. ③
Spec. of FC command is changed. ④
