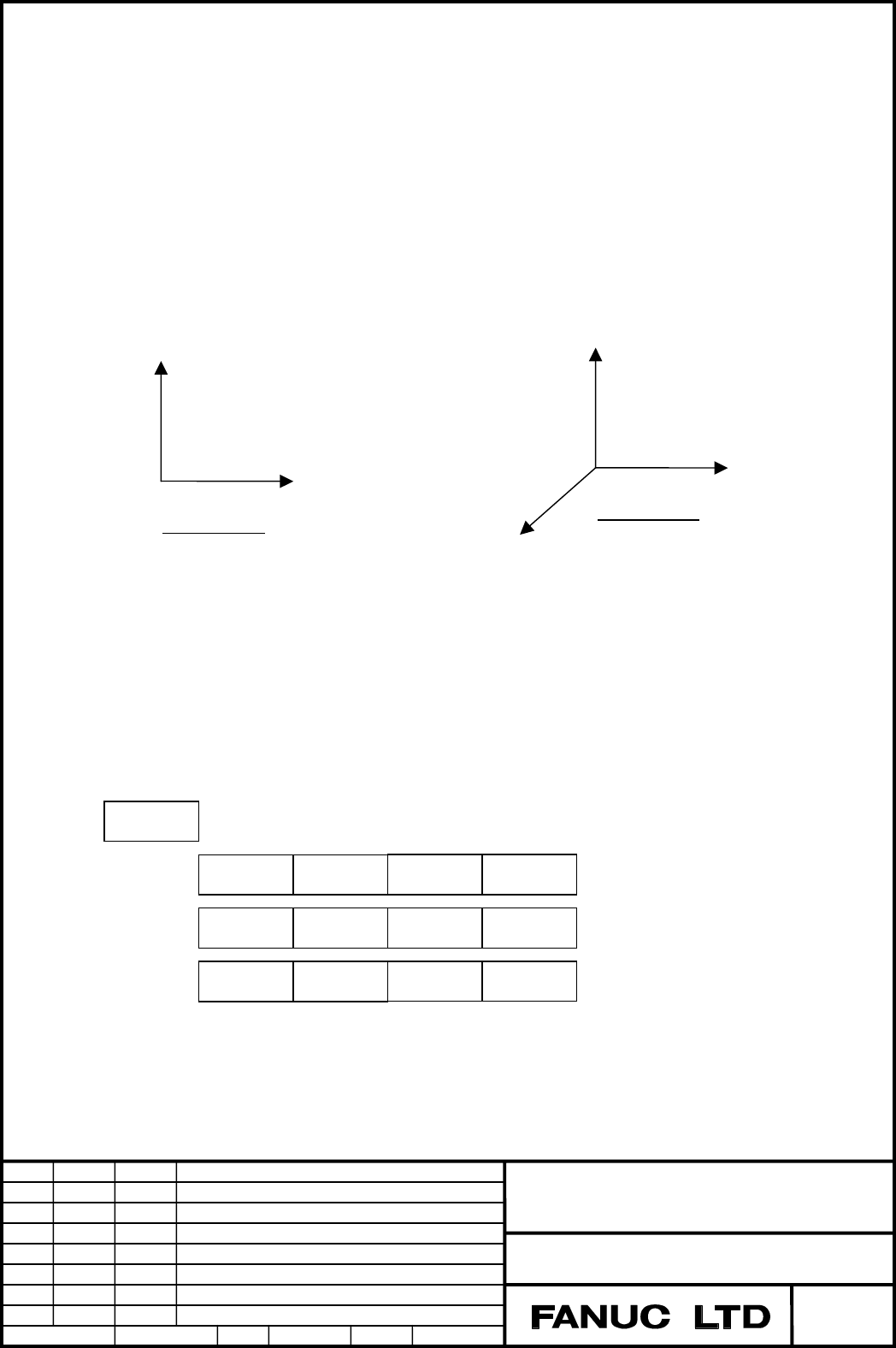

Axis select means correspondence of actual axis and display axis. If first axis select
is 2, actual first axis corresponds to display 2 axis. First/second/third axis select is not 0,
the display coordinate is 3-dimension. One of them is 0, the display coordinate is 2-
dimension.
@2～@4
The position of screen center which corresponds to the actual coordinate is
specified. The data is 4byte for each axis.
display 3 axis
display 1 axis
2-dimension
3-dimension
display 2 axis
display 2 axis
display 1 axis
7F command should be ignored. Because the coordinate of animation is set by
input data from Personal Computer. ②
(3) 81 command (Draw start position set)
This command informs the starting position of tool.
81
4 3 1 2
@1
8 7 5 6
@2
12 11 9 10
@3
@1 Draw start position of first axis
@2 Draw start position of second axis
@3 Draw start position of third axis
EDIT DATE DSGN DESCRIPTION
RELEASE
DSGN RECOG
TITLE
DRAWING No.
Sheet
8/14
Specifications of
CNC-PC Graphic Interface
A-61184E
970702
Murata
02
03
04
971117
971216
980116
Murata
Murata
Samukawa
Samukawa
Samukawa
The parts of ② are added.
FC command is added. ③
Spec. of FC command is changed. ④
