PROGRAMMING

B–63084EN/02

14. COMPENSATION FUNCTION

189

Parameter LVC (No.5003#6) can be set so that offset will not be cancelled

by pressing the reset key or by reset input.

When only a T code is specified in a block, the tool is moved by the wear

offset value without a move command. The movement is performed at

rapid traverse rate in the G00 mode . It is performed at feedrate in other

modes.

When a T code with offset number 0 or 00is specified by itself, movement

is performed to cancel the offset.

WARNING

When G50 X_Z_T_ ; is specified

Tool is not moved.

The coordinate system in which the coordinate value of the

tool position is (X,Z) is set. The tool position is obtained by

subtracting the wear offset value corresponding to the offset

number specified in the T code.

With the tool geometry offset, the work coordinate system is shifted by

the X, Y, and Z geometry offset amounts. Namely, the offset amount

corresponding to the number designated with the code is added to or

subtracted from the current position.

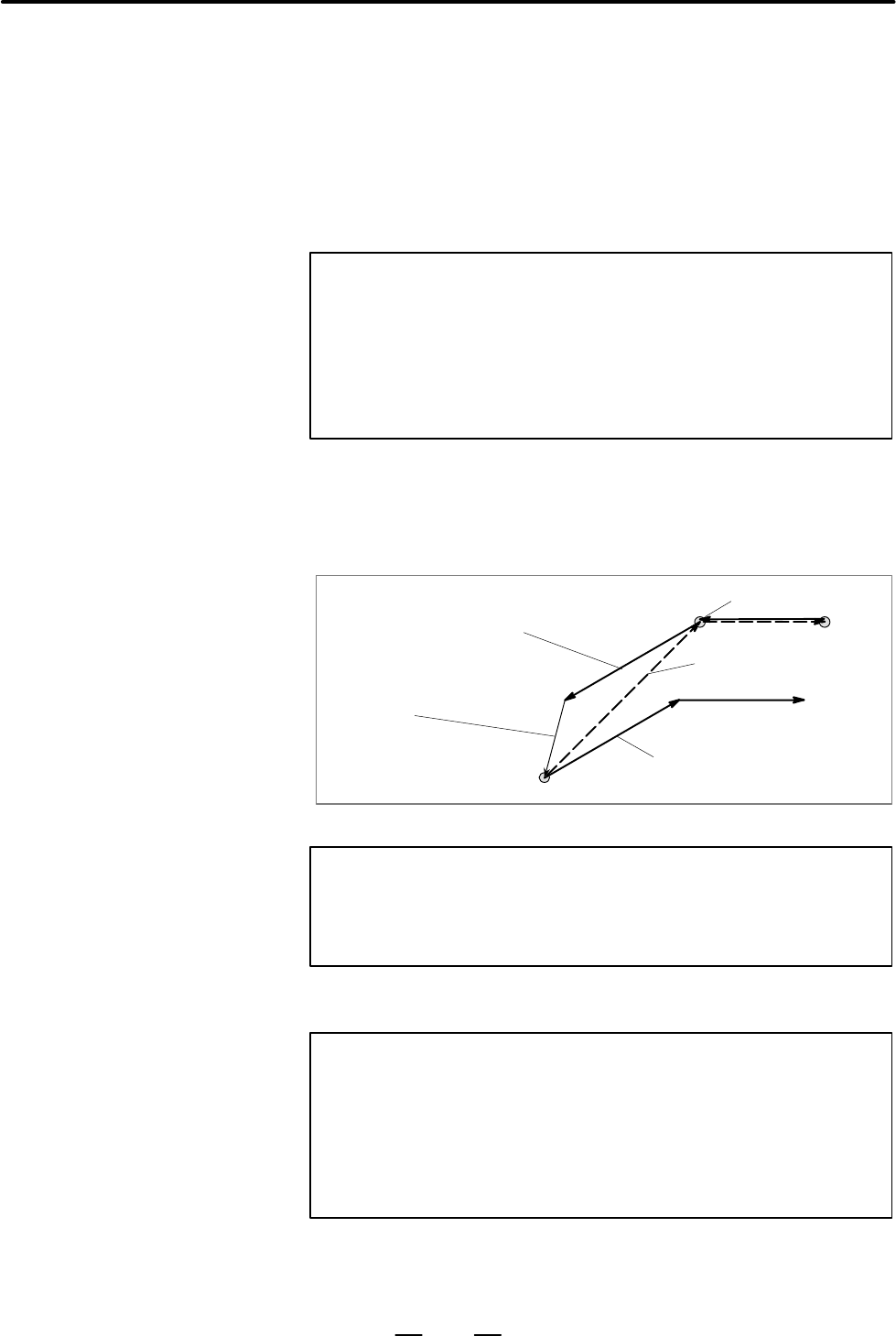

Programmed path after work

coordinate system shift

Absolute command

Tool path after offset

Programmed path before

work coordinate system shift

Offset amount by tool

geometry offset in X, Z

axis (offset vector

Fig. 14.1.5(c) Movement of tool geometry offset

NOTE

As well as wear offset, the tool can be compensated by

parameter setting LGT(No.5002#4) to add or subtract the

programmed end point of each block.

Specifying offset number 0, 00, or 0000 cancels offset.

NOTE

When the tool figure offset number having the same value

as the tool wear offset number is specified (parameter No.

5002#1 (LGN) is 0), a specified T code having offset number

2 does not cancel the tool figure offset. When parameter

No. 5002#5 (LGC) is set, however, offset number 0 can be

used to cancel the tool figure offset too.

When parameter TGC (No. 5003#7) is set to 1, a reset can also cancel the

tool figure offset.

D Only T code

D Tool geometry offset

D Offset cancel
