Series 21i/210i/210is - TA Operators manual Page 809

Operators manual
Sheet
Title
Draw
No.
Ed. Date Design Description
Date Jan.28.’04 Desig. S.Ibuki Apprv.
2/2
16i/18i/160i/180i/160is/180is-TA, 16i/18i/160i/180i-TB
21i/210i/210is-TA, 21i/210i-TB
OPERATOR’S MANUAL About the explanation o
f
“13.2.7 Multiple Thread Cutting Cycle(G76)”
B-63004EN/02-9, B-63524EN/01-3
B
-
63084EN/02
-
5, B
-
63604EN/01
-
3
At "Note"(page number is in the following table) in "Thread cutting cycle retract" in "13.2.7 Multiple Thread Cutting
Cycle(G76)", "5" is corrected and "6" is added.
No. Manual Page
B-63004EN/02 FANUC Series 16i/18i/160i/180i/160is/180is-TA
OPERATOR'S MANUAL
174
B-63524EN/01 FANUC Series 16i/18i/160i/180i-TB
OPERATOR'S MANUAL
179
B-63084EN/02 FANUC Series 21i/210i/210is-TA
OPERATOR'S MANUAL
156
B-63604EN/01 FANUC Series 21i/210i-TB
OPERATOR'S MANUAL
155
NOTE
5 The tool returns to the cycle start point (cutting depth Δd
n
) as soon as the feed hold status is entered
during thread cutting when the "Thread Cutting Cycle retract" option is used.(Δd
n
: cutting depth in nth
cut)

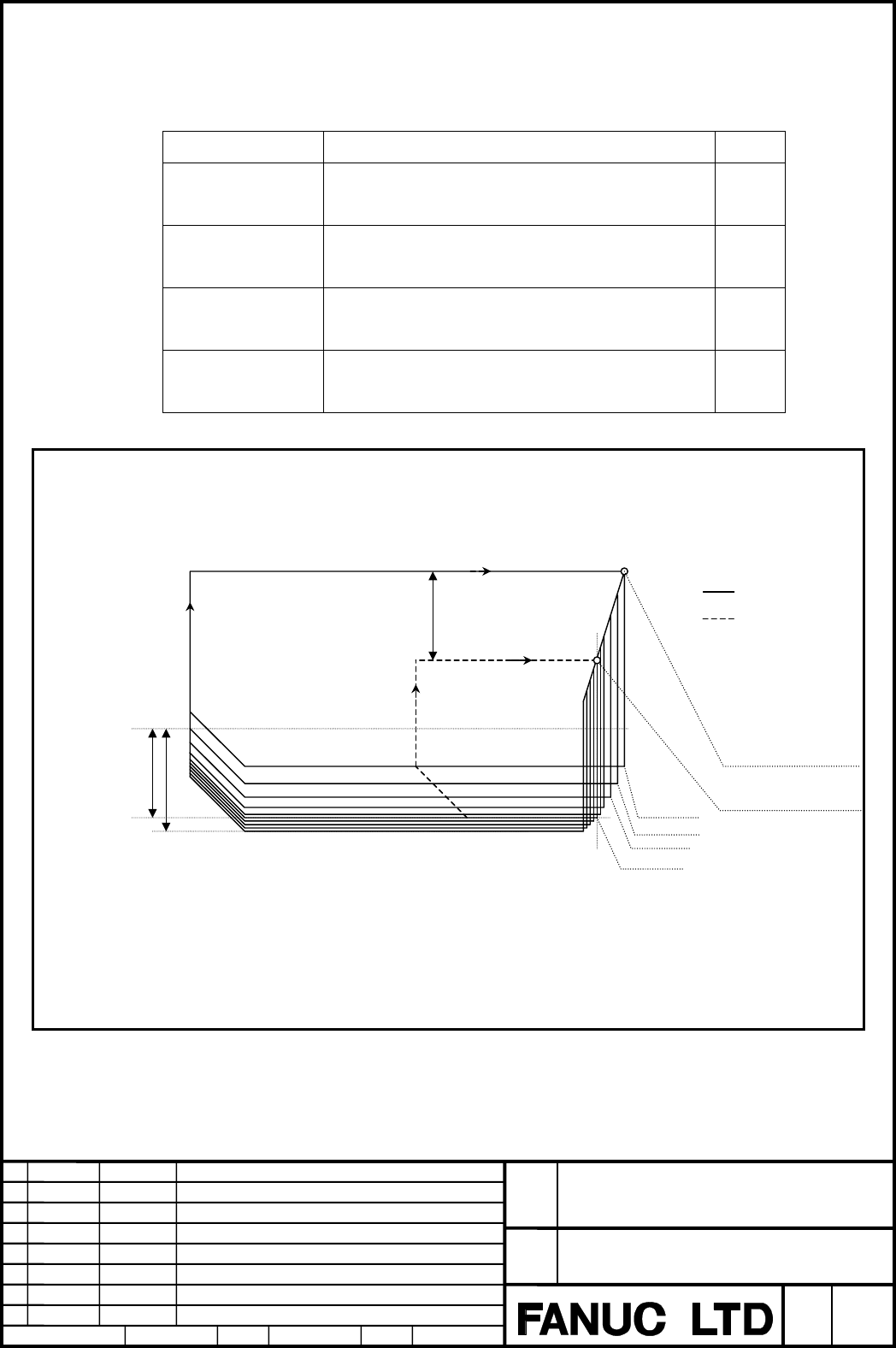

6 If start point of thread cutting cycle is close to a workpiece, tool may interfere with the workpiece during
retract cycle because of passing along the retract cycle route described at Note 5. Therefore start point
of thread cutting cycle must be at least k(height of thread) away from the top of thread when the
"Thread Cutting Cycle retract" option is used.
start point of thread
cutting cycle
2nd c
y
cle
3rd c
y
cle
Normal cycle
Retract cycle
k
start point of the nth
cycle
Δd
n
Δd
n
1st c
y
cle
nth c
y
cle
to
p
of thread
bottom of thread
