Series 21i/210i/210is - TA Operators manual Page 563

Operators manual
8. DATA INPUT/OUTPUT
B–63084EN/02
OPERATION
544
By setting the I/O channel (parameter No. 20) to 4, files on a memory card
can be referenced, and different types of data such as part programs,
parameters, and offset data on a memory card can be input and output in
text file format.
The major functions are listed below.
S Displaying a directory of stored files
The files stored on a memory card can be displayed on the directory
screen.
S Searching for a file
A search is made for a file on a memory card and, if found, it is
displayed on the directory screen.
S Reading a file
Text–format files can be read from a memory card.
S Writing a file
Data such as part programs can be stored to a memory card in text file
format.
S Deleting a file
A file can be selected and deleted from a memory card.

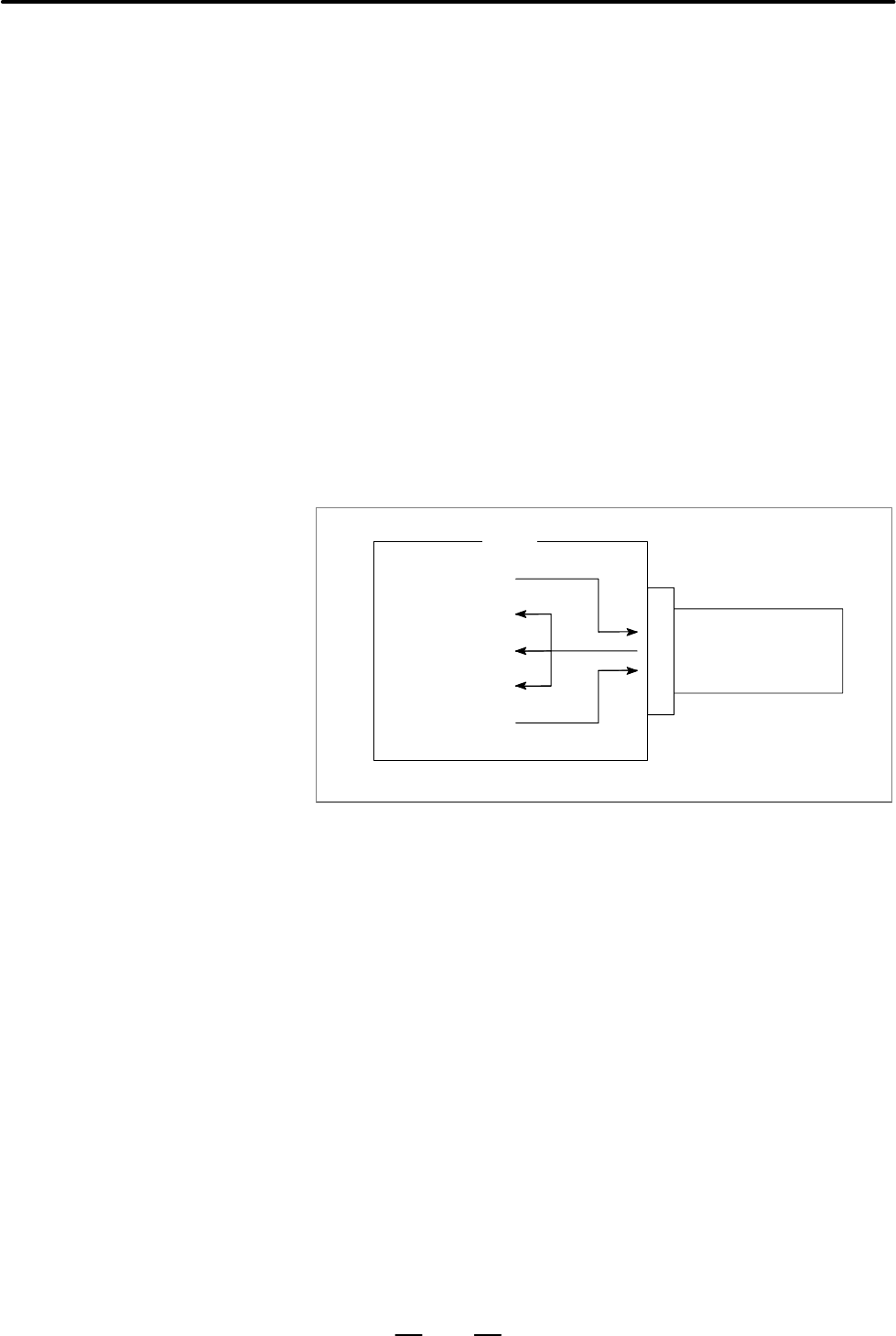

CNC
Writing a file
Deleting a file
Searching for a file
Displaying a
directory
Reading a file
Memory card
8.11
DATA INPUT/OUTPUT
USING A MEMORY
CARD
