Series 0i/0i Mate - Model B Descriptions Page 168

Descriptions

Page of 412

/ 412

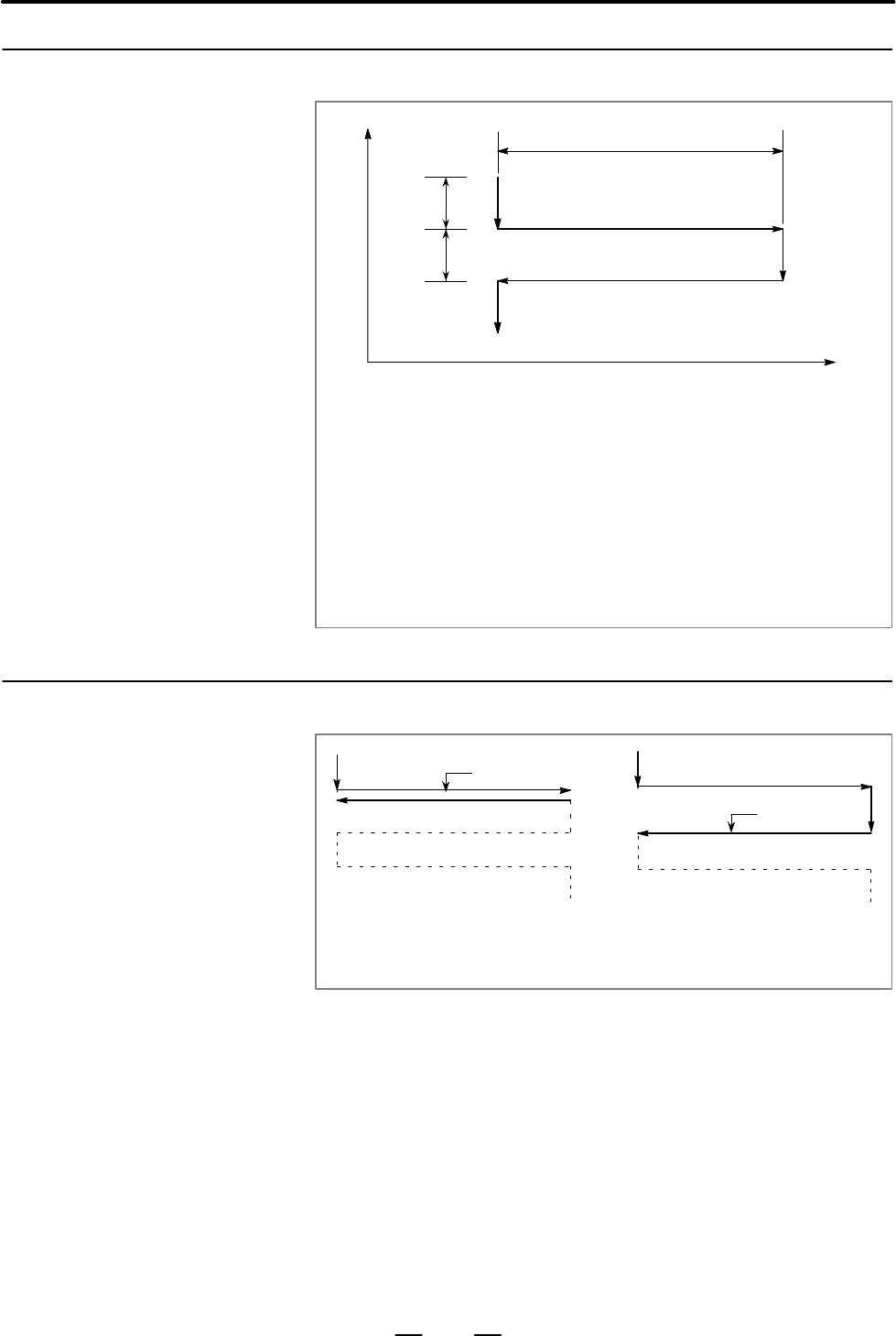

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING B–63832EN/01

NC FUNCTION

144

A : The first cutting depth

B : The second cutting depth

W : Grinding range

U : Dwell time Maximum command time 9999.999 sec.

I : Feed rate of A and B

K : Feed rate of W

H : Repetition frequency Setting value 1-9999

(I)

 (K)

 (I)



 (K)

U (Dwell)

G71 A_ B_ W_ U_ I_ K_ H_ ;

U(Dwell)

P : Gauge number (1-4)

G72 P_ A_ B_ W_ U_ I_ K_ H_ ;

(Stopping)

Skip signal

(Stopping)

Skip signal

If the option of the multi-step skip is employed, gauge number can be

specified. The specifying means of the gauge number is the same as the

multi-step skip. If the option of the multi-step skip is not employed, a

conventional skip signal becomes effective. Commands other than gauge

number are similar to G71.

13.11.1

Traverse Grinding

Cycle (G71)

13.11.2

Traverse Direct Gauge

Grinding Cycle (G72)
