Series 0i/0i Mate - Model B Descriptions Page 182

Descriptions

Page of 412

/ 412

14. TOOL COMPENSATION FUNCTION

B–63832EN/01

NC FUNCTION

158

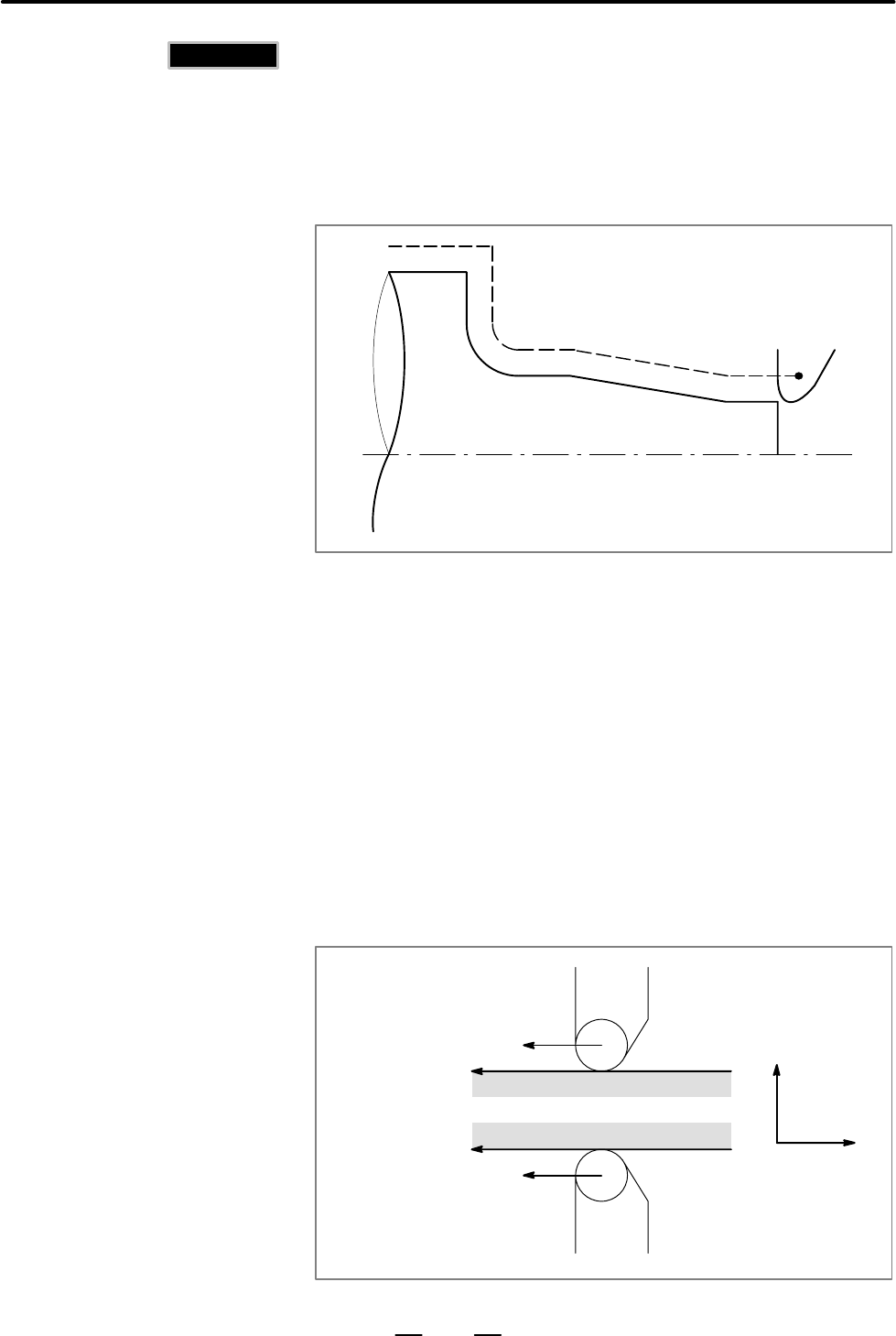

With this function, the programmed tool path can be offset when actually

machining, for value of the tool radius set in the CNC.

By programming machining pattern using this function (measuring cutter

radius for actual cutting, and setting the value in the CNC as offset value),

the tool can machine the programmed pattern, via the offset path. There

is not need to change the program even when tool radius changes; just

change the offset value.

Work-

piece

Profile

Tool

nose

Tool center path

Cross points of line and line, arc and arc, line and arc is automatically

calculated in the CNC to obtain offset actual tool path. So, Programming

becomes simple, because it is only necessary to program the machining

pattern.

G40 : Tool nose radius compensation cancel

G41 : Tool nose radius compensation left

G42 : Tool nose radius compensation right

G41 and G42 are commands for tool nose radius compensation mode.

The tool is offset to the left forward in the tool movement in G42 and right

forward in G42. Tool nose radius compensation is cancelled with G40.

Workpiece

G42

G41

14.2

TOOL NOSE RADIUS

COMPENSATION

(G40, G41, G42)

(T series)

T series

Explanations

D Tool nose radius

compensation and its

cancellation (G40, G41,

G42)
