B–63832EN/01

6. OPERATIONS OF CONTOUR

PROGRAMMING

AUTOMATIC PROGRAMMING

FUNCTION

320

(1)Data items in which auxiliary calculation can be used

(a) Start point

– Coordinate (X, Y) of start point

(b)Line

– Coordinate (X, Y) of end point

– Angle of a line (A)

– Coordinate (X, Y) of end point

– Coordinate (I, J) of center

– Specifying an arc

(2)Calculation type available in auxiliary calculation

(a) Calculation of coordinate

– A point specified by polar coordinate

– A point specified by a point, angle and distance

– A point specified by rotating a point

– Neighbor point of a line

– Cross point between 2 lines

– Cross point between line and arc

– Cross point between 2 arcs

(b)Calculation of angle

– Angle of the line passes 2 points

– Angle of a line rectangular to the line passes 2 points

– An arc passes 1 point and its center coordinate has been

determined

– An arc passes 2 points and its radius has been determined

– An arc passes 3 points

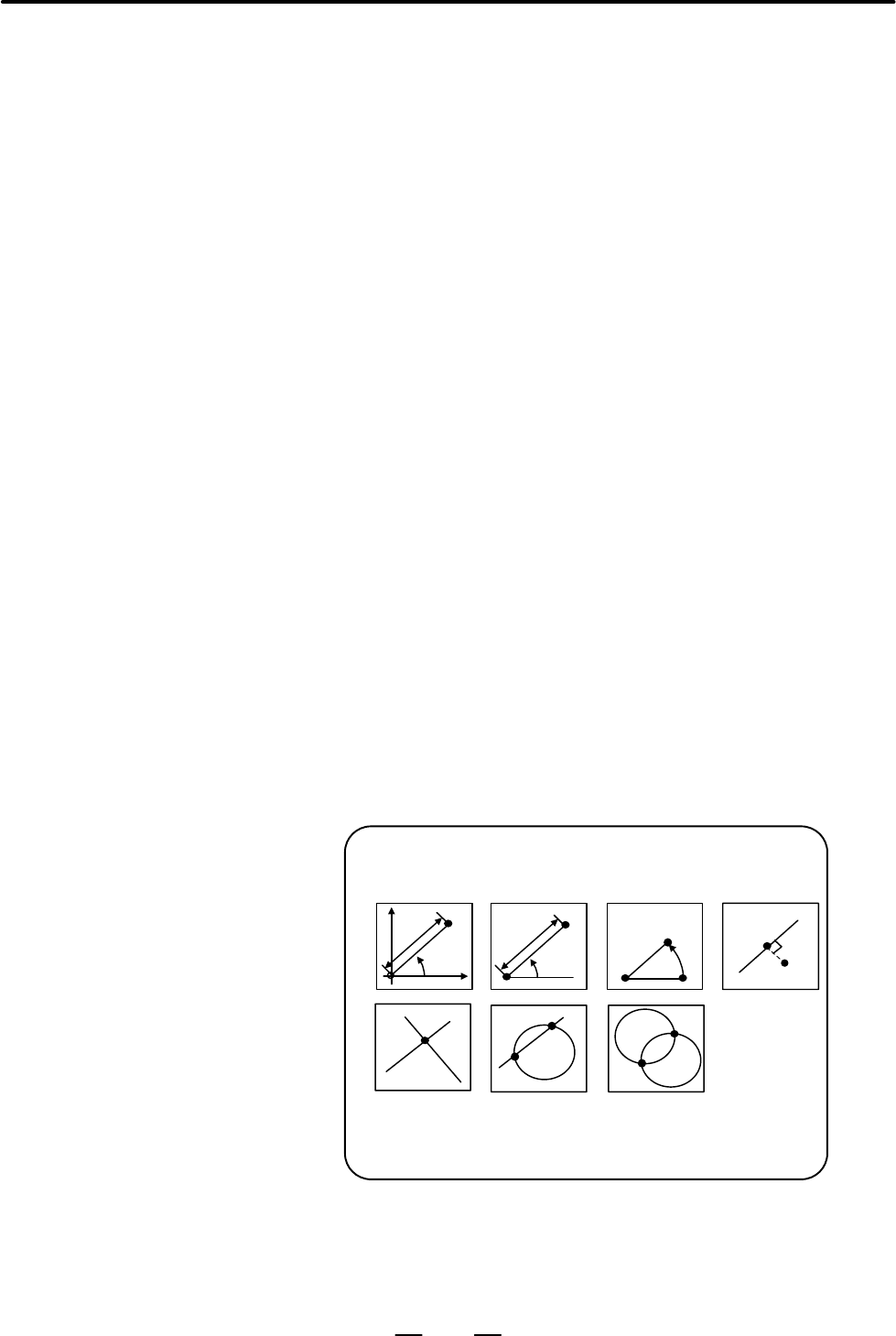

SELECT CALCULATION OF START POINT

1. POINT BY POLAR COORD.

[ ][ ][ ][ OK ][CANCEL ]

3. 4.

5. 6.

(Example of the auxiliary calculation menu screen)

6.1

AUXILIARY

CALCULATION

FUNCTION
