Alpha i Servo/Spindle System Supplement to Manual Page 10

Supplement to Manual
2001/07/18 T.Inagaki
A-78519E
FANUC Series 16i/18i/21i –TB/MB
αi servo/spindle system
Title
Drawing No.
Page
Description
Date
10/11

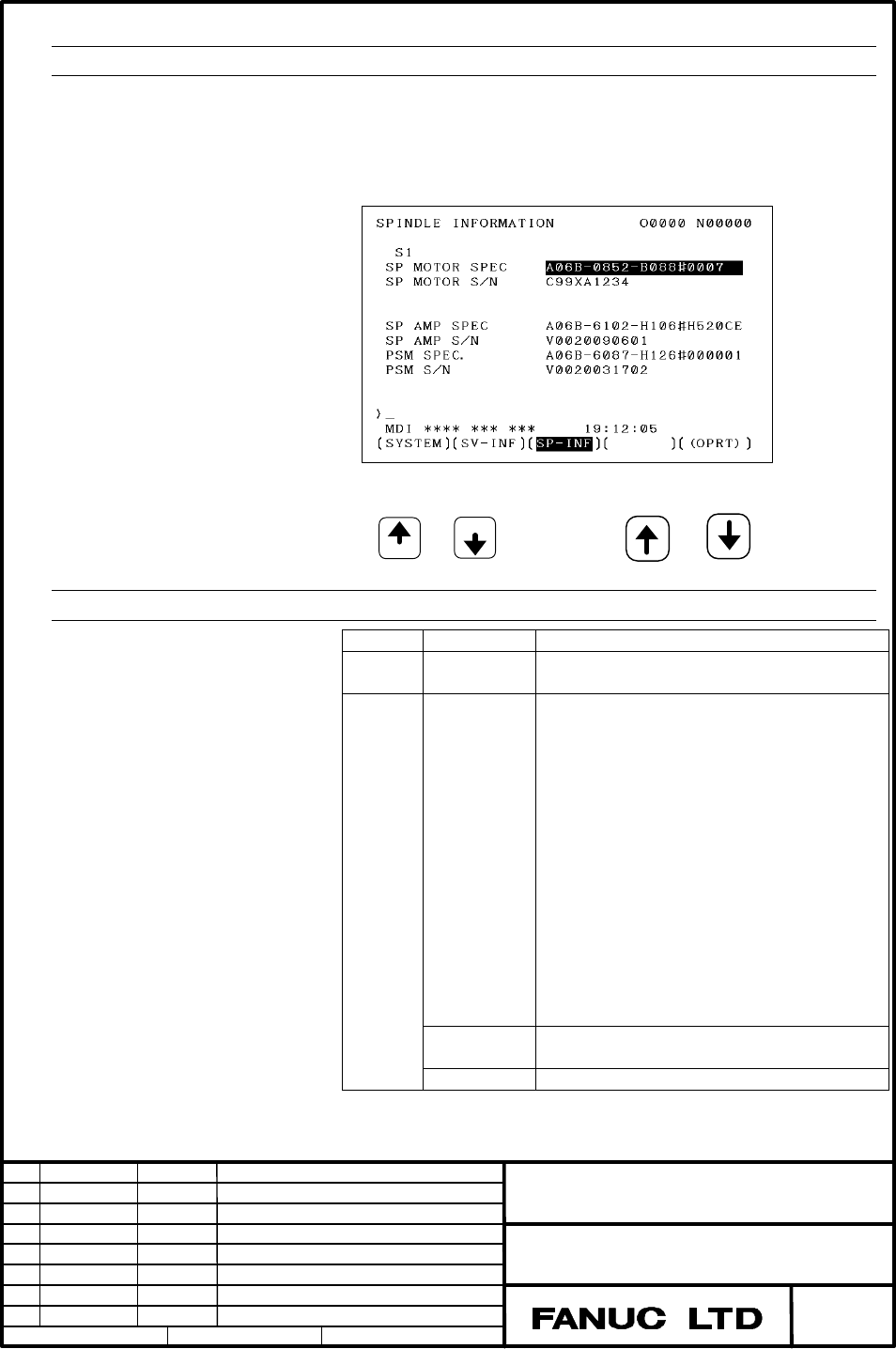

Editing of spindle information screen
1. Set parameter 13112#0 (IDW) to '1'.
2. Set the operation mode to MDI.
3. Hereafter, when the same procedure as "Displaying spindle information
screen" is done, the following screens are displayed.
4. Move the cursor to change the selected item by pressing page keys,
and , and cursor keys, ,and .
Display screen handling
Mode Key operation
Usage
Reference
(*1)
Page key Change spindle information screen into one of next
spindle.
Soft key
[INPUT]
[CANCEL]
[CHANGE]
[SAVE]
[RELOAD]
ID information at the cursor position is changed to the
character string in key input buffer.
Delete the character string in key input buffer
ID information at the cursor position is transferred
from spindle into key input buffer. Only the item to
which '*' (*3) is displayed on the left side is effective.
ID information changed on the spindle information
screen is saved on FLASH-ROM module.
ID information changed on the spindle information
screen is canceled, and the reload from
FLASH-ROM module.
Page key Change spindle information screen into one of next
spindle.
Editing
(*2)
Cursor key Move the cursor to change the selected item
PAGE
PAGE
Previous page
Next page
