FANUC SERIES 15-150 MODEL B Maintenance manual Page 197

Maintenance manual

Page of 420

/ 420

B–62075E/04

2. HARDWARE

177

(1)Use the following lithium batteries:

When the power supply unit is A02B–0162–H101 or –H102:

Ordering drawing number A98L–0031–0007

When the power supply unit is A02B–0162–H107 or –H108:

Ordering drawing number A98L–0031–0012

(2)Trun on the 15–B

(3)Remove the battery case from the front panel of the power supply unit.

The case can be removed easily by holding the top and bottom of it and

pulling.

Front panel of the

power supply unit

Battery case

Battery

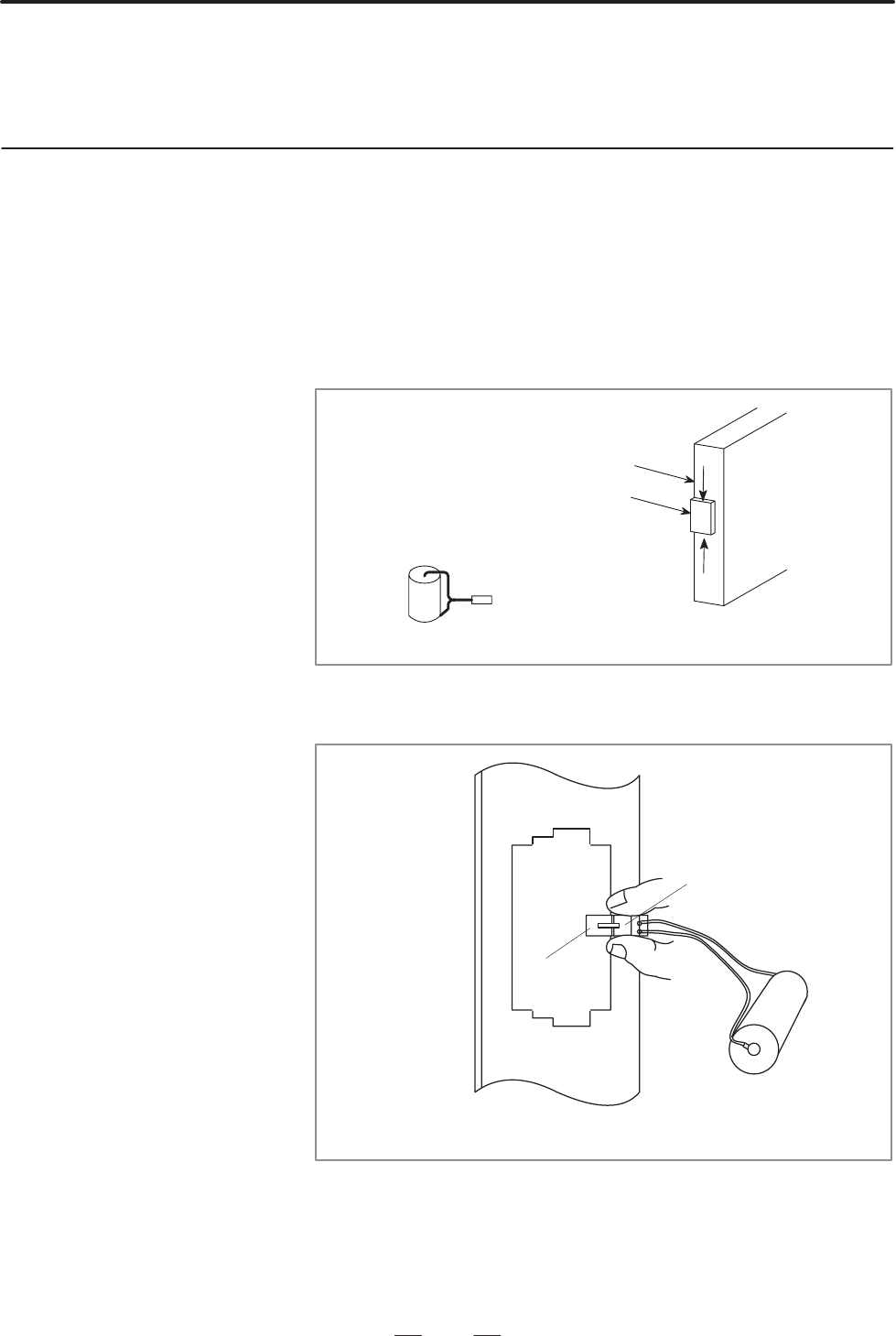

Fig. 2.8.1 (a) Replacing the battery (1)

(4)Remove the connector from the battery.

Cable connector

BATTERY

PC board

connector

Battery

Front panel of the

power supply unit

Fig. 2.8.1 (b) Replacing the battery (2)

(5)Replace the battery and reconnect the connector.

(6)Install the battery case.

(7)Turn off the Series 15–B

2.8

HOW TO REPLACE

THE BATTERIES

2.8.1

   

  
