3-dimensional cutter compensation Additional Manual Page 10

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
9/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa

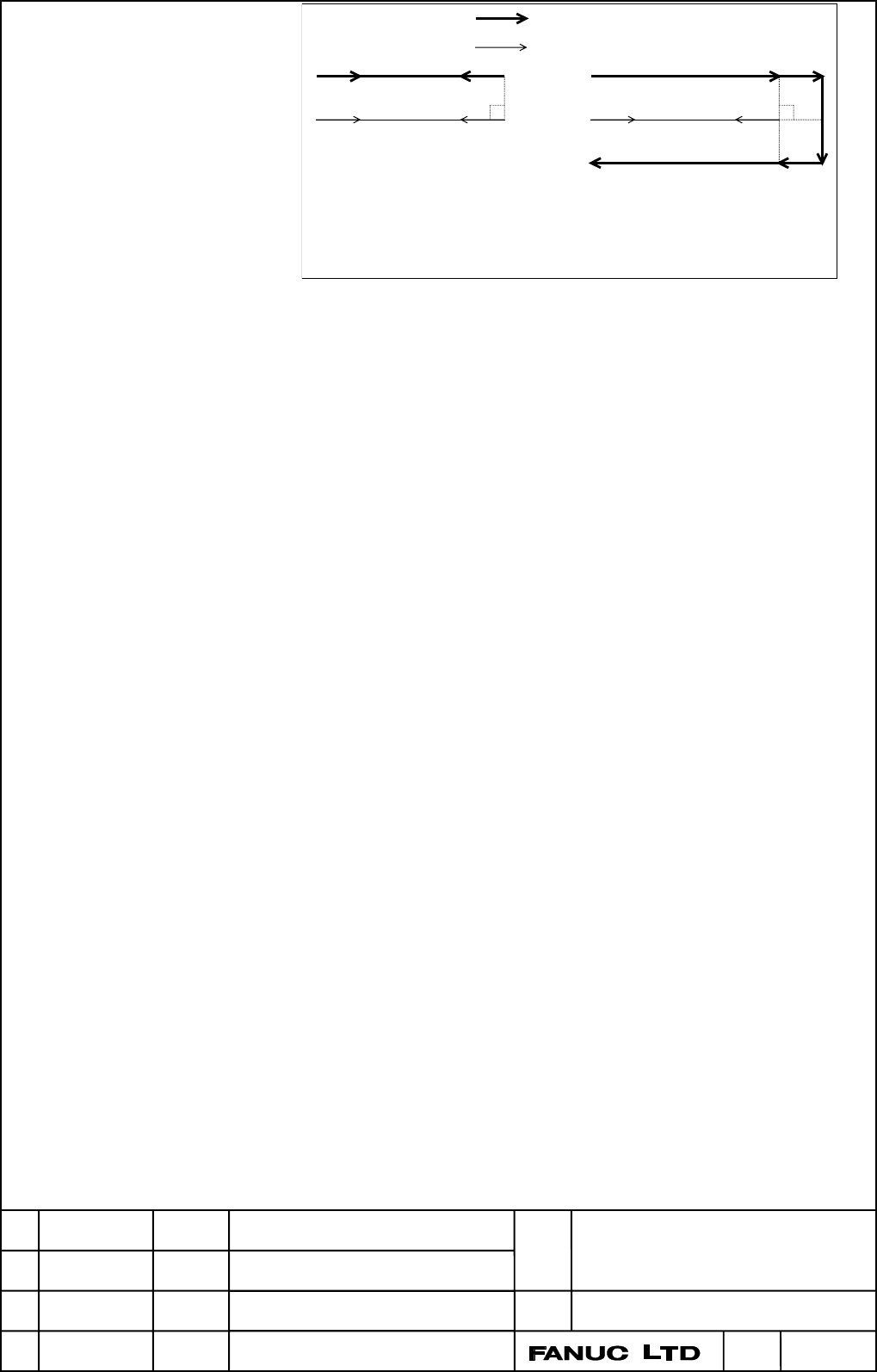

: Tool center path
: Programmed tool path
Example(3)-1 Tool movement when
changing G41.2 to G42.2
(G41.2 mode)
G91 G01 X100.0
G42.2 X-100.0
Example(3)-2 Tool movement when the
G code is left unchanged
(G41.2 mode)
G91 G01 X100.0
X-100.0
Fig.1.1 (h) Operation in the compensation mode (3)
(4) Even when the tool movement changes linear to circular (helical),
circular (helical) to linear, or circular (helical) to circular (helical),
the start, end, and center points of a circular (helical) movement are
projected on the compensation plane that is perpendicular to the
tool axis, a compensation vector is calculated for the plane, then the
vector is added to the originally specified position to obtain the
command position. Then the tool is moved linearly or circularly
(helically) to the obtained command position. In this case, the tool
moves circularly (helically) in the currently selected plane. The
tool does not move circularly (helically) in the compensation plane.
Therefore, when the tool compensation is for circular movement,
the compensation plane must be the XY, YZ, or ZX plane.
