3-dimensional cutter compensation Additional Manual Page 34

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
33/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa

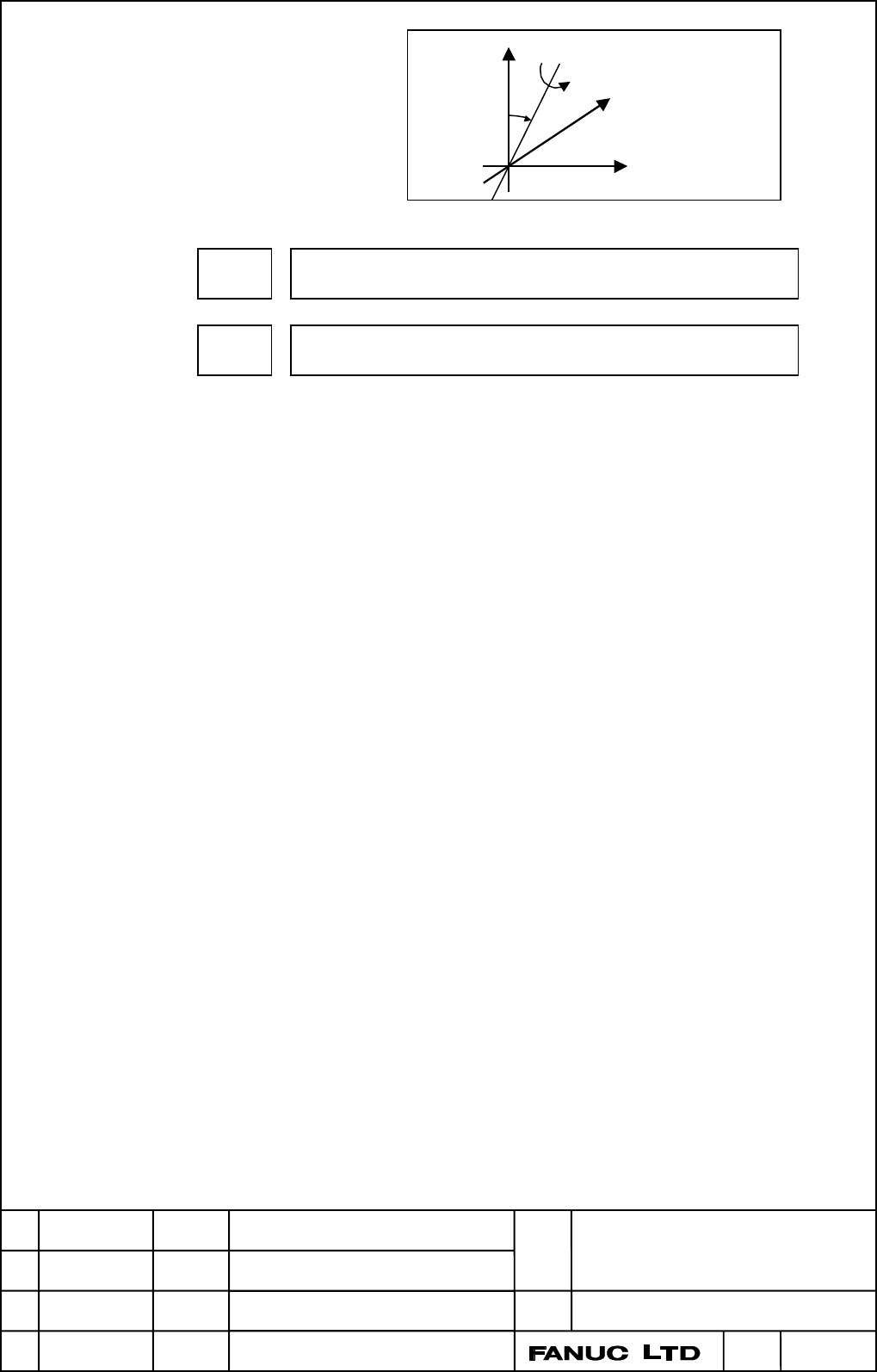

X
Y
Z
B
α
α: Angle of
inclination
19620 Reference angle for the rotation axis for three-dimensional cutter
compensation and so forth (first group)
19621 Reference angle for the rotation axis for three-dimensional cutter
compensation and so forth (second group)
[Input type] Parameter input
[Data type] 2 word type
[Unit of data] degree
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] -99999999 - +99999999
Set a reference angle for the rotation axis to perform three-dimensional cutter
compensation.
Set an angle for the rotation axis assumed when a tool axis direction (parameter No.
19622 to No. 19623) is set.
Usually, set 0.0.
