3-dimensional cutter compensation Additional Manual Page 22
Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
21/
38
Newly registered
Ver Date Design Description
01 01.03.16
Hosokawa
V
Mn
: Movement vector of block n
V
Tn
: Tool vector at the end of block n
V
Cn
: Compensation vector of block n (that lies in the VTn- VMn+1 plane, and is
perpendicular to VTn)
Tool center path (after compensation)
Pro
g
rammed tool
p
ath
V
M1
V
M2
V
T1
V
C1
V
C2
V
T2
V
M3

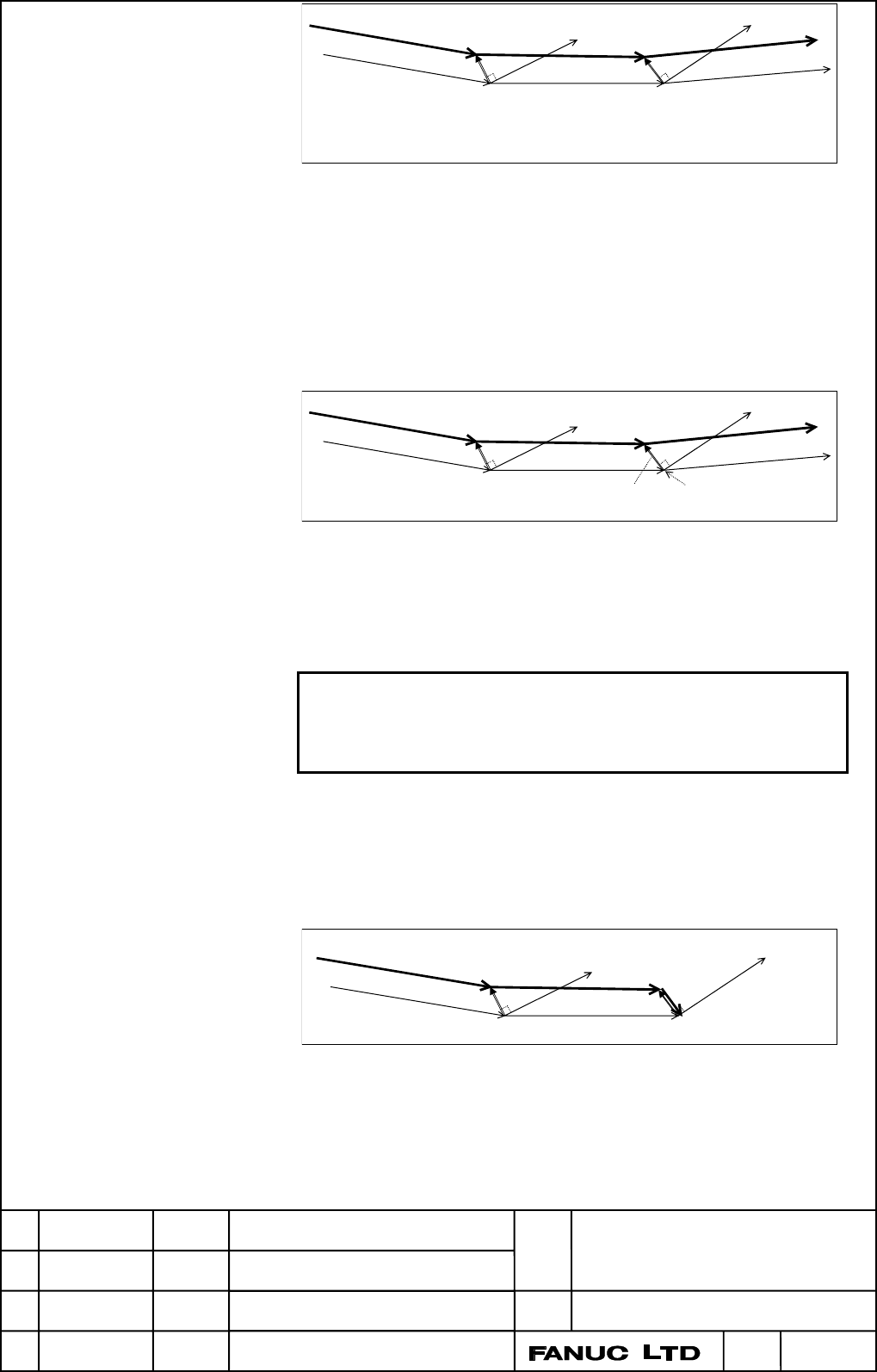

Fig.1.2 (d) Operation in the compensation mode
If a G code or M code that suppresses buffering is specified in the compensation mode,
however, the compensation vector created immediately before the specification is
maintained.
When a block involving no movement (including a block containing a move command for
a rotation axis only) is specified, the movement vector of the block after the block
involving no movement is used to create a compensation vector as shown below.
Tool center path(after compensation)
Programmed path
V
M1
V
M2
V
T1
V
C1
V
C2
= V
C3
V
T2
V
M4
There is one block that
specifies no movement.
Fig.1.2 (e) There is one block that specifies no movement.
If block 3 involves no movement, the compensation vector of block 2 (V
C2
) is created so
that it is perpendicular to V
T2
and lies in the plane formed by the movement vector (V
M4
)
of block 4 and the tool vector (V
T2
) at the end point of block 2.
NOTE
If two or more successive blocks involve no movement, the
previously created compensation vector is maintained.
However, such specification should be avoided.
- Block immediately before the offset cancel command (G40)
In the block immediately before the compensation cancel command (G40), a
compensation vector is created from the movement vector of that block and the tool
vector at the end point of the block as shown below :
Tool center path (after compensation)
Programmed path
V
M1
V
M2
V
T1
V
C1
V
C2
V
T2
G40
Fig.1.2 (f) Block Immediately before G40
