3-dimensional cutter compensation Additional Manual Page 17

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
16/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
Ua: Vector AB
Ub: Vector BC
Va: Tool direction vector between A and B
Vb: Tool direction vector between B and C
Wa: Va × Ua
Wb: Vb × Ub
(Here, × represents an outer product operator.)
Y
Z
Va
Vb
B
C
X
WaWb
Ua
Ub

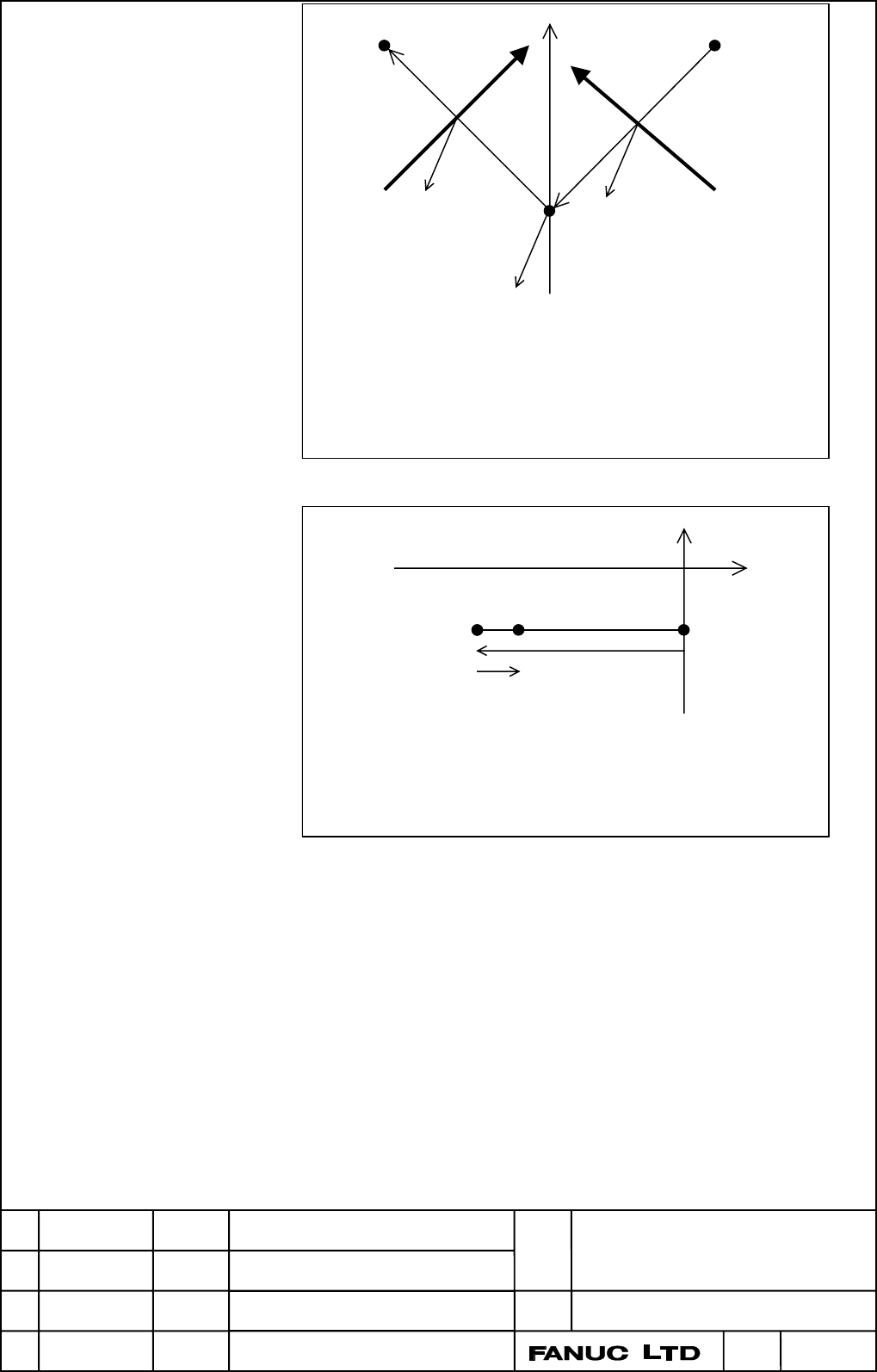

Fig.1.1 (q) Conceptual Diagram
A
’ : Point A projected onto the compensation plane
B’ : Point B projected onto the compensation plane
C’ : Point C projected onto the compensation plane
Ra: Vector A'B'
Rb: Vector B'C'
e3
e2
A
’C’B’
Ra
Rb
Fig.1.1 (r) Programmed Path (on the Compensation Plane) before and after the End
Point (Point B) of N4
When all the following conditions are satisfied, an alarm
(PS0272) Issued.
(1) The tool direction vector changes remarkably.
α : Angle for determination set in parameter No. 6261 (The
default is 45°.)
(Va,Vb) ≤ cos(α)(Here, (Va,Vb) means an inner product.)
