3-dimensional cutter compensation Additional Manual Page 7

Additional Manual
Title
No.
FANUC Series 16i-MA/MB
3-Dimensional Cutter Compensation
A-78438E
Page
6/
38
　Newly registered　　　　　　　
Ver Date Design Description
01 01.03.16
Hosokawa
:Tool center path
:Programmed tool path
Tool
G42.2
G40
Operation in circular interpolation

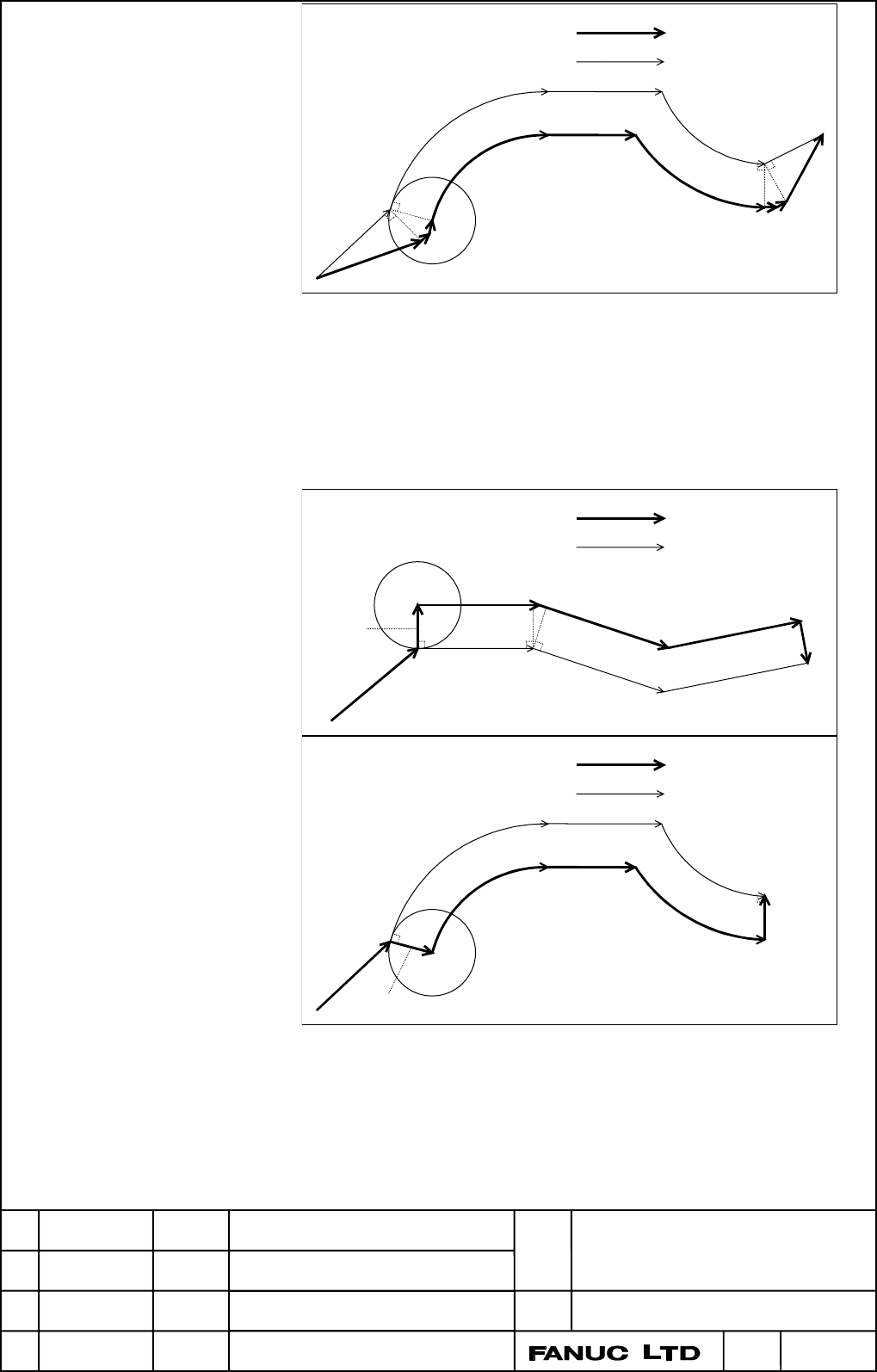

Fig.1.1 (c) Operation at compensation start-up and cancellation
(Type B)
(3) Type C
As shown in the following figures, when G41.2, G42.2, or G40 is
specified, a block is inserted which moves the tool perpendicularly
to the movement direction specified in the next block by the
distance of the tool radius.
Tool
G41.2
G40
:
Tool center path
:
Programmed tool path
Operation in linear interpolation
:Tool center path
:Programmed tool path
Tool
G42.2
G40
Operation in circular interpolation
Fig.1.1 (d) Operation at compensation start-up and cancellation
(Type C)
