FANUC Series 30i-MODEL A
Distance coded linear scale interface
Details
- Procedure for reference position establishment
(1) Select the JOG mode, and set the manual reference position return
selection signal ZRN to "1".
(2) Set a direction selection signal(+J1,-J1,+J2,-J2,…) for a target axis.
(3) The axis is fed at a constant low speed (reference position return FL
feedrate specified by parameter (No.1425) setting).
(4) When a reference mark is detected, the axis stops, then the axis is fed at a
constant low speed again.
(5) Above (4) is executed repeatedly until two,three or four reference marks
are detected. And absolute position is determined and reference position
establishment signal (ZRF1,ZRF2,ZRF3, …) turns to "1".
(A number of eference marks is determined by the parameter No.1802#2,
#1. )

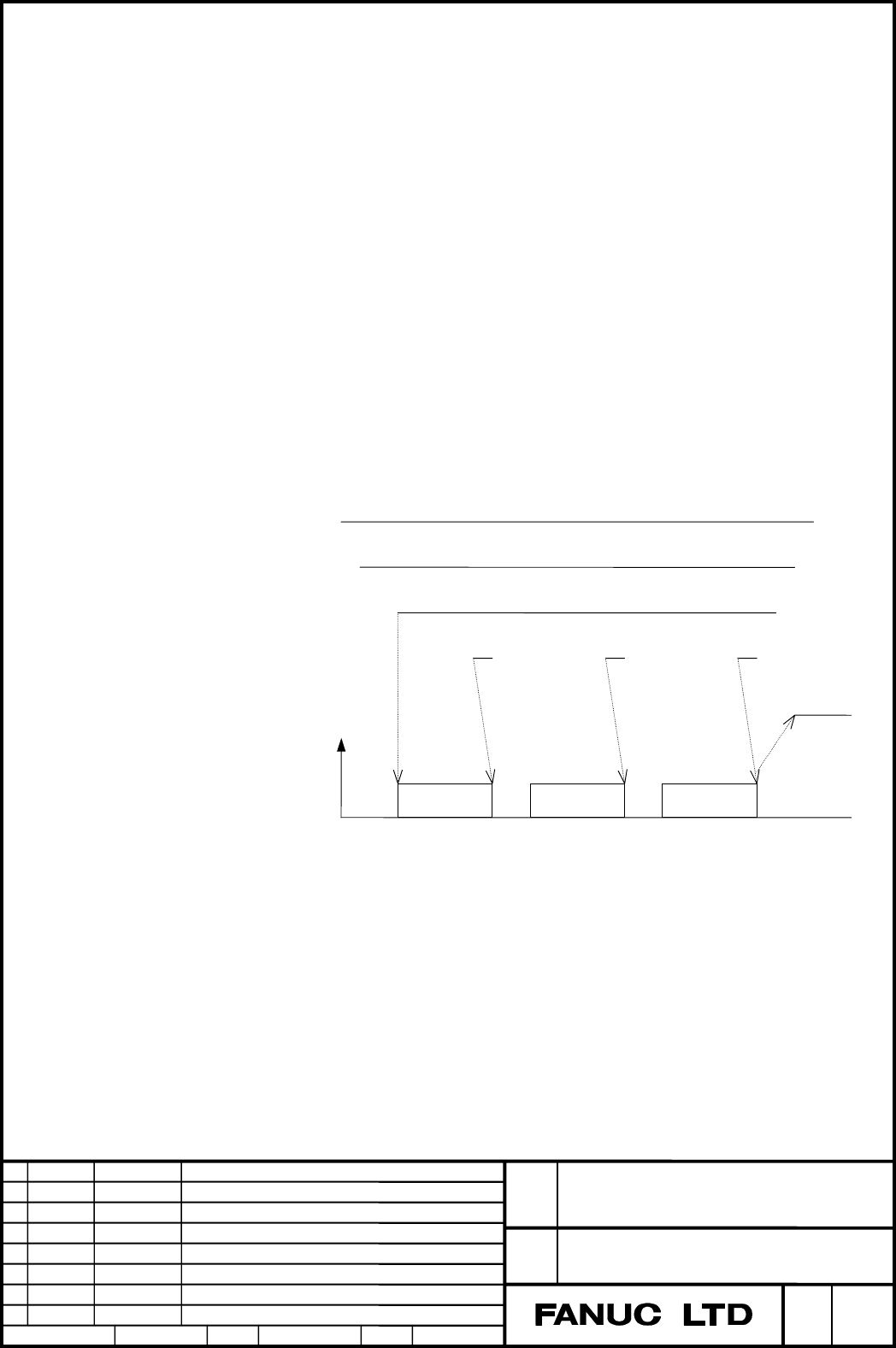

The timing chart for this procedures is given below.
JOG
ZRN
+J1
Reference mark
ZRF1
Feedrate
FL rate FL rate FL rate
Fig.2 Timing chart for reference position establishment
