FANUC Series 30i-MODEL A
Distance coded linear scale interface
In the above example, the following sequence is executed.
a. When the reference mark (1) of the master axis is detected, both master
axis and slave axis stop.
b. Both the axes begin to move again at a reference position return FL
feedrate.
c. When the reference mark (a) of the slave axis is detected, both axes stop
again.
d. Both the axes begin to move again at FL feedrate.
e. Both axes repeat the operation until all point ((2) -> (b) ->(3) -> (c)) are
detected.
f. When the slave axis detects the third reference mark (c), both the axes
end the reference position establishment.
Note
1. In case of this function is used with feed axis
synchronization control axes, if the value of parameter
No. 1883 and 1884 for both the master and slave axes is
0, the reference position is not established.
Also, the reference position establish signals (ZRF1,
ZRF2, ...) are set to 0.
Scale end
Reference mark

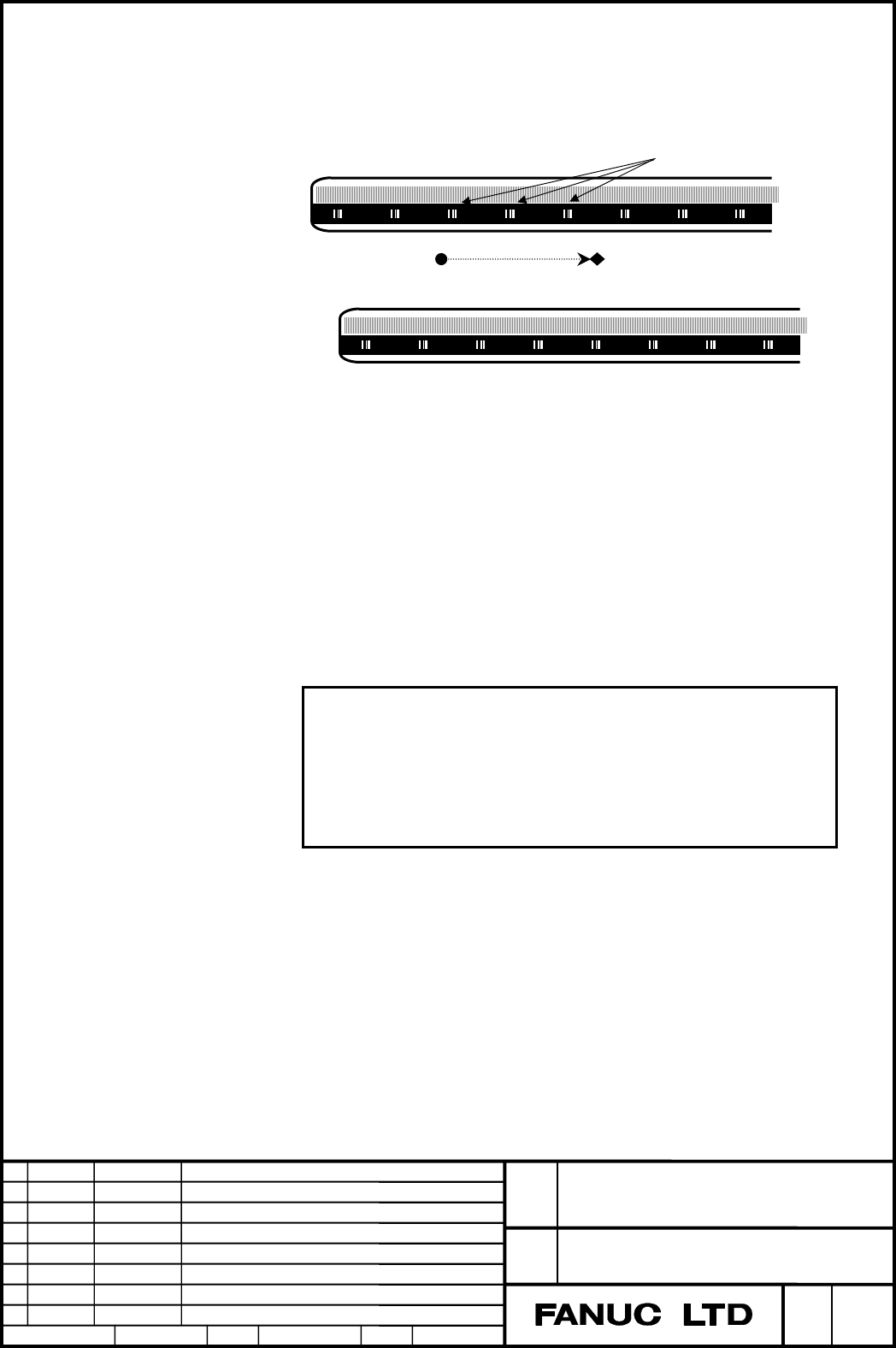

(1) (2) (3)
(a)
(b) (c)
Master axis
Slave axis
Start point End Point
(Example of 3 points measurement system)
