1.1 MEMORY CARD PROGRAM OPERATION/EDITING
Overview
A program held in a program storage file (named "FANUCPRG.BIN") on the memory card
can be selected as a main program to perform memory operation.
Moreover, the contents of a program storage file can be referenced using the program
directory screen, and a program held in a program storage can be edited using the program
editing screen.
A program storage file can be created using a memory card program tool on a commercially
available personal computer. To use a created program storage file, the file is written to a
memory card prepared in the FAT format.
(A program held in a program storage file is hereinafter referred to as a memory card program.
Moreover, a memory card storing a program storage file is referred to as a program storage
memory card.)
NOTE
1 The compactflash card is installed in a special adaptor, stored in the main
unit of NC, and used.
2 Before using the external device subprogram call (M198) function for
calling a program from a memory card , perform a program storage
memory card "removal" operation. For details of the operation, see
Subsection 1.2.1, "Program Directory Screen".
1.1.1 Memory Card Program Operation
A memory card program can be selected as a main program to perform memory operation.
Memory operation has the following features:
- Subprogram call nesting is allowed.
- Macro program call nesting is allowed.
- In a custom macro, a control command using a GOTO statement/WHILE statement can
be specified.
- With the T series, a multiple repetitive canned cycle for turning can be specified.

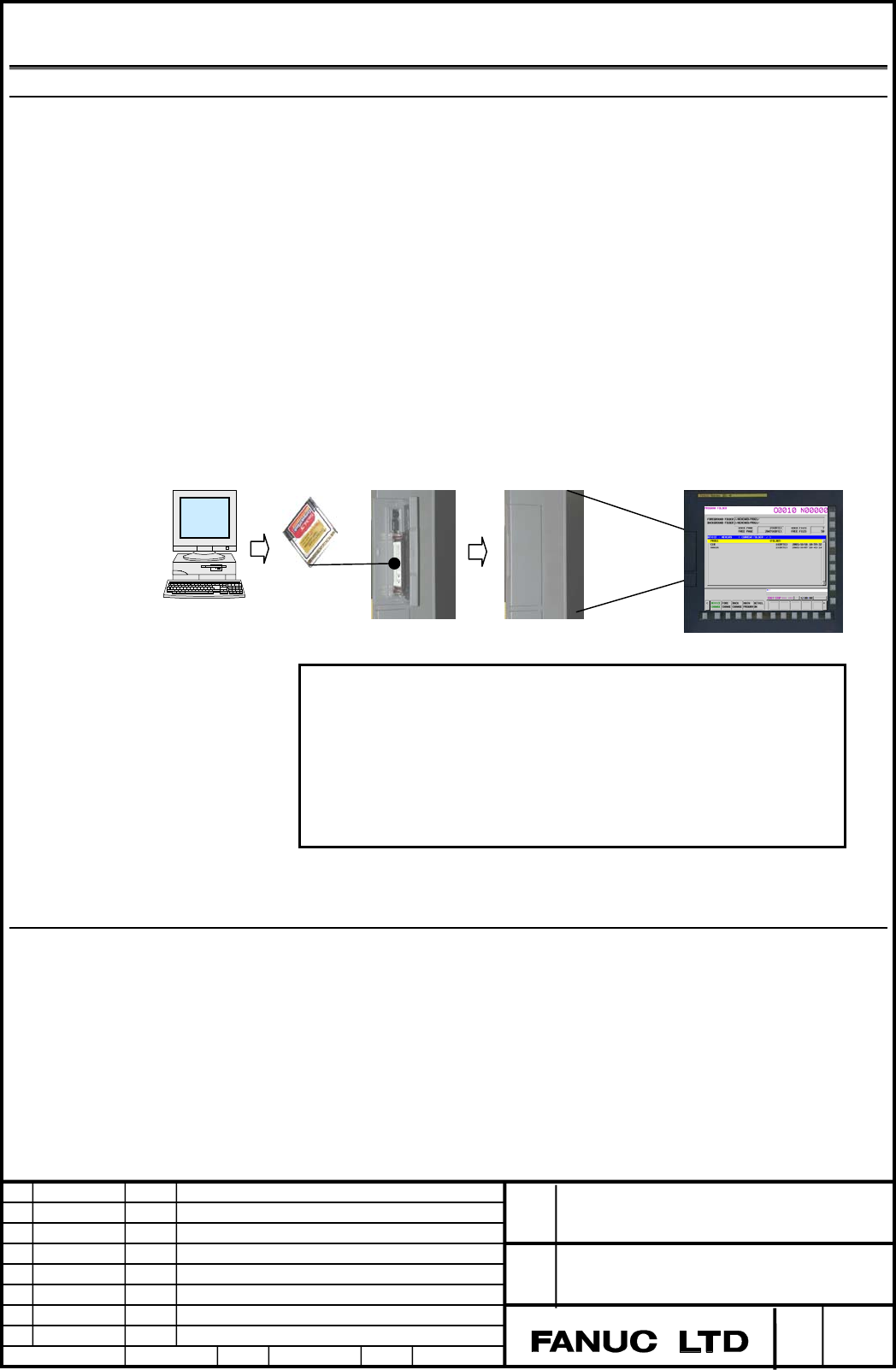

The program text is
converted with the tool.
The compactflash card is installed in a special
adaptor and stored in the main unit.
