1.1. In the case of a rotary axis B type whose movable range is under one rotation
In the case of a rotary axis whose movable range is under one rotation, it is possible
to know its position under one rotation, even if a rotary scale without rotary data (the
number of rotation) is used.
The scale data is required to be continuous in movable range of rotary axis in order to
detect its position, but such a scale always has a point where scale data is not
continuous. By the following parameters No.1817#3 and No.1867 (or No.1868), it is
possible to set a rotary axis B type even if an uncontinuous point of scale data is in
movable range.

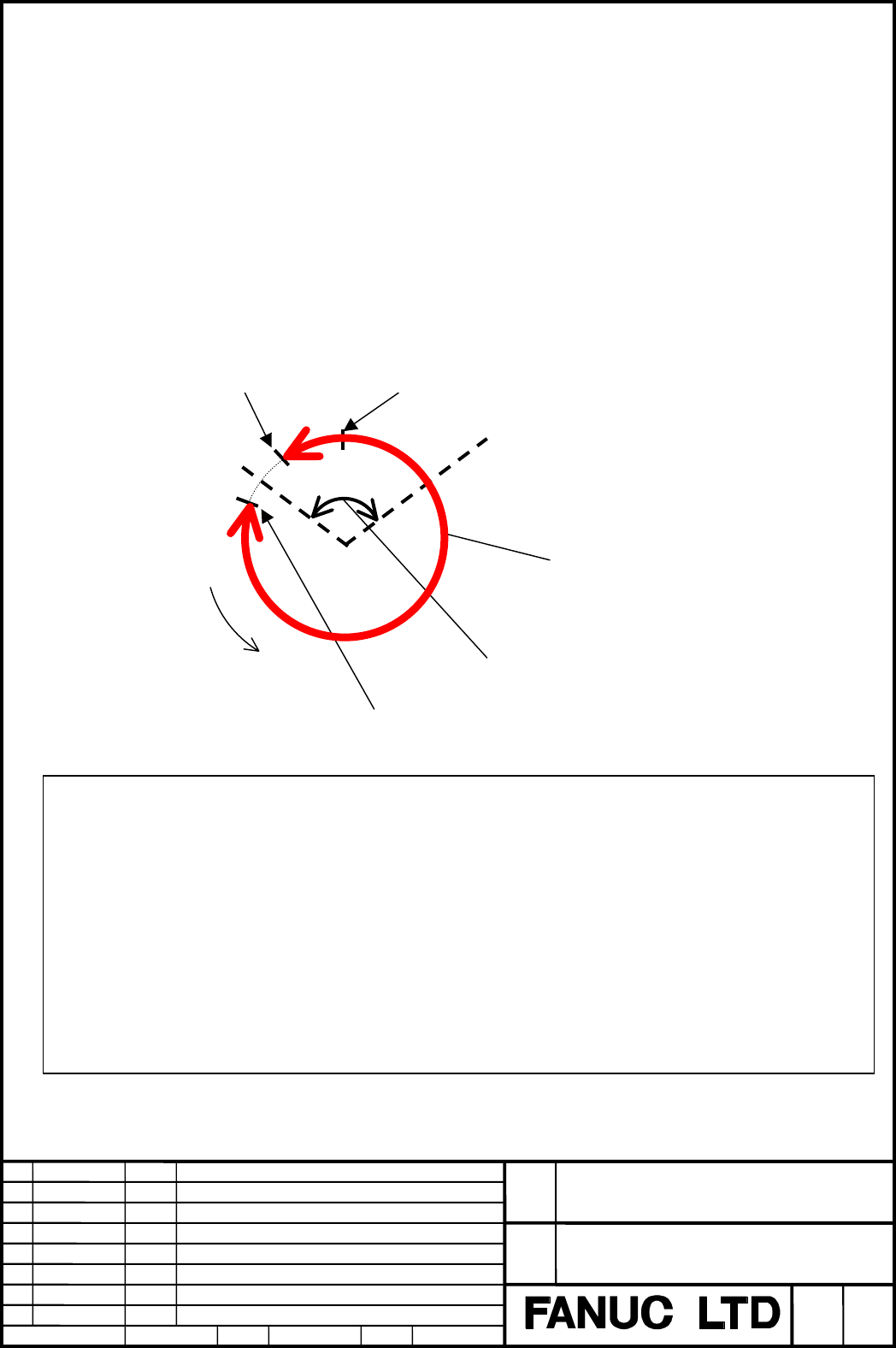

(Example)
scale data = 320000
machine position = 0.000
scale data = 0 (an uncontinuous point）
machine positon = 40.000
positive direction
movable range of rotary axis
scale data = 5000
machine position = 45.000
scale data = 275000
machine position = -45.000
range where scale data is converted
in this case, scale data (10001~359999) is
converted to data ( -349999~ -1)
threshold (an angle from an uncontinuous point = 10000)
threshold value (parameter No.1867 or No.1868) is required to
be set the scale data out of movable range.
The explanation below is for a rotary axis B type using a rotary scale without rotary data which has data 0~360000, for example.
An uncontinuous point is assumed to exist on machine position 40.000. If the movable range is machine position -45.000~+45.000, the data sen
t
from rotary scale is uncontinuous, 0~5000 and 275000~359999. In this case, the correct machine position -45.000~0~39.999 is detected when the
scale data 275000~359999 is sent, but the wrong machine position -320.000~-315.000, which is different from correct position by 360 degree, is
detected when the scale data 0~5000 is sent, if the scale data is not converted, because machine position is shown by equation (scale data when the
p
ower is turned on) - (scale data on machine position =0).
So, by the parameter No.1817#3=1 machine position is converted to -85000~-1 in the scale data 275000~35999 because it is subtracted by the
amount of one rotation (360000 in this example). Therefore The scale data is continuous as -85000~0~5000. This conversion is performed in the
case that the scalse data is larger than the threshold (parameter No.1867 or No.1868).
The threshold value is required to be set as angle from a uncontinuous point in the least input increment. In the above figure, the threshold value is
10000.
