Power Mate i - Model D/H Connection manual (Hardware) Page 367

Connection manual (Hardware)
B–63173EN/03
9. CONNECTION TO SERVO OR SPINDLE
355

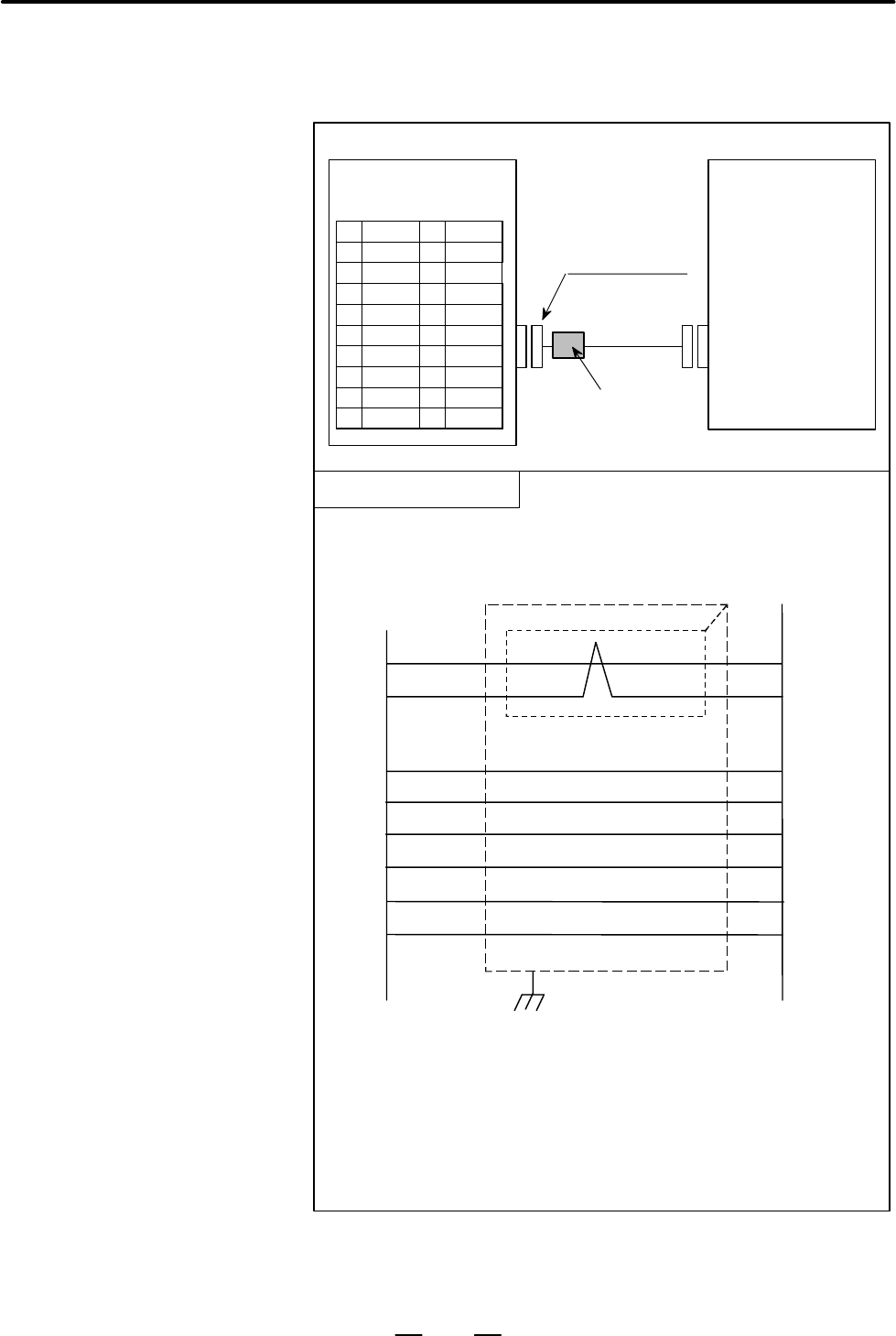

4) Cable J158
Cable J158 is used to connect an analog servo interface unit (JV1nL)
and analog servo amplifier.
JV1nL
(PCR–EV20MDT)
J158
1 (PCA) 11 (PCB)
2 (*PCA) 12 (*PCB)
3 (*ENBL) 13 (OVL)
4 (0V) 14 (0V)
5 (PCZ) 15 ALM
6 EC 16 0V
7 VCMD 17 *SRDY
8 (0V) 18 0V
9 (*PCZ) 19 24VOUT
10 *PRDY 20 (*VRDY)
VCMD
EC
JV1nL
*SRDY
ALM
*PRDY
COM+
0V
0V
7
6
17
15
10
19
18
16
SPR/SPL
GND
S–RDY
ALM
SRV–ON
COM+
COM–
GND
Analog servo interface
Connector:
PCR–E20FS or
PCR–E20FA
Housing:
PCR–V20LB
Ferrite core
Note) Make no connection
to a pin with its signal name parenthesized.
Cable connection (J158)
Analog servo
interface
Analog servo
amplifier
Individual
shield
Maximum cable length: 50 m (additionally restricted by voltage drop)
Recommended cable: A66L–0001–0206 (Individually shielded twisted pair
#24AWG 3 + twisted pair #24AWG 7)
The outside diameter of the cable is 11, so decrease the outside diameter by
peeling off the sheath to insert the cable into the connector case (8 in diameter).
Recommended ferrite core: ZCAT2032–0930 manufactured by TDK
Install the ferrite core as close to the analog servo interface unit as possible.
The ferrite core must be of the split type.
