Series 0i - Model A Descriptions Page 164

Descriptions

Page of 328

/ 328

14. TOOL COMPENSATION FUNCTION

B–63502EN/01

NC FUNCTION

140

The programmed tool movement can be expanded or reduced for offset

amount preset in the tool length compensation memory, by using this

function.

G45: Tool offset expansion

G46: Tool offset reduction

G47: Tool offset double expansion

G48: Tool offset double reduction

By commanding G45 - G48, expansion, reduction, double expansion,

double reduction to axis move commanded in the program can be

performed for the offset amount preset in the tool length compensation

memory. The same offset amount is applied to all move command axes

in the same block as G45 - G48.

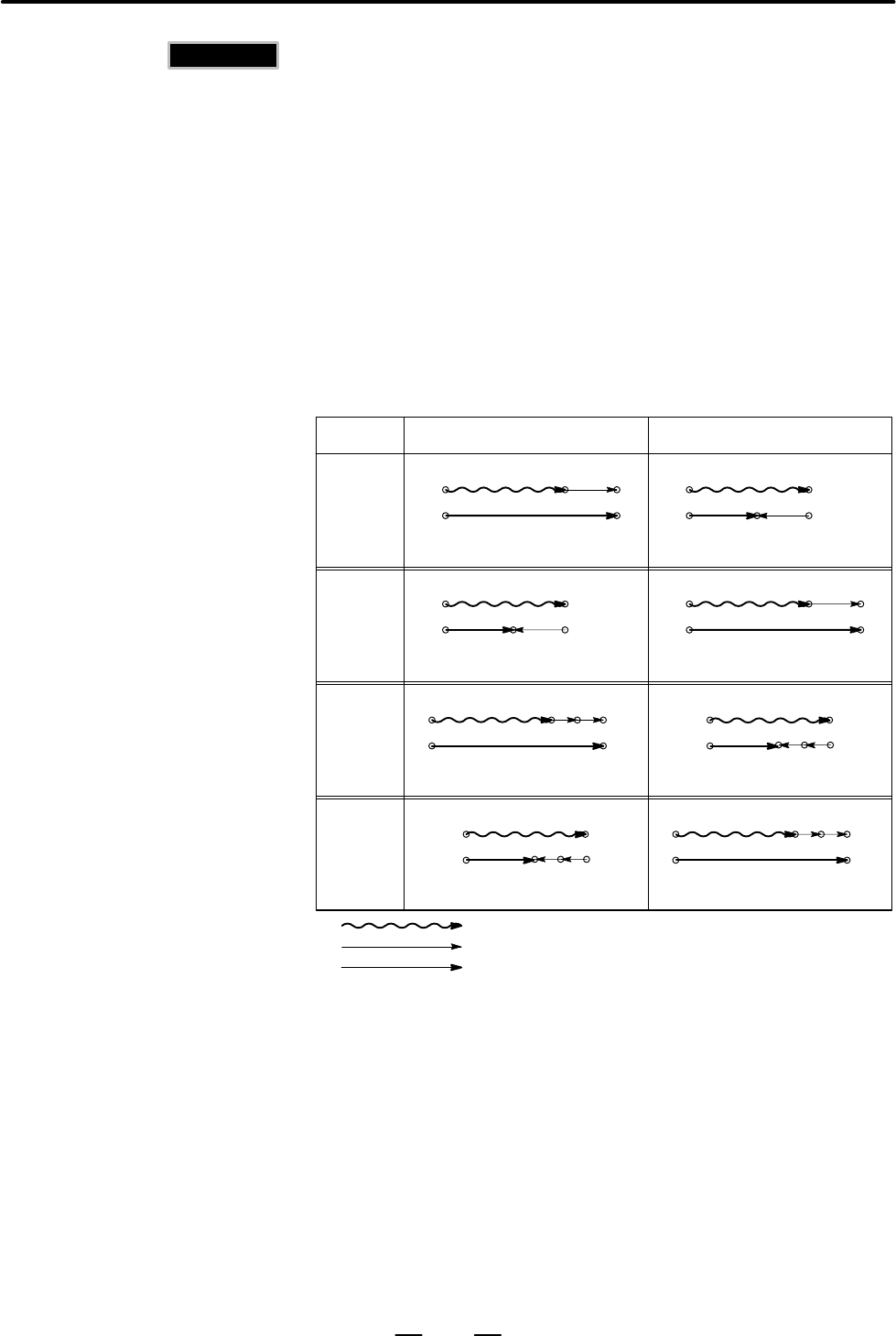

G code Tool offset value is positive

Start

point

End

point

G45

G46

G47

G48

Movement distance

Tool offset value

Actual movement distance

Tool offset value is negative

Start

point

Start

point

Start

point

End

point

End

point

End

point

Start

point

Start

point

Start

point

Start

point

End

point

End

point

End

point

End

point

The offset amount can be set in the tool length compensation memory.

By commanding an offset number with the D code, offset amount

corresponding to the number in the tool length compensation memory is

used as tool offset amount.

14.4

TOOL OFFSET

(G45, G46, G47, G48)

(M series)

M series

Explanations

D G45, G46, G47, G48

D Assignment of offset

amount (D code)
