Series 0i - Model A Descriptions Page 299

Descriptions

Page of 328

/ 328

B–63502EN/01

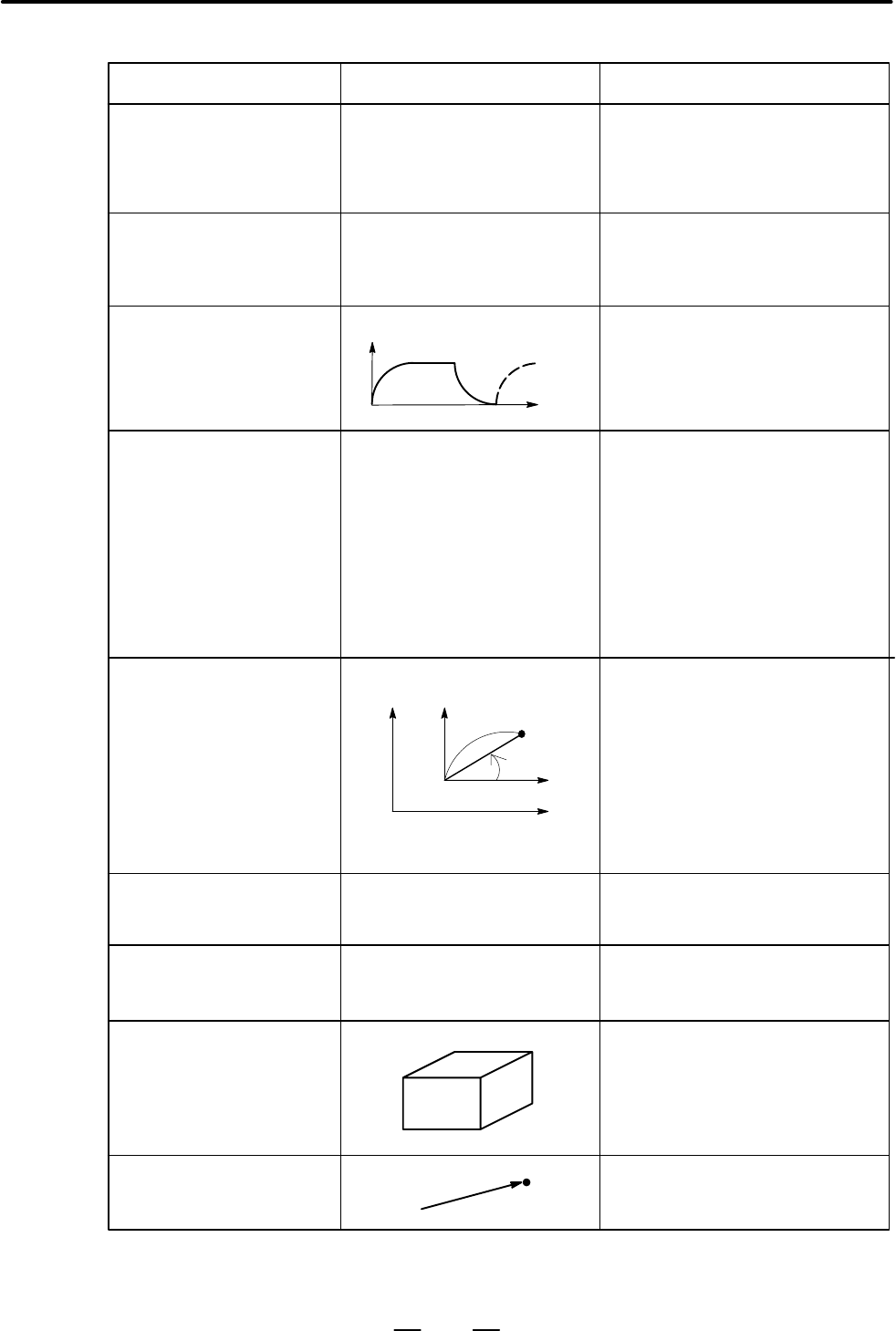

B. FUNCTIONS AND TAPE FORMAT LIST

APPENDIX

275

Tool offset memory A

G10 L11 P_R_ ;

Tool offset memory B

G10 L11 P_R_ ; (Wear offset value)

G11 L11 P_R_ ; (Geometry offset value)

Tool offset memory C

G10 L10 P_R_ ; (Wear offset value/H)

G10 L11 P_R_ ; (Geometry offset val-

ue/H)

G10 L12 P_R_ ; (Wear offset value/D)

G10 L13 P_R_ ; (Geometry offset val-

ue/D)

Velocity

Time

Exact stop (G09)

Change of offset

value by program

(G10)

G09 _;

Look–ahead control

(G08)

G08 P1 ;

Look–ahead control mode on

G08 P0 ;

Look–ahead control mode off

Cylindrical interpolation

(G07.1)

G07.1 IP_R_ ;

Cylindrical interpolation mode

R : Radius of cylinder

G07.1 IP 0 ;

Cylindrical interpolation mode cancel

Functions Illustration Tape format

(2/6)

Polar coordinate input

(G15, G16)

Local coordinate

system

Workpiece coordinate

system

G17 G16 Xp_Yp ⋅⋅⋅ ;

G18 G16 Zp_Xp ⋅⋅⋅ ;

G19 G16 Yp_Zp ⋅⋅⋅ ;

G15 ; Cancel

Plane selection

(G17, G18, G19)

G17 ;

G18 ;

G19 ;

Inch/metric

conversion (G20, G21)

Reference position return

check (G27)

Inch input

Metric input

G20 ;

G21 ;

G27 _ ;

Start point

(XYZ)

(IJK)

Stored stroke check

(G22, G23)

G22 X_Y_Z_I_J_K_ ;

G23 ; Cancel
