B–63502EN/01

30. SAFETY FUNCTIONS

NC FUNCTION

245

When the movable section has gone beyond the stroke end, a signal is

output, the axis decelerates to a stop, and overtravel alarm is displayed.

All directions on all axes has overtravel signals.

The movable section of the machine is parameter set in machine

coordinates value. If the machine moves beyond the preset range, it

decelerates to a stop and alarm is displayed. (This function is valid after

manual reference point return at power on.)

This function can be used instead of hardware overtravel limit switch.

When both is equipped with, both are valid.

Unlike overtravel detection, stored stroke check 1 checks whether the

distance between the current position and that at which the tool will be

stopped after deceleration exceeds the limit.

, Y

, Z

, ...)

, Y

, Z

, ...)

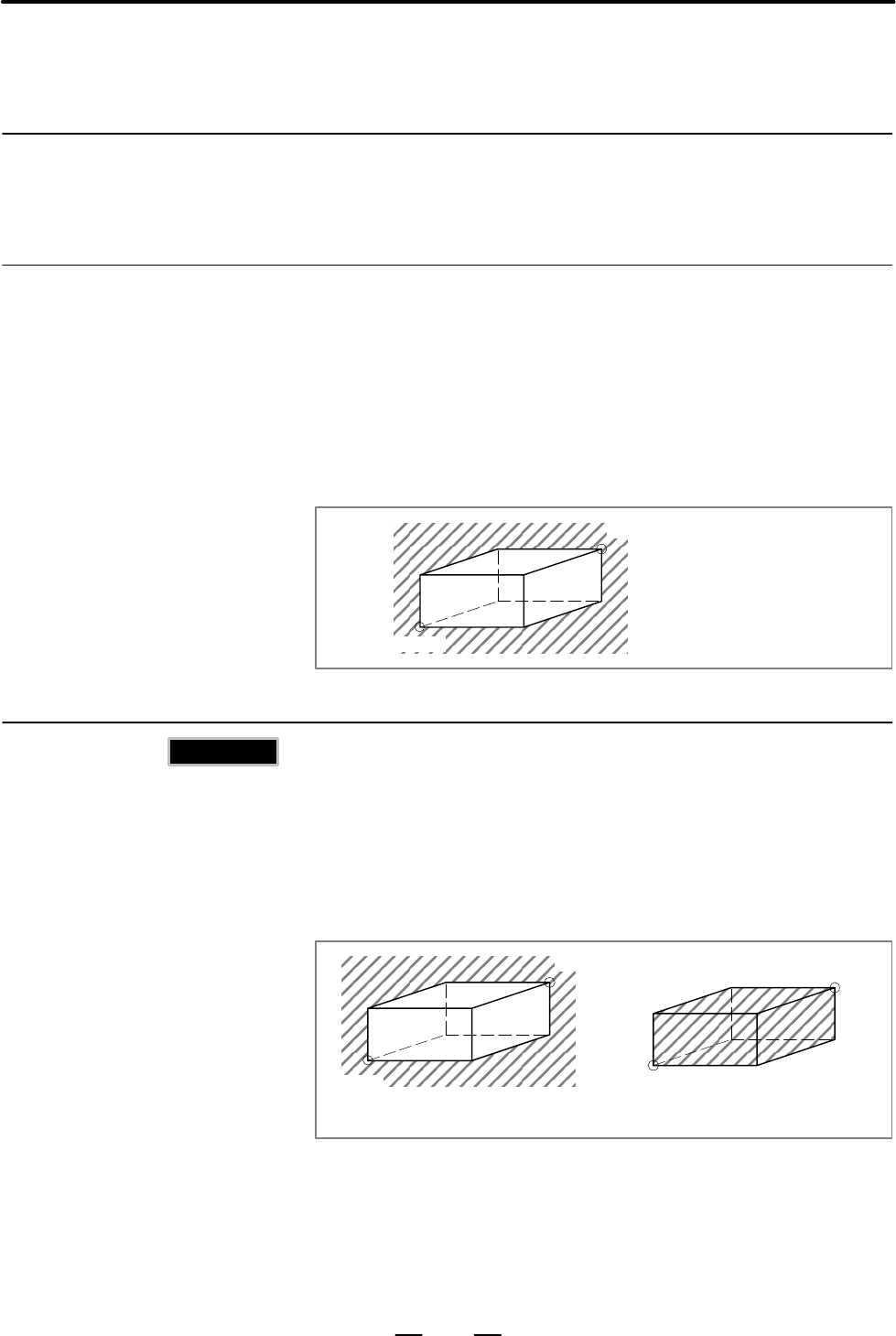

The shaded part is

the inhibition area.

An inhibition area can be specified inside or outside an area set by

parameter or by program. Command distance from the machine

coordinates zero point for limit positions. This function is valid after

manual reference point return right after the power on. When specifying

the limits with program, limits or axes X, Y, Z can be set.

The inhibition area can be changed according to the workpiece. The

parameter decides whether the inhibition area is outside or inside the

specified area.

(X, Y, Z)

(I, J, K)

(X, Y, Z)

(I, J, K)

Inhibition area outside

Inhibition area inside

30.2

OVERTRAVEL

FUNCTIONS

30.2.1

Overtravel

30.2.2

Stored Stroke Check 1

30.2.3

Stored Stroke Check 2

(G22, G23) (M series)

M series
