21. AXES CONTROL

B–63502EN/01

NC FUNCTION

190

A polygonal figure can be machined by turning the workpiece and tool

at a certain ratio.

D Rotation ratio of the workpiece and tool

D Number of tool teeth

The polygon can be a quadrilateral or hexagon according to the above

machining conditions.

Compared with the machining performed by using C and X axes with

polar-coordinate compensation, this machining requires shorter time. It,

however, cannot form a precise figure of a polygon. Generally, this

method is used for machining of square or hexagonal bolt heads or

hexagonal nuts.

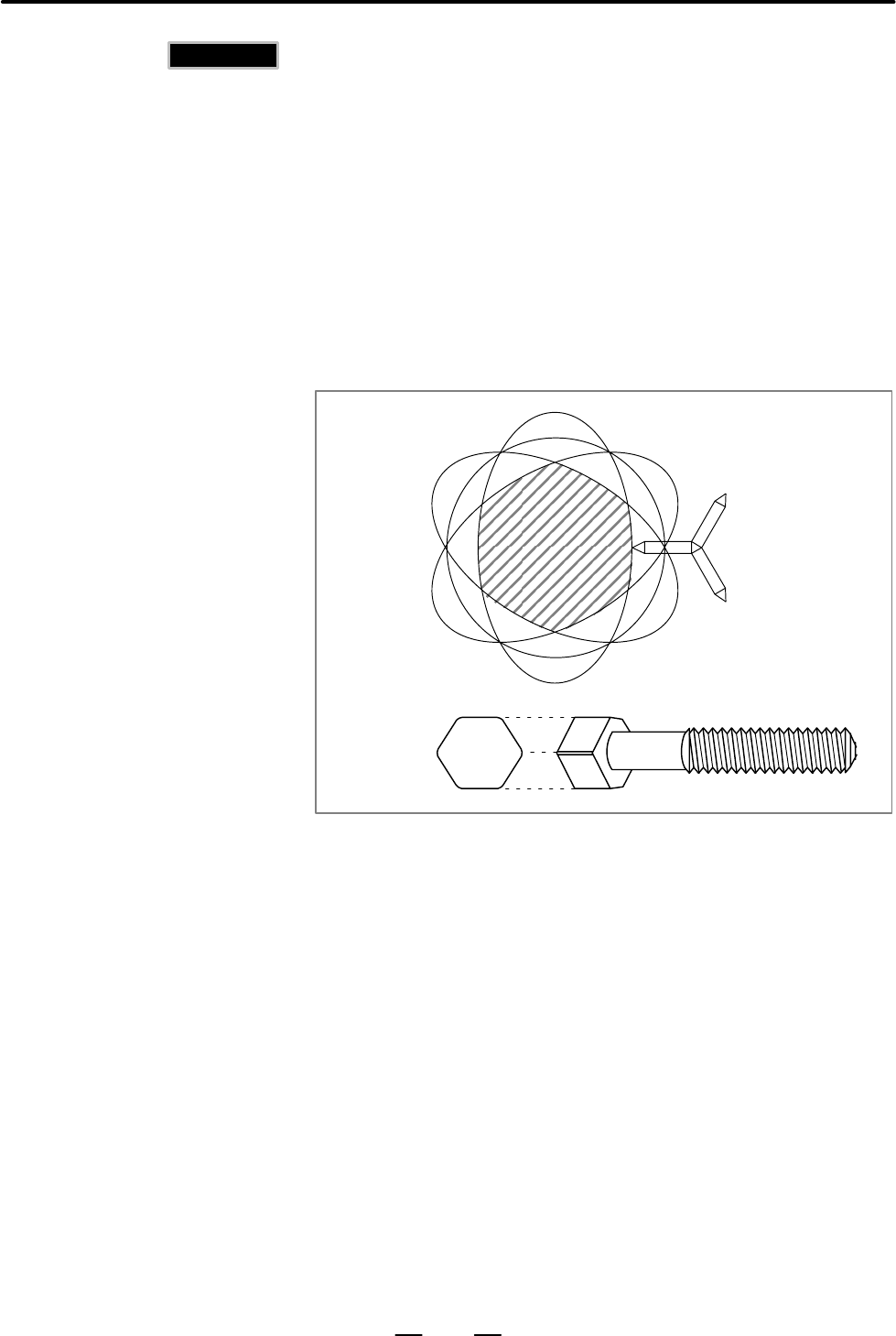

Example)

Rotation ratio of the workpiece and tool : 1 : 2

Number of teeth : Three at every 120° (for a hexagon)

Workpiece

Tool

The rotation of the tool for polygonal turning is controlled by the CNC

control axis. Hereafter, the rotation axis of this tool is called B axis.

Command G51.2 controls the B axis so that the ratio of the tool speed to

the speed of the workpiece (specified by the S command beforehand)

attached to the spindle becomes the specified value.

The synchronization between the spindle and B axis is canceled by the

command below.

G50.2 ;

21.7

POLYGONAL

TURNING

(G50.2, G51.2)

(T series)

T series
