14. TOOL COMPENSATION FUNCTION

B–63502EN/01

NC FUNCTION

142

Plane to perform cutter radius compensation is decided in the axis address

commanded in the g17, G18, or G19 block.

Example)

(U, V, W axes are parallel axes of X, Y, Z axes respectively)

G17 X_ ; XY plane

G17 U_ W_ ; UV plane

G19 Y_ W_ ; YW plane

If axis address of Xp, Yp, or Zp was omitted, compensation plane is

decided regarding that X, Y, or Z was omitted.

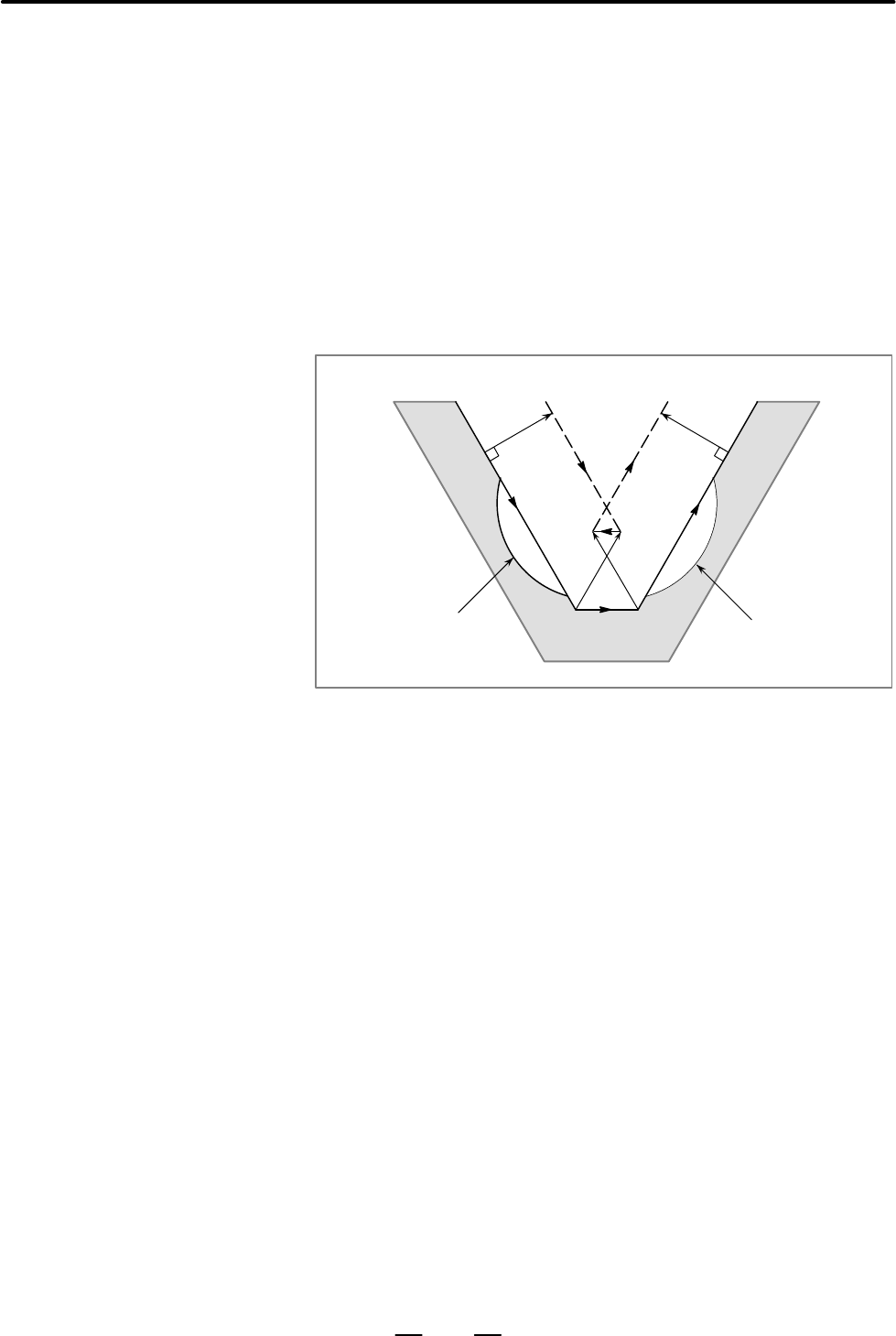

Tool overcutting is called ’interference’. This function checks whether

interference occurs, if cutter radius compensation is performed.

Programmed

path

Tool nose

center path

OvercuttingOvercutting

D Interference check
