FANUC Series 30i/31i/32i-MODEL A, Guidance Screen for Tilted Working Plane Command, Specifications Additional Manual Page 12

Additional Manual
1.2.2 DATA SETTING SCREEN
The data setting screen is used to set tilted working plane specification data
necessary for a selected command type, which is selected on the command
type selection screen, or selected by pressing the soft key [GUIDANCE] on
program editing screen.
The data setting screen varies in each command type. For details of each
data setting screen, see Subsection 1.2.3, "DETAILS OF DATA SETTING
SCREEN".

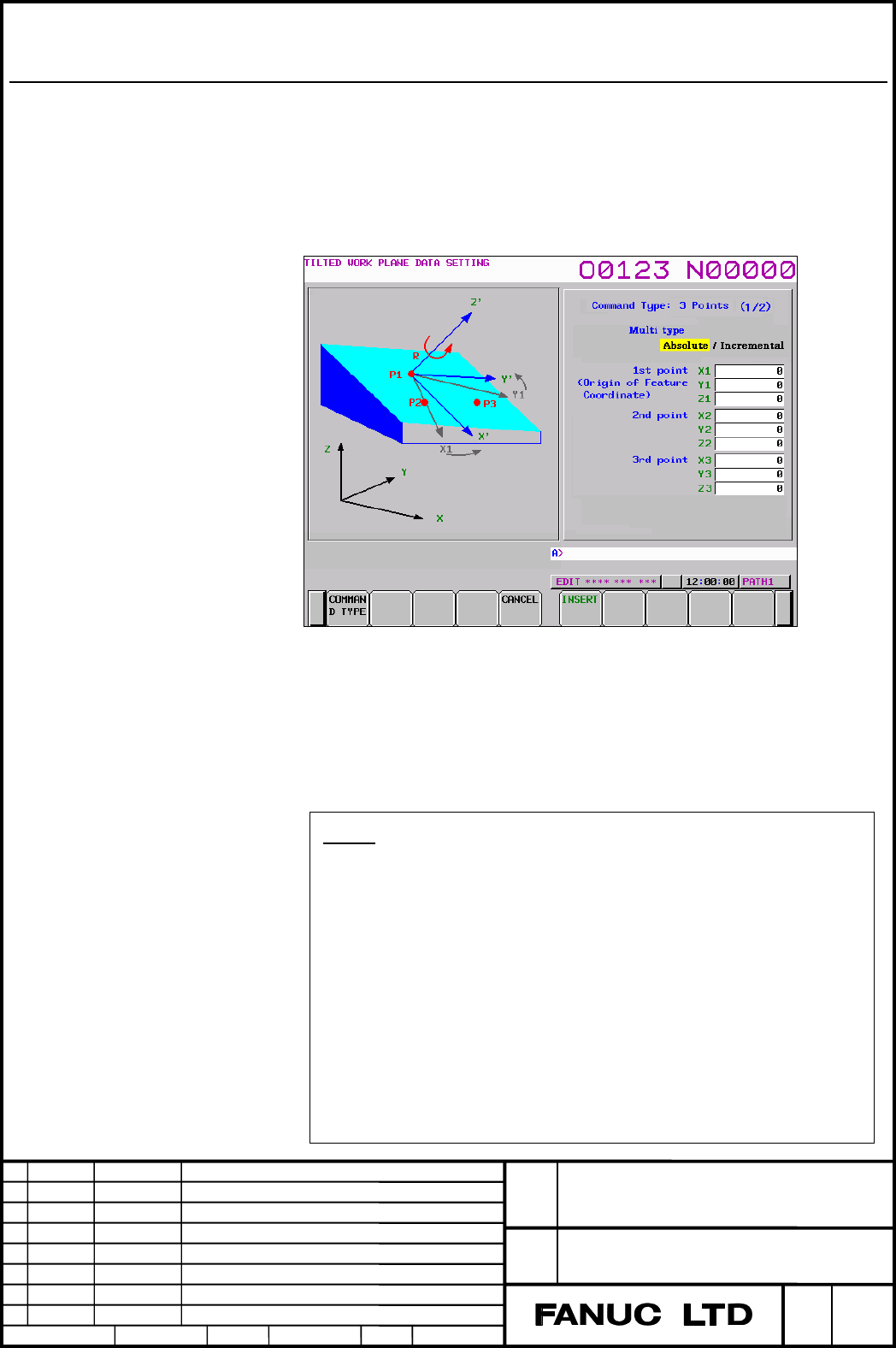

Fig. 1.2 (b) Data setting screen - 3 points specification
Display of the data setting screen
When a new block is created, the initial values are set in the setting and
selection items.
When an existing block is modified, the command data of the block of
cursor position on the program editing screen is reflected to the setting and
selection items.
NOTE
1. If the guidance screen is displayed when the cursor is
placed in the middle of the commands of multiple blocks, the
parameters of the block(s) before the cursor are not reflected
to the setting and selection items but only the parameters o
f
the block(s) after the cursor are reflected. If no data is
available for reflection in a setting or selection item, the initial
value is set in the item.
2. If the names of the three basic axes specified in the bloc
k
of cursor position differ from the actual parameter-specified
axis names, the command data is not reflected to the setting
item.
A-90404 E
Title
Draw
No.
12/24
Sheet
FANUC Series 30
i
/ 31
i
/ 32
i
Guidance screen for
Tilted Woking Plane command
Edit
Apprv.
Desig.
Date
Design
Descri
p
tion
Date
Feb.02.2006
