FANUC POWER MATE i-MODEL D/H Operators manual Page 266

Operators manual

Page of 648

/ 648

PROGRAMMING

B–63174EN/02

PROGRAMMING

(Power Mate i–H only)

4. MULTIAXIS SYNCHRONIZATION

FUNCTION

248

MULTIAXIS SYNCHRONIZATION FUNCTION

This chapter describes synchronization control exercised by the Power

Mate i–MODEL H (referred to as the Power Mate i–H).

Synchronization control is the function for operating axes (synchronous

axes) in phase with a synchronization reference axis (synchronization

base axis) as if multiple axes were jointed with gears by using a servo

motor.

An inter–axis speed ratio (gear ratio) can be set. A synchronous

relationship is maintained, regardless of how many turns are made.

During operation, the speed ratio can be changed.

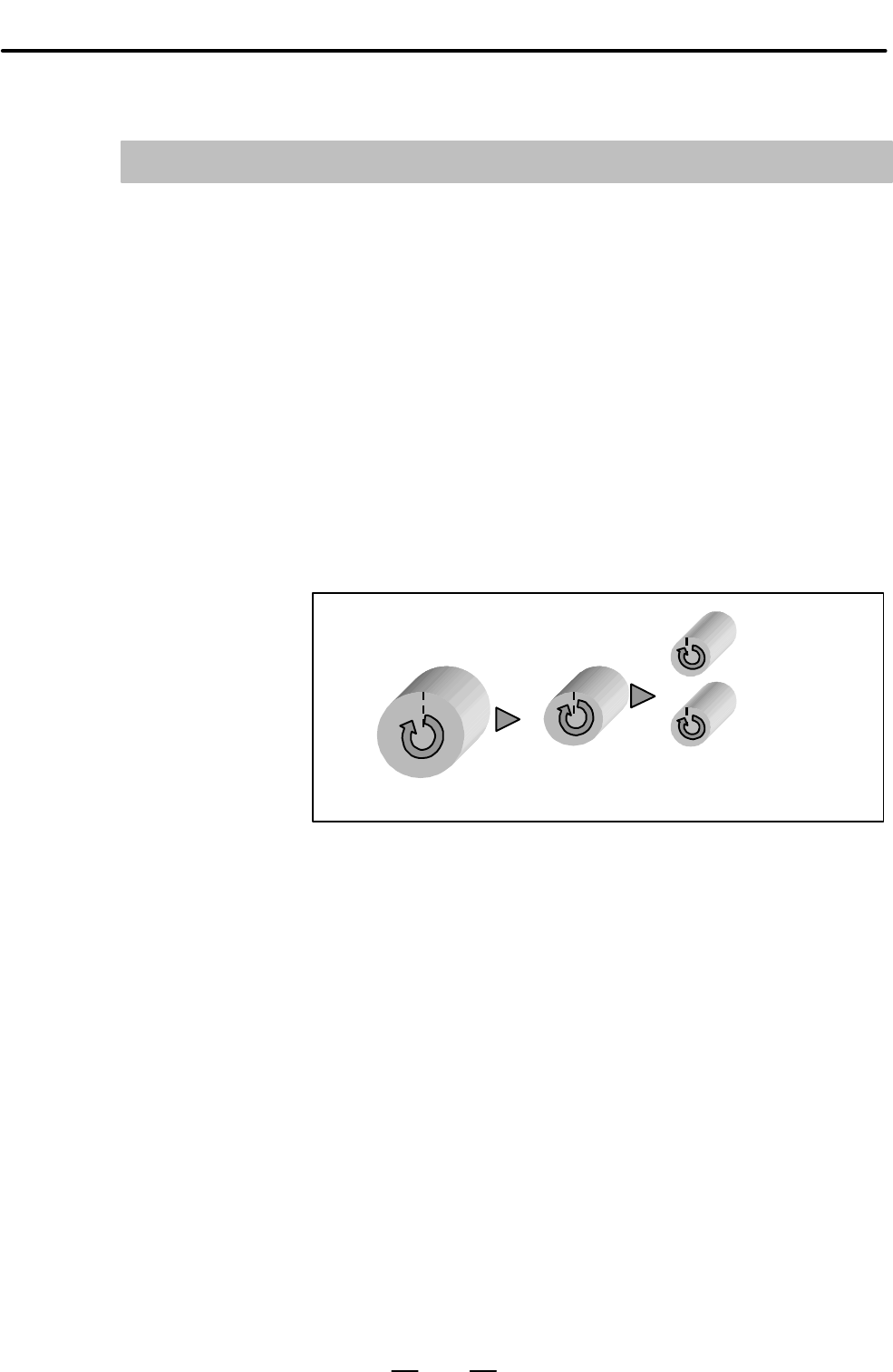

In Fig. 4, the child axis is in phase with the parent axis, and grandchild

axes 1 and 2 are in phase with the child axis.

With this function, control mentioned above can be exercised.

Synchronous

Parent axis

Child axis

Grandchild axis 1

Grandchild axis 2

Fig. 4

For details of this function, refer to the chapter of ”MULTIAXIS

SYNCHRONIZATION FUNCTION” in ”Power Mate i–MODEL H

Connection Manual.”

The procedure for synchronous operation is summarized below.

1 Set those axes that are engaged in synchronous operation.

For synchronous operation, set the synchronous relationships between

a synchronization base axis (parent axis) and a synchronous axis (child

axis) by using a parameter. Do not use G10 (automatic operation) for

this setting.

2 Perform synchronous operation.

Perform synchronous operation based on the synchronous

relationships set above.

Overview

Procedure
