OPERATION

B–63174EN/02

2. OPERATIONAL DEVICES

277

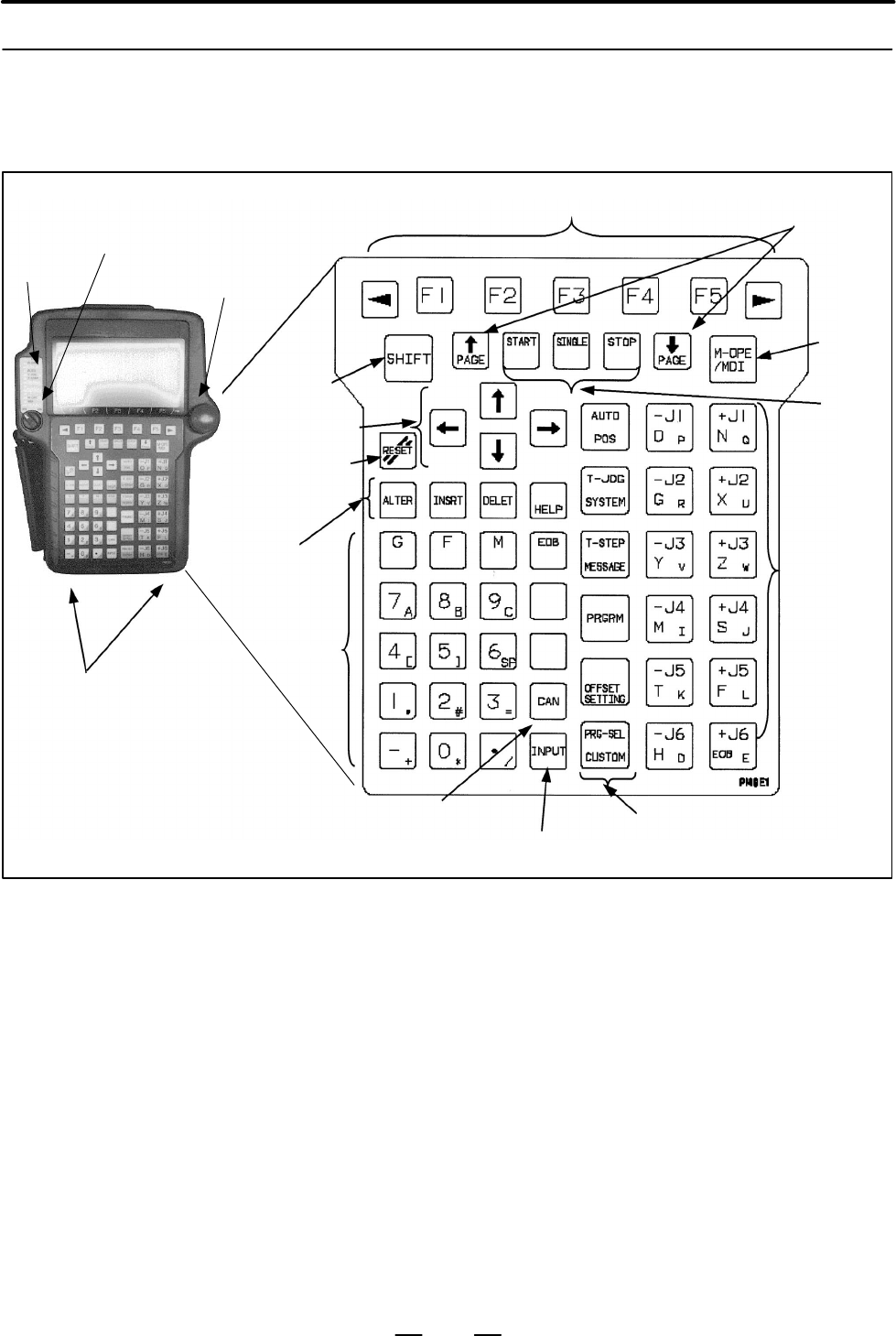

Figs. 2.1.2 shows the HANDY OPERATOR’S Panel Standard key

(English).

1 M–OPE/

MDI

Change

key

2 RESET Key

3 Soft key

4 Address/numeric key

5 JOG/

Address key

6 Shift key

7 INPUT Key

8 Cancel key

9 Function key

10 START,

SINGLE,

STOP key

11 Edit key

12 Cursor move key

13 Page key

14 Emergency stop button

15 Dead man’s switch

16 Dead man’s switch enable switch

17 LED

Fig. 2.1.2 Handy operator’s panel standard key (English)

Handy Operator’s Panel has the two kinds of modes ”MDI mode” and

”Machine Operation mode” for controls it.

These modes can be exchanged each other by pressing the key of

”M–OPE/MDI” on Handy Operator’s Panel.

This mode is used the Handy Operator’s Panel as a display unit. This

operation method is same as CRT/MDI, but some functions are not

available. (Refer to. 2.1.3 RESTRICTED ITEMS). The key have two

characters on there keytop upper and under, the under character on the

keytop is effective.

2.1.2

Handy Operator’s

Panel

D MDI mode
