B-65272EN/04 FANUC AC SPINDLE MOTOR αiT SERIES 9.NOTES ON MOTOR INSTALLATION

- 199 -

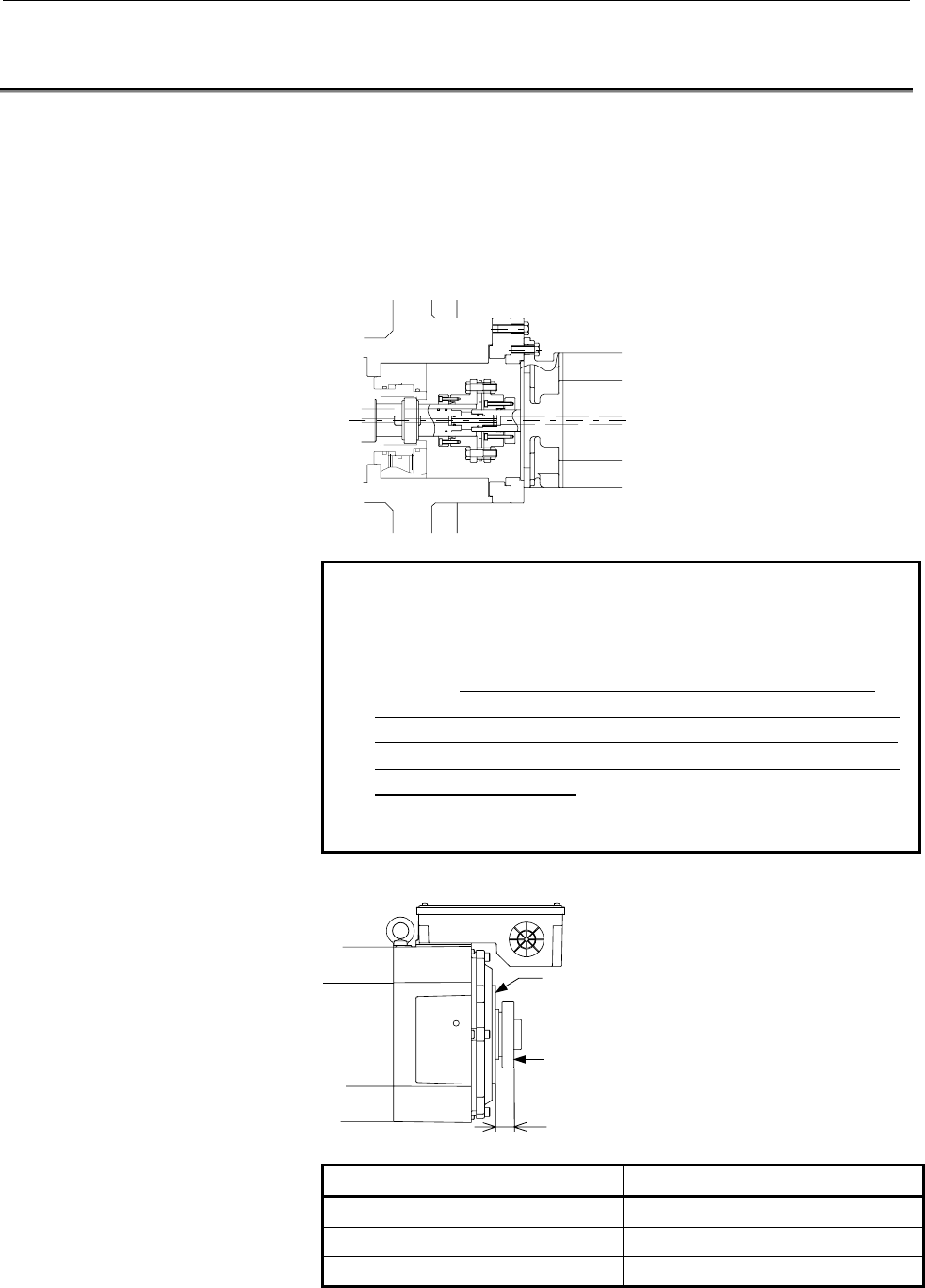

9.4 COUPLING SELECTION

Select a coupling that does not apply a thrust load onto the motor

shaft for a cause such as coolant pressure when the temperature rises

or cutting is performed. When attaching a coupling to the motor shaft,

do not strike the coupling so that no shock load is applied to the

bearing.

(Example of using a disk coupling)

NOTE

If a gear coupling or Oldham coupling is used, the

motor shaft can be left pushed into the inside of the

motor when the motor shaft is inserted into the

spindle. So, measure the distance (L in the figure

below) between the mounting face for a rotation joint

support housing and the flinger rear end face before

and after insertion, and check that the two measured

values are identical. Particularly when a gear

coupling is used, the gear section (closed section)

needs to have an air vent.

(Reference)

Mounting face for a rotation

oint support housing

Flinger rear end face

Motor model End face distance L

α1.5iT

(17)

α2iT to α3iT

(18)

α6iT to α22iT

(22)
