136

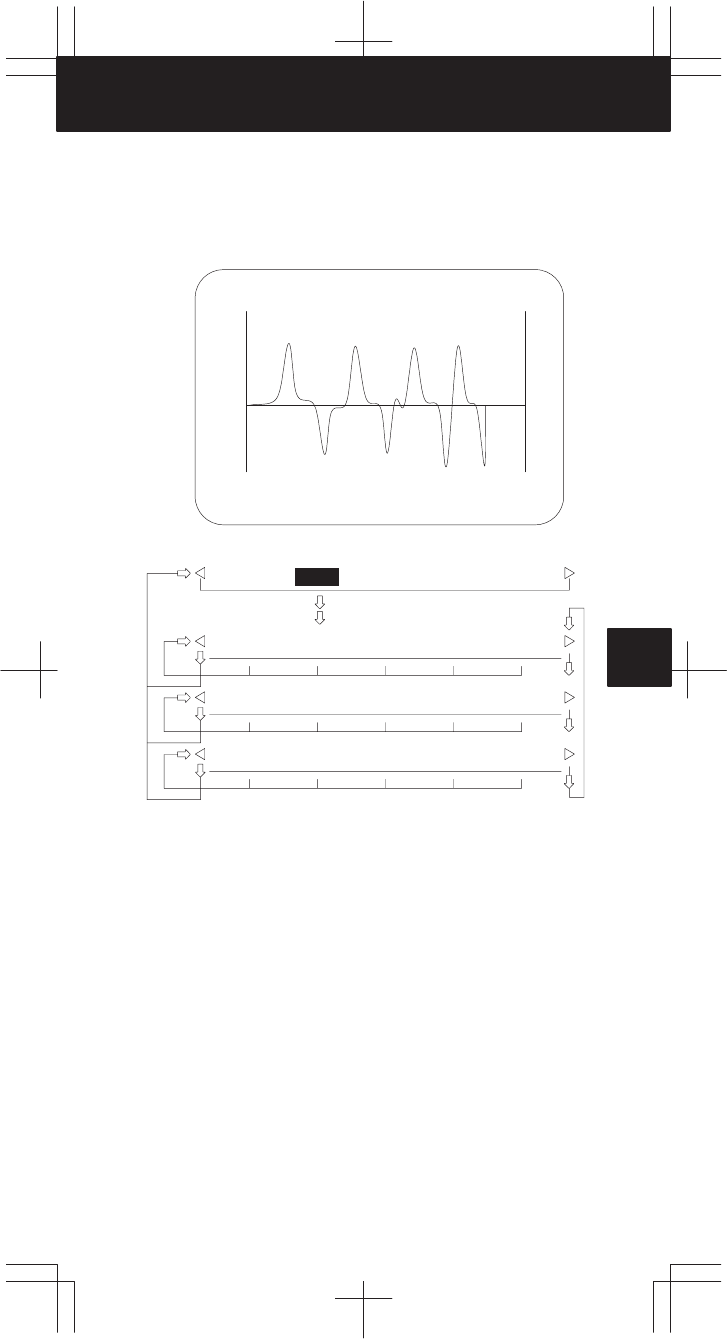

4 Press the [START] soft key.

In the upper-left part of the screen, the words NOT READY

blink, indicating that saved data is still being read. Once the

saved data has been read, waveform display is started. The

display in the upper-left part of the screen changes from NOT

READY to the date on which the data was saved.

START

[][][][][]

TIME³²TIME H–DOBL H–HALF

WAVE DIAGNOS. (GRAPHIC)

CH1 DATE = 97/01/13 12:15:00

O1234 N12345

CH2

EDIT **** *** ***

W.PRM

[][][][][]

W.GRPH W.MEM

Press

START

[][][][][]

TIME³²TIME H–DOBL H–HALF

START

[][][][][]

CH–1° CH–1± V–DOBL V–HALF

START

[][][][][]

CH–2° CH–2± V–DOBL V–HALF

Fig. 1 Soft Key Display

[START] : Plots the waveform of the object being analyzed.

[TIME³] : Shifts the CH-1/CH-2 waveform to the right.

[²TIME] : Shifts the CH-1/CH-2 waveform to the left.

[H-DOBL] : Increases the horizontal width of the CH-1/CH-2 waveform by

a factor of 2.

[H-HALF] : Reduces the horizontal width of the CH-1/CH-2 waveform by a

factor of 2.

[CH-1°] : Shifts the CH-1 zero point level up.

[CH-1±] : Shifts the CH-1 zero point level down.

[V-DOBL] : Increases the height of the CH-1/CH-2 waveform by a factor of

[V-HALF] : Reduces the height of the CH-1/CH-2 waveform by a factor of

[CH-2°] : Shifts the CH-2 zero point level up.

[CH-2±] : Shifts the CH-2 zero point level down.
