B-63782EN/01 NC FUNCTIONS 7.COORDINATE SYSTEM

- 97 -

- Example 2

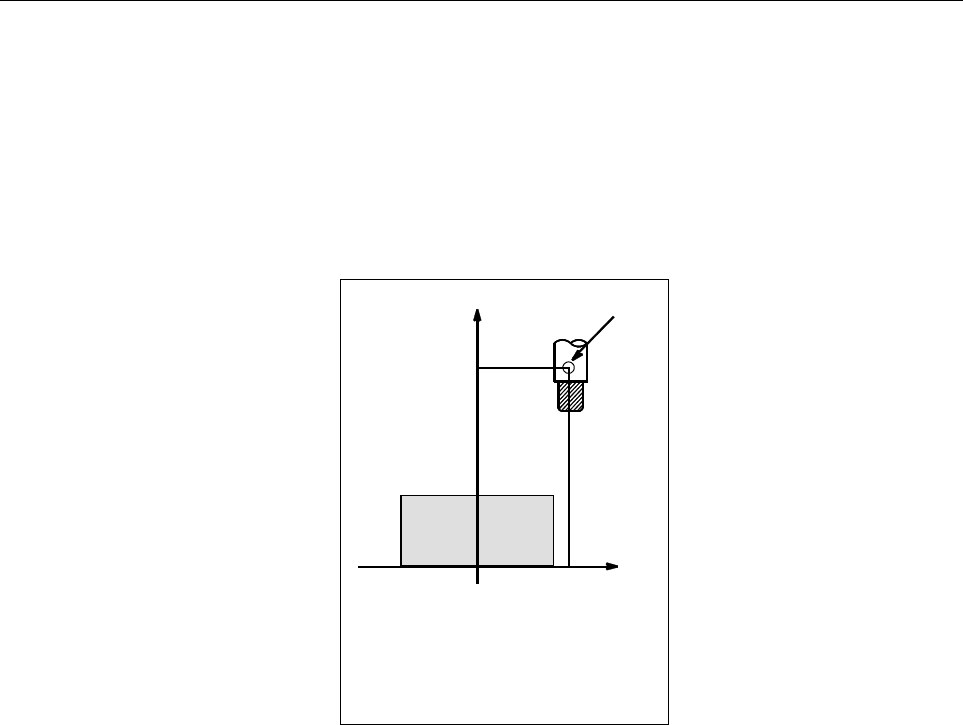

Set the reference point on the tool holder or turret as shown in the

figure below, then specify G92 at the beginning of the program. By

specifying an absolute command in this condition, the reference point

is moved to a specified position.

To move the tool tip to a specified position, compensate the distance

between the reference point and the tool tip by using tool length

compensation.

600.0

Reference

osition

1200.0

G92 X60.0 Z1200.0 ;

Setting the start point at a given

reference point on the tool

holde

When a new workpiece coordinate system is created by specifying G92,

it is determined so that a given point on the tool has a given coordinate

value.

So, there is no need to be concerned with old workpiece coordinate

systems.

Particularly when the start point for machining is determined based on

the workpiece, the G92 command is useful. In this case, a desired

coordinate system can newly be created even if an old workpiece

coordinate system is invalid.
