22.6.3 Block Restart
The block restart function makes it possible to restart automatic
operation at the start point or another point of the block in which
automatic operation was interrupted due to an error such as tool
breakage.
- Manual operation with the block return switch turned on
Move the tool in the continuous manual feed mode toward the start
point of
the interrupted block while the block return switch is on. The tool
automatically stops at the start point. When the start point is reached
for all axes, the message RSTR disappears from the bottom of the
screen.
- Restart of automatic operation with the block return switch turned on
If the cycle start button is pressed while the block return switch is on,
the tool length compensation value and the cutter compensation value
are recalculated, and automatic operation is restarted toward the
compensated end point from the current position.

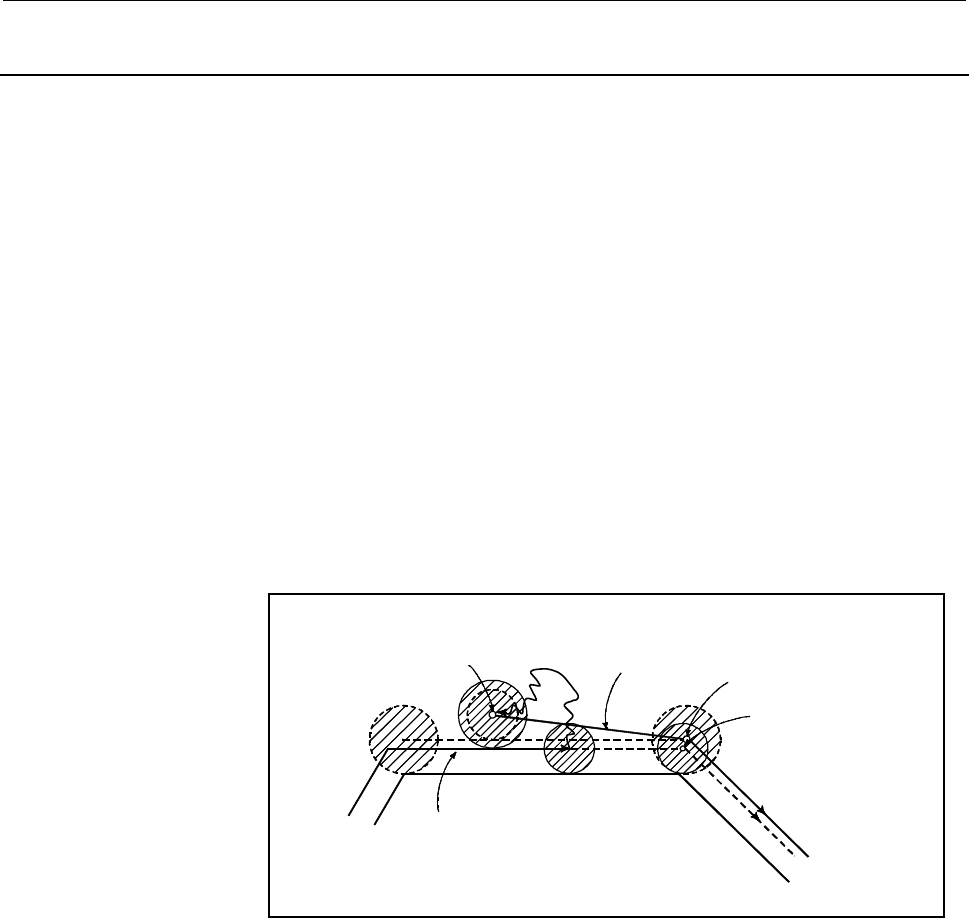

The tool is retracted to this
position so the tool can be
replaced.
Path after automatic
operation is restarted
Newly calculated end point
Target end point prior
to interruption
Path prior to interruption
