Series 15i/150i - Model B Descriptions Page 297

Descriptions
B-63782EN/01 NC FUNCTIONS 20.AXIS CONTROL FUNCTIONS
- 279 -
20.13 AUTOMATIC PHASE MATCHING FUNCTION WITH
ELECTRONIC GEAR BOX
In the EGB (electronic gear box), when synchronization start or
cancellation is specified, synchronization is not started or canceled
immediately. Instead, acceleration/deceleration is executed first.
Therefore, synchronization can be started or canceled while the spindle
is rotating.
At synchronization start, automatic phase matching is performed such
that the workpiece-axis position matches the position corresponding to
the spindle one-rotation signal. With this matching, the same operation
is performed as synchronization start caused by a one-rotation signal in
hobbing synchronization when using the conventional functions of a
hobbing machine.
The spindle corresponds to the EGB master axis and the workpiece axis
corresponds to an EGB slave axis.

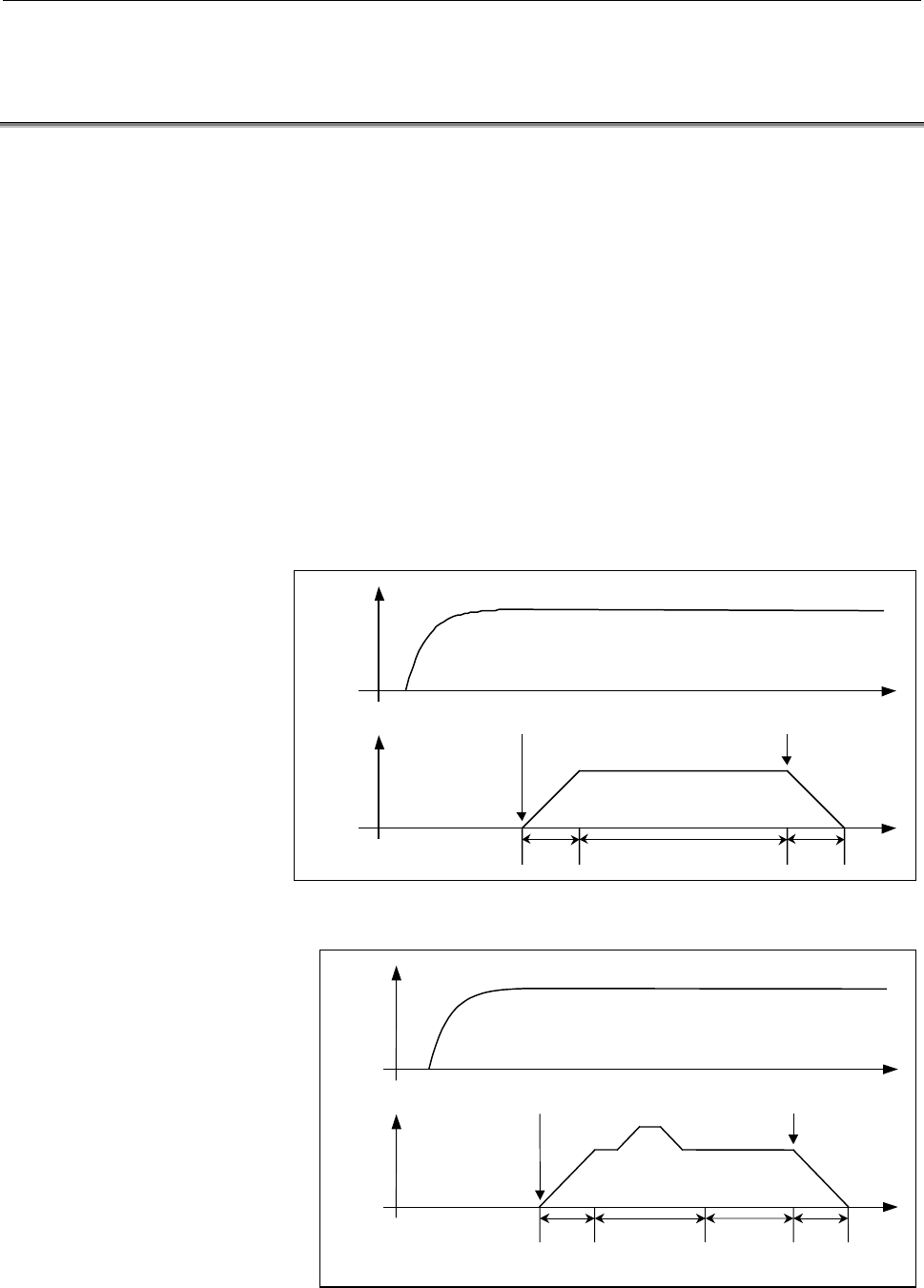

Format
- Acceleration/deceleration type
- Acceleration/deceleration plus automatic phase matching type
Synchronization cancel command
Synchronization start command
Workpiece
axis speed
Synchronous
state
Acceleration
Deceleration
Automatic
p
hase matchin
g
Spindle
speed
Synchronization
cancellation command
Synchronization start command
Workpiece-
axis speed
Synchronization
state
Acceleration
Dec eler ation
Spindle
speed
