5.FEED FUNCTION NC FUNCTIONS B-63782EN/01
- 80 -
5.4.3 Optimum Torque Acceleration/Deceleration
This function enables acceleration/deceleration in accordance with the
torque characteristics of the motor and the characteristics of the
machines due to its friction and gravity. Usually, because of the friction
and gravity of the machine, the torque characteristics of the motor, and
other factors, the acceleration/deceleration performance that is attainable
(referred to as the limited acceleration/deceleration curve) is not
symmetrical with respect to the line separating the low- and high-speed
portions. This function enables acceleration/deceleration in such a way
that in positioning, the actual acceleration curve follows the limited
acceleration curve as closely as possible. This makes the most of the
capability of the motor, reducing positioning time.
By setting limited acceleration curve data for each axis using the
appropriate parameter, this function performs linear type positioning
with acceleration/deceleration on the basis of limited acceleration curve
data in the state in which look-ahead acceleration/deceleration is
effective.
Speed
Tim e Acceleration
Speed
Move comm and after
acceleration/deceleration
: P attern sym m etric al w ith respect to the
line separating acceleration and
deceleration portions
A ctua l ac celera tion
curve
Lim ited accelera tio n
curve

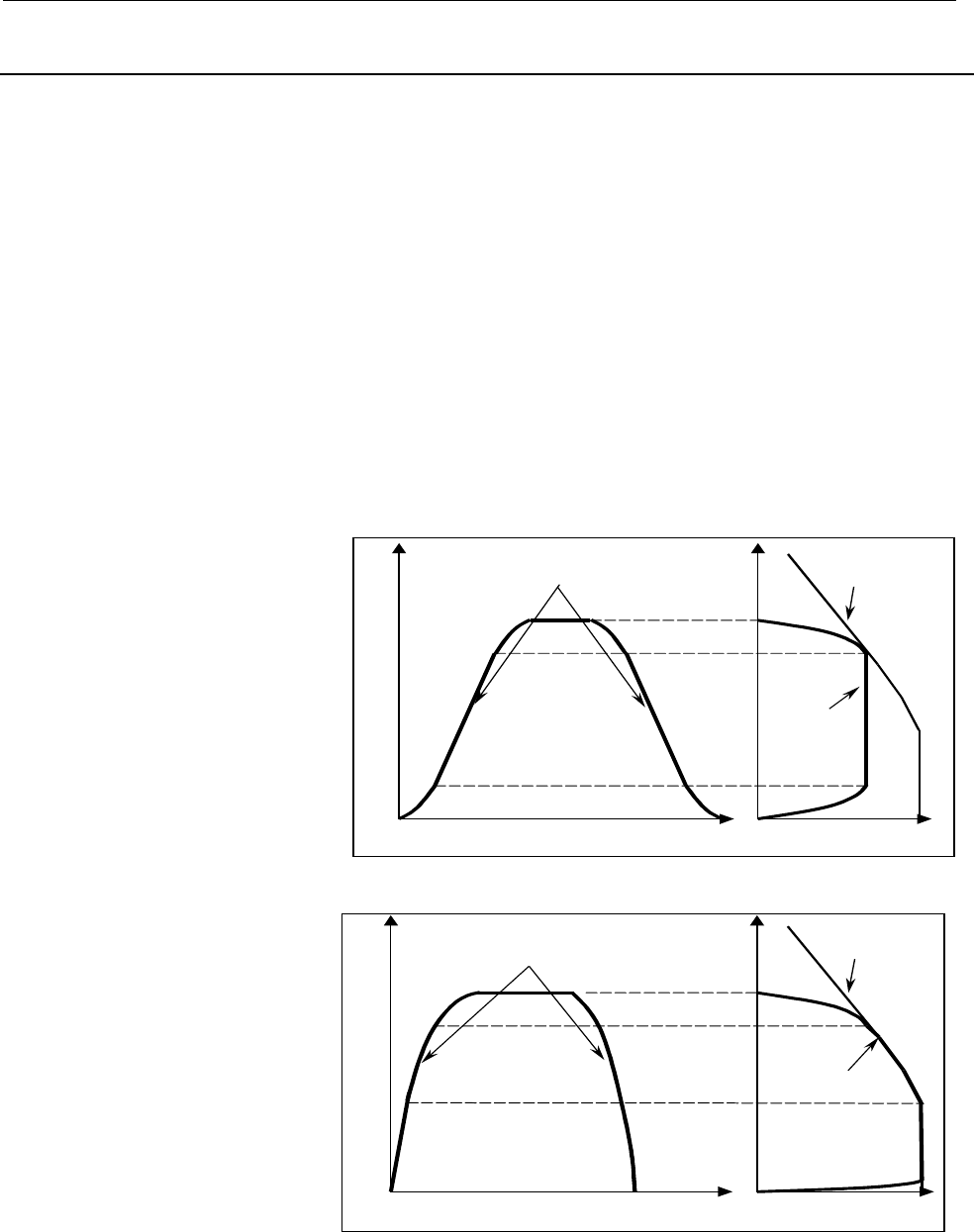

Fig. 5.4.3 (a) Conventional bell-shaped acceleration/declaration
Speed
Tim e
Acceleration
Speed
Actual acceleration
curve
Move com m and after
acceleration/deceleration
: Acceleration/deceleration curve
following lim ited acceleration curve
Lim ited
acceleration curve
Fig. 5.4.3 (b) Acceleration/deceleration with this function where the actual
acceleration curve follows the limited acceleration curve
