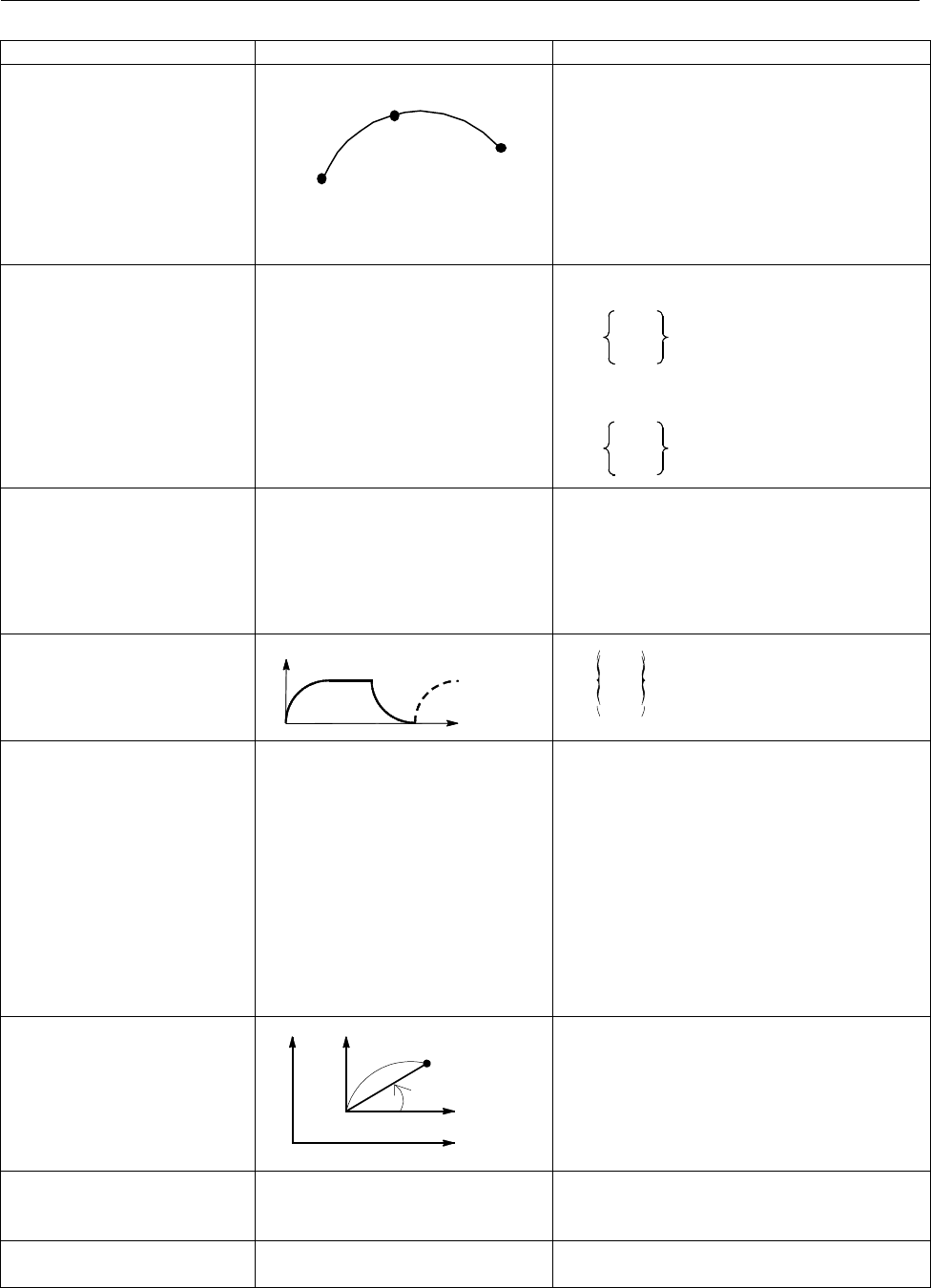

B.LIST OF FUNCTION AND TAPE FORMAT APPENDIX B-63782EN/01
- 410 -
Functions Illustration Tape format
Helical interpolation
(G02, G03)
St ar t
point
(x
1
y
1
z
1
)
Intermediate point
(x
2
y
2
z
2
)
End point
α
,
β
: Any axis other than circular interpolation axes.
X
p_ Yp_ Zp_
α
_
β
_ ; (Intermediate point)G02.4
X
p_ Yp_ Zp_
α
_
β
_ ; (End point)
or
X
p_ Yp_ Zp_
α
_
β
_ ; (Intermediate point)G03.4
X
p_ Yp_ Zp_
α
_
β
_ ; (End point)
Dwell (G04)
Per second dwell
G04
X
_
;
P_
Per revolution dwell
G04
X
_
;
P_
Cylindrical interpolation (G07.1)
G07 IP_ R_ ; Cylindrical interpolation
R : Radius of cylinder
G07 IP0 ; Cylindrical interpolation
cancel
Exact stop (G09)
Velocity
Time
G09 IP_ ;
P
G01
G02
G03
Change of offset value by
program (G10)
Tool offset memory A
G10 L11 P_ R_ ;
Tool offset memory B
G10 L11 P_ R_ ; (Wear offset value)
G11 L11 P_ R_ ; (Geometry offset value)
Tool offset memory C
G10 L10 P_ R_ ; (Wear offset value/H)
G10 L11 P_ R_ ; (Geometry offset value/H)
G10 L12 P_ R_ ; (Wear offset value/D)
G10 L13 P_ R_ ; (Geometry offset value/D)
Workpiece zero point offset value
G10 L2 P_ IP_ ;
Polar coordinate (G15, G16)
Y
p
Xp
Yp
Xp
Local coordinate
Workpiece coordinate syste
m
G17 G16 Xp_ Yp_ ;
G18 G16 Zp_ Xp_ ;
G19 G16 Yp_ Zp_ ;
G15 ; Cancel
Plane section
(G17, G18, G19)
G17 Xp_ Yp_ ;
G18 ;Zp_ Xp_
G19 Yp_ Zp_ ;
Inch/millimeter conversion
(G20, G21)
G20 ; Inch input
G21 ; Millimeter input
