22.AUTOMATIC OPERATION NC FUNCTIONS B-63782EN/01

- 300 -

22.6 AUTOMATIC OPERATION RESART

22.6.1 Program Restart

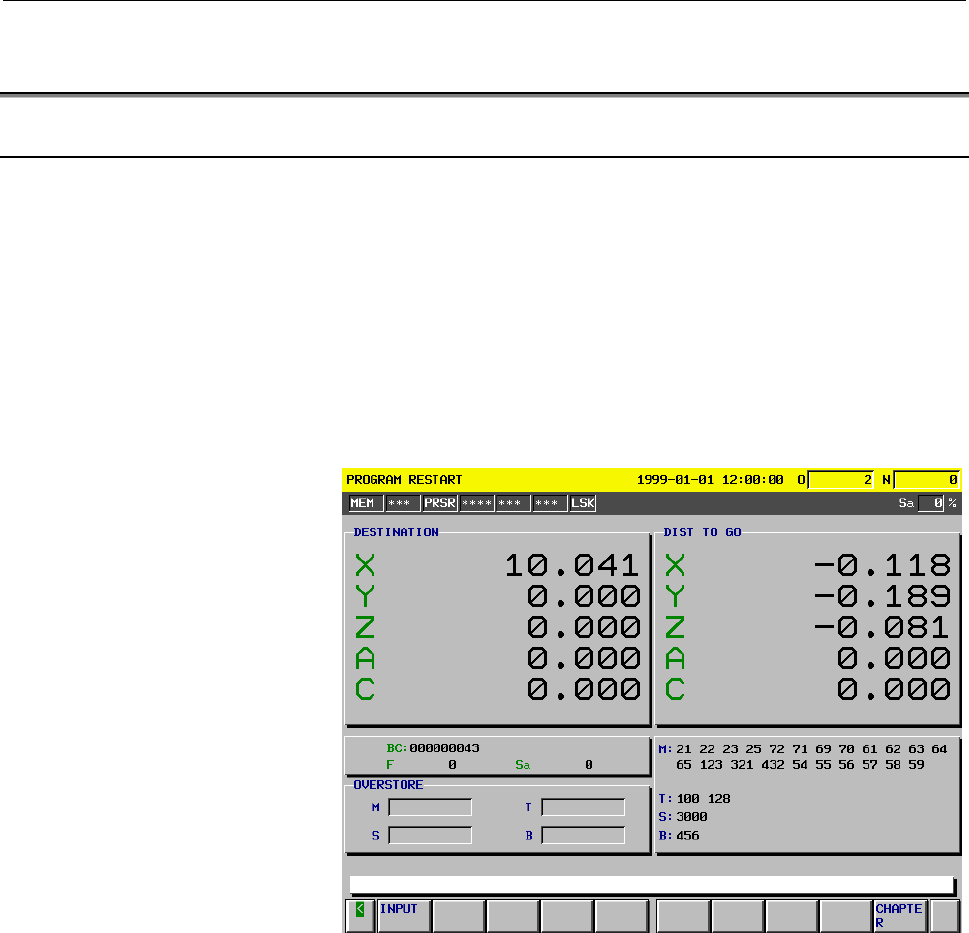

This function specifies Sequence No. of a block (number of blocks

between the top of the program and the block to be restarted) to be

restarted when a tool is broken down or when it is desired to restart

machining operation after a day off, and restarts the machining

operation from that block. It can also be used as a high-speed program

check function.

There are two restart methods: the P-type method and Q-type method.

P TYPE : Operation can be restarted anywhere. This restart method is

used when operation is stopped because of a broken tool.

Q TYPE : Before operation can be restarted, the machine must be

moved to the programmed start point (machining start point)
