B-63782EN/01 NC FUNCTIONS 3.INTERPOLATION FUNCTION

- 31 -

3.1 POSITIONING (G00)

Explanation

The G00 command moves a tool to the position in the workpiece

system specified with an absolute or an incremental command at a

rapid traverse rate.

In the absolute command, coordinate value of the end point is

programmed.

In the incremental command the distance the tool moves is

programmed.

Either of the following tool paths can be selected according to

parameter.

- Nonlinear interpolation positioning

The tool is positioned with the rapid traverse rate for each axis

separately. The tool path is normally straight.

- Linear interpolation positioning

The tool path is the same as in linear interpolation (G01). The tool

is positioned within the shortest possible time at a speed that is not

more than the rapid traverse rate for each axis.

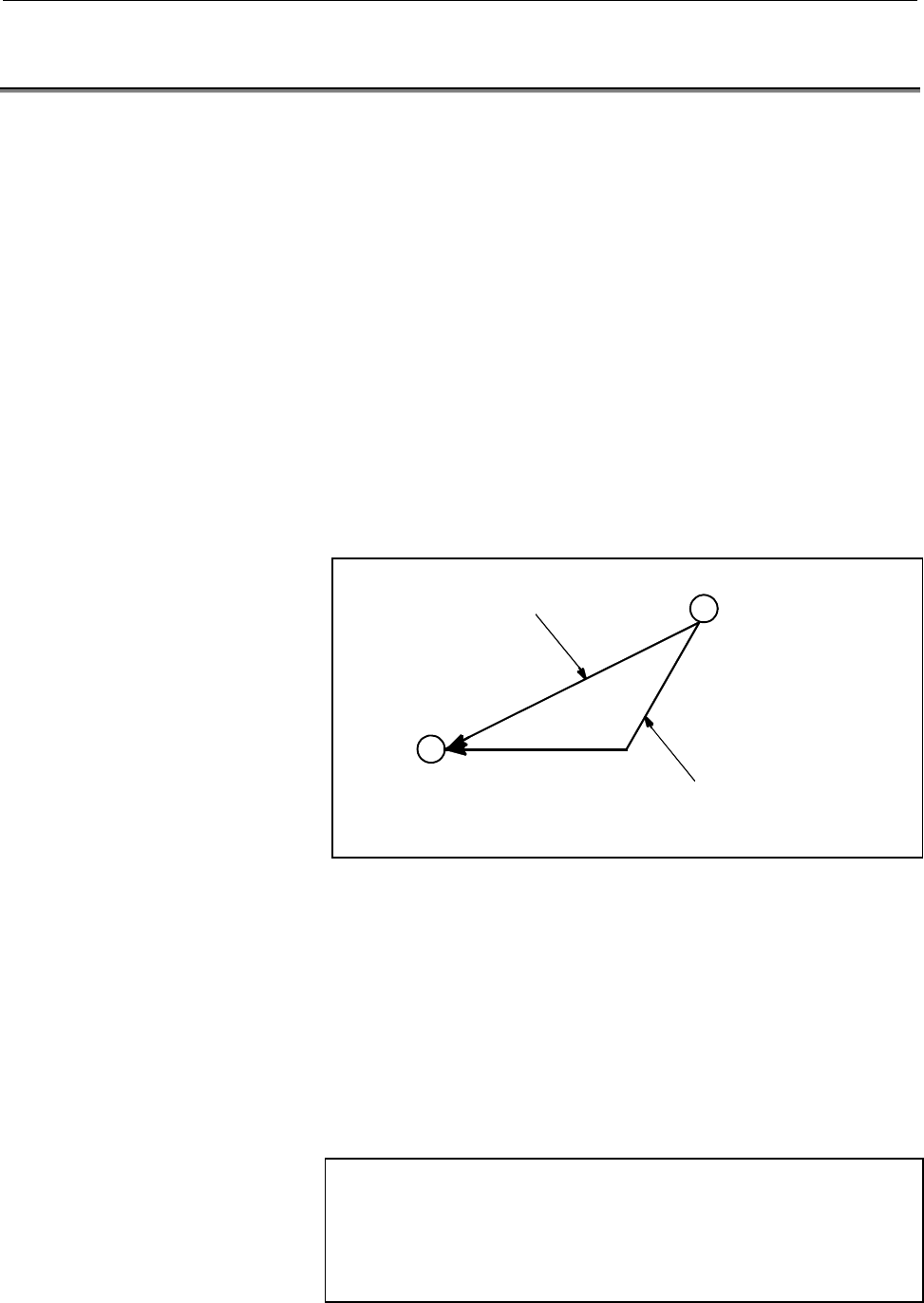

Fig.3.1 (a) Tool path

In the positioning mode actuated by G00, the tool is accelerated to a

predetermined speed at the start of a block and is decelerated at the end

of a block. Execution proceeds to the next block after confirming the

in-position.

"In-position " means that the feed motor is within the specified range.

In-position check for each block can be disabled by setting parameter

accordingly.

Format

G00 IP_ ;

IP_ : For an absolute command, the coordinates of an

end position, and for an incremental commnad,

the distance the tool moves.

End position

Non linear interpolation positioning

Start position

Linear interpolation positioning
