PROGRAMMING

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63524EN/01

188

NOTE

If the depth of cut for each cutting feed (Q) is not

commanded, normal drilling is performed. (See the

description of the drilling cycle.)

If depth of cut is not specified for each drilling, the normal drilling cycle

is used. The tool is then retracted from the bottom of the hole in rapid

traverse.

M (a+1), P2

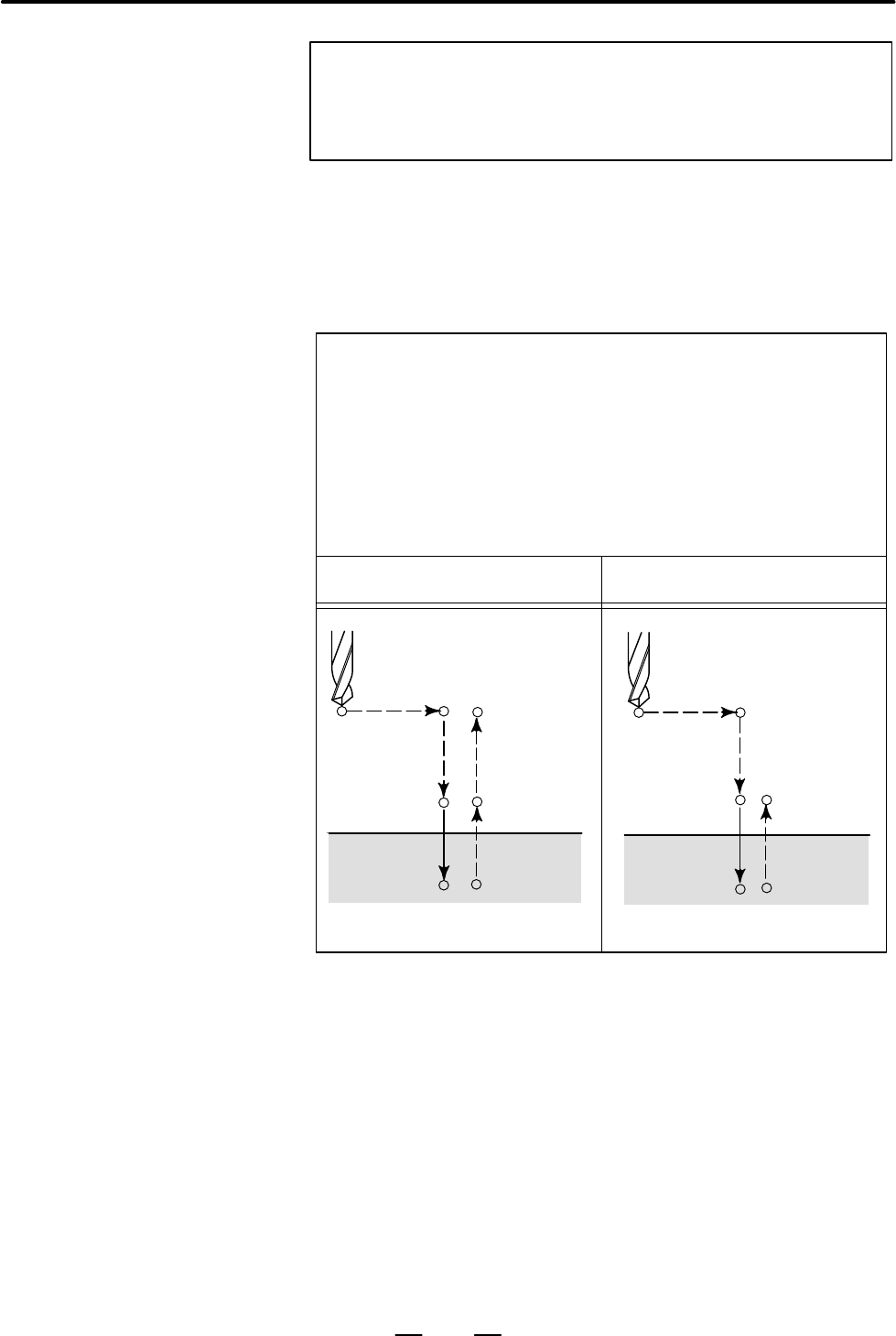

G83 or G87 (G98 mode) G83 or G87 (G99 mode)

G83 X(U)_ C(H)_ Z(W)_ R_ P_ F_ K_ M_ ;

G87 Z(W)_ C(H)_ X(U)_ R_ P_ F_ K_ M_ ;

Initial level

Point R level

X_ C_ or Z_ C_ : Hole position data

Z_ or X_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feedrate

K_ : Number of repeats (When it is needed.)

M_ : M code for C–axis clamp (When it is needed.)

Mα

M (a+1), P2

Point Z

Point R level

Mα : M code for C–axis clamp

M(a+1) : M code for C–axis unclamp

P1 : Dwell specified in the program

P2 : Dwell specified in parameter No. 5111

D Drilling cycle

(G83 or G87)

Format
