Series 16i/18i/160i/180i - TB Operators manual Page 73

Operators manual
PROGRAMMING
B–63524EN/01
4. INTERPOLATION FUNCTIONS
47

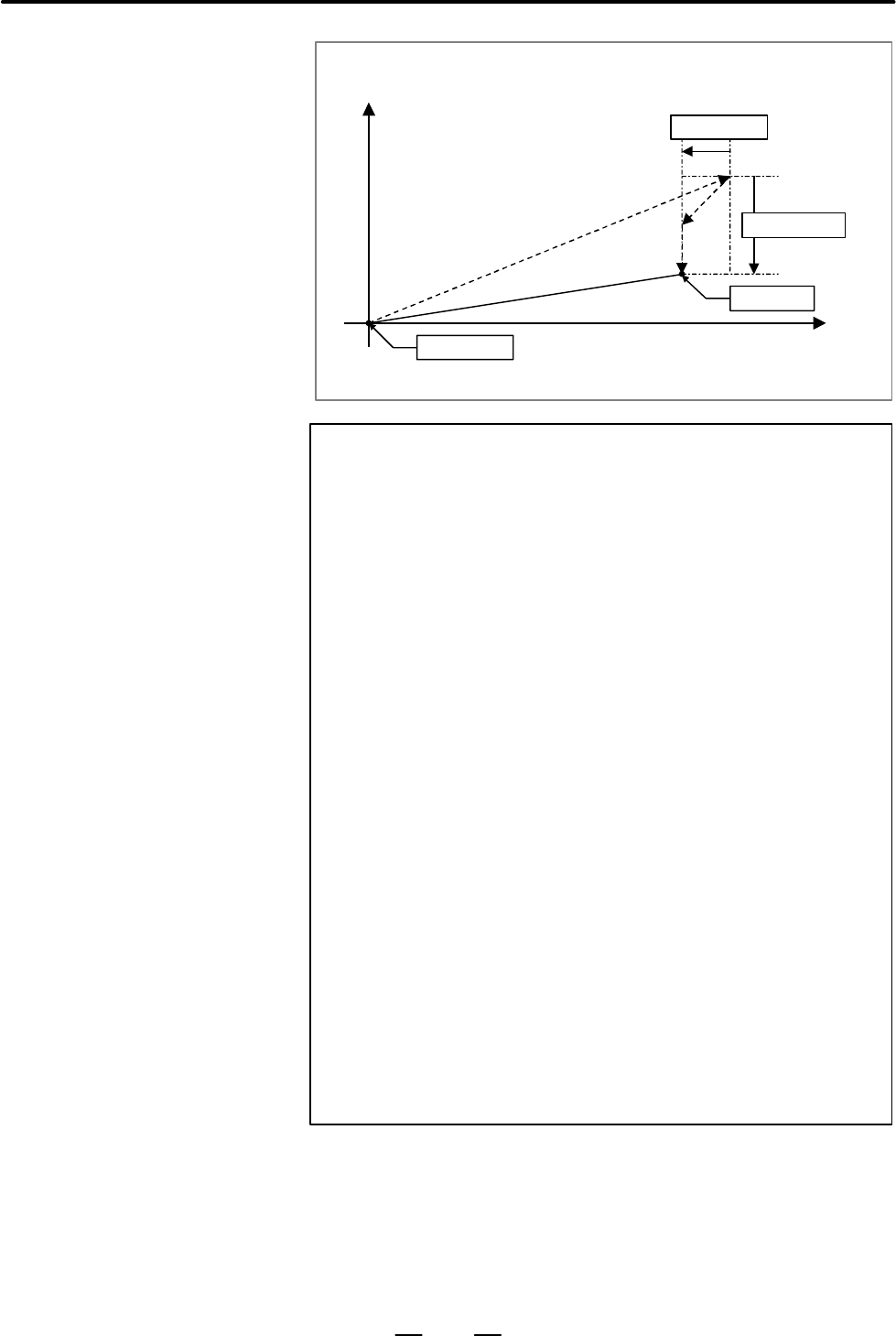

End position
Start position
Overrun(X–axis)
Overrun(Z–axis)
Z
X
NOTE
1 Single direction positioning is not performed in an axis for
which an overrun has not been set by the parameter
(No.5440).
2 When the move distance 0 is commanded, the single
direction positioning is not performed.
3 The mirror image does not influence direction set by the
parameter.
The direction does not change during mirror image.
4 The G–code for single direction positioning is always G60,
if G–code system is A or B or C in all case.
5 The single direction positioning can not be commanded
during the cylindrical interpolation mode (G07.1).
6 The single direction positioning can not be commanded
during the polar coordinate interpolation mode (G12.1).
7 The single direction positioning can not be commanded
during the multiple repetitive cycle (G70–G76).
8 The single direction positioning can not be commanded
during the canned grinding cycle (G71–G74).
9 No single direction positioning is effected in the drilling or
patting axis, during canned cycle for drilling (G83–G89)
and the rigid tapping (G84, G88). But the single direction
positioning is effected in the drilling or patting axis.
10 The single direction positioning can not be commanded
during the canned cycle (G90, G92, G94).
11 During the single direction positioning mode (G60), the
following G–code can not be commanded.
G07.1, G12.1, G70–G76, G90–G94.
